SHAFT DRIVE
4-109
* Apply shaft drive gear oil (Part No.: 9079E-SH002-00)
14 Coupling gear nut 1
15 Coupling gear 1
16 Bearing retainer 1 Left-hand threads
17 Oil seal 1
18 Final drive pinion gear 1
19 Bearing 1
20 Final drive pinion gear shim
Refer to “ALIGNING THE FINAL DRIVE
PINION GEAR AND RING GEAR” on page
4-116.
21 Final drive pinion gear bearing 1
22 Ring gear bearing 1
23 Oil seal 1
24 Collar 1
25 Final gear case 1
For assembly, reverse the disassembly pro-
cedure.
Disassembling the final drive assembly

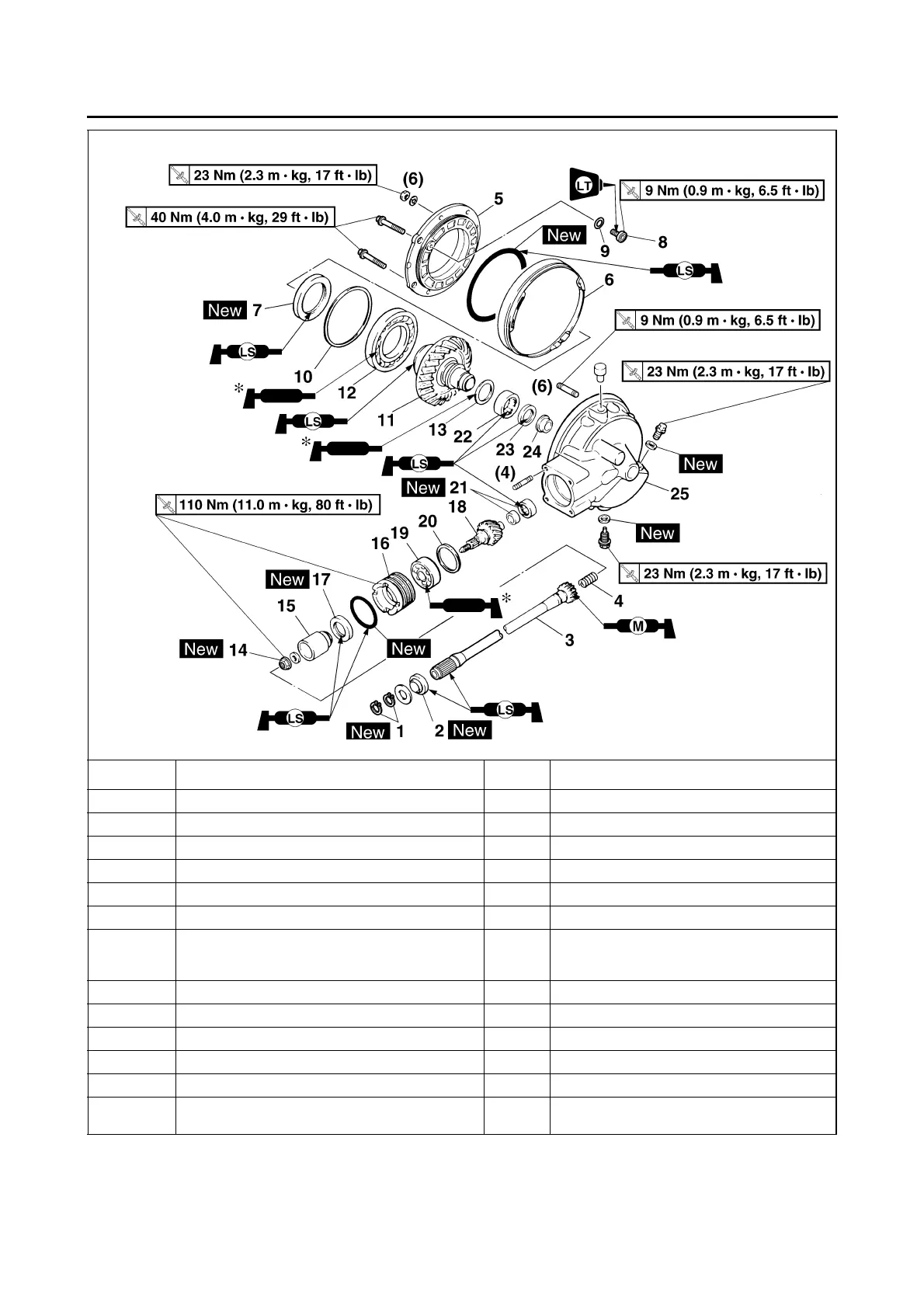

Order Job/Parts to remove Q’ty Remarks
