Yamaha FJR1300A(D) - Page 310

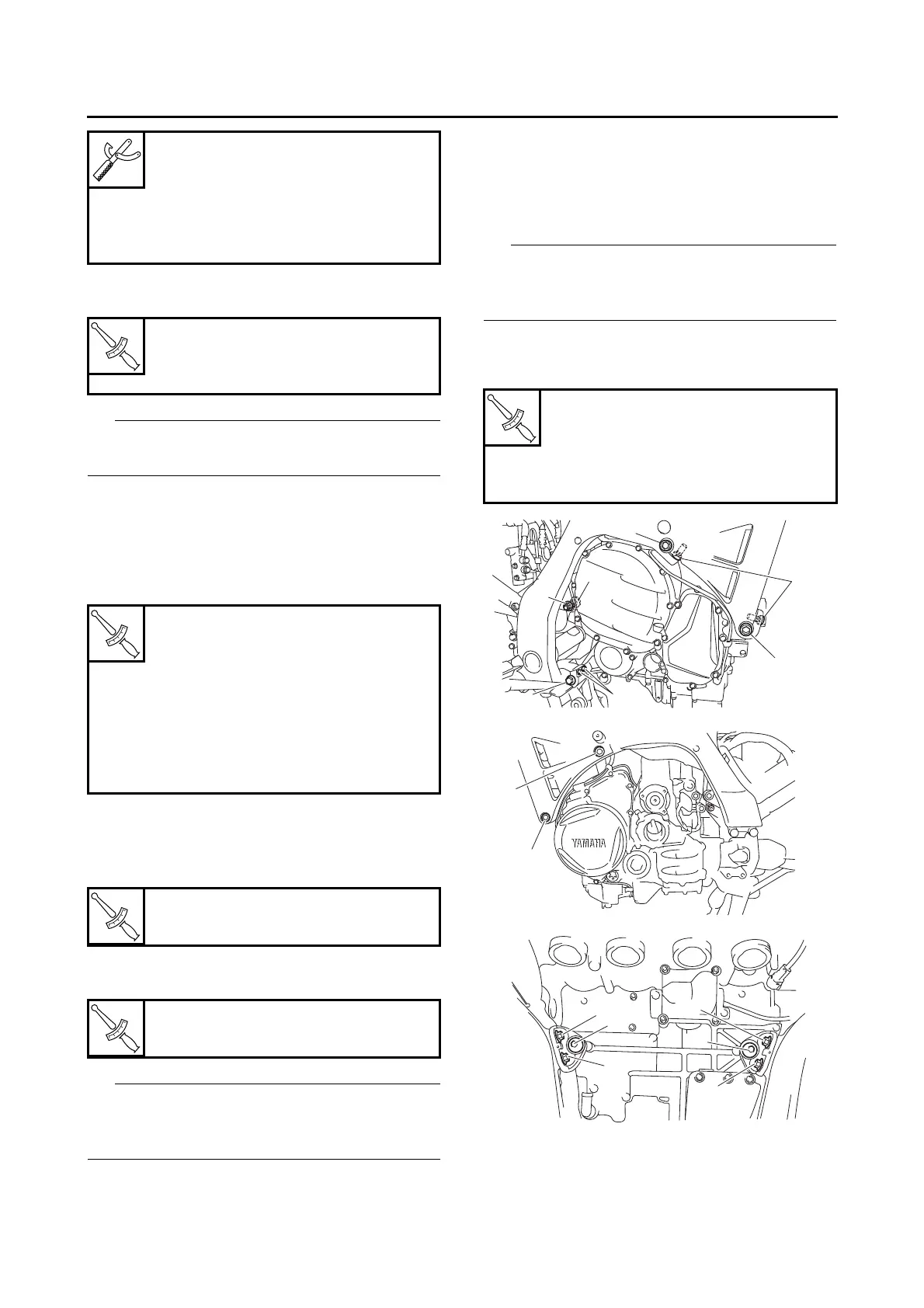

ENGINE REMOVAL
5-9
6. Tighten:
• Engine mounting nut (rear upper side) “12”
TIP
Lubricate the engine mounting nut (rear upper
side) threads with engine oil.
7. Tighten:
• Engine mounting bolt (left front lower side) “6”
• Engine mounting bolt (right front upper side)
“8”
• Engine mounting bolt (right front lower side)
“9”
8. Install:
• Engine bracket and engine bolts (top) “13”
9. Tighten:
• Pinch bolts (front side) “10”
10.Tighten:
• Pinch bolts (rear lower side) “11”
TIP
Tighten the pinch bolts (rear lower side) one at a
time, making sure to tighten the first bolt again
after tightening the second bolt.
11.Tighten:
• Engine bracket and engine bolts (top) “13”
(temporarily tighten)
• Engine bracket bolts (top) “14”
(temporarily tighten)
TIP
When temporarily tightened, the bolts “13” and
“14” should be flat against the engine and frame
surface.
12.Tighten:
• Engine bracket and engine bolts (top) “13”
• Engine bracket bolts (top) “14”
Pivot shaft wrench
90890-01471
Frame spanner socket
YM-01471
Pivot shaft wrench adapter
90890-01476
T
R
.
.
Engine mounting nut (rear upper
side)
45 Nm (4.5 m·kg, 32 ft·lb)
T
R
.
.
Engine mounting bolt (left front
lower side)
49 Nm (4.9 m·kg, 35 ft·lb)
Engine mounting bolt (right front
upper side)
49 Nm (4.9 m·kg, 35 ft·lb)
Engine mounting bolt (right front
lower side)
49 Nm (4.9 m·kg, 35 ft·lb)
T
R
.
.
Pinch bolt (front side)
24 Nm (2.4 m·kg, 17 ft·lb)
T
R
.
.
Pinch bolt (rear lower side)
24 Nm (2.4 m·kg, 17 ft·lb)
T
R
.
.
Engine bracket and engine bolt
(top)
37 Nm (3.7 m·kg, 27 ft·lb)
Engine bracket bolt (top)
16 Nm (1.6 m·kg, 11 ft·lb)
9
11
4
8
12
1
10
5
6
13
13
14
14
14
14
