ENGINE REMOVAL
5-10

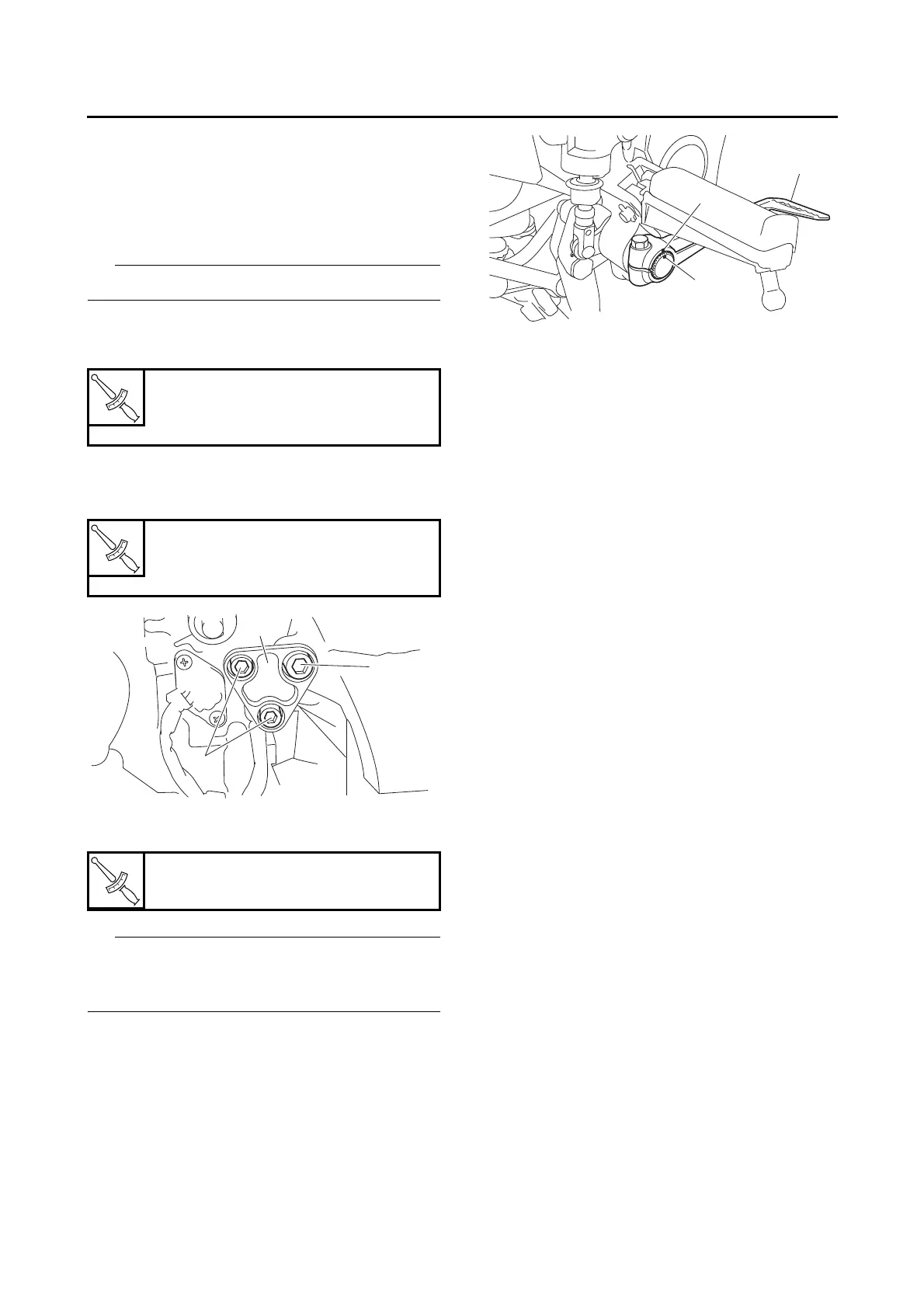

13.Install:
• Engine bracket (left rear side) “1”
• Engine bracket and frame bolt (left rear side)
“2”
• Engine bracket and engine bolts (left rear
side) “3”
TIP
Do not fully tighten the bolts.
14.Tighten:
• Engine bracket and frame bolt (left rear side)
“2”
15.Tighten:
• Engine bracket and engine bolts (left rear
side) “3”
16.Install:
• Brake pedal “1”
TIP
Align the punch mark “a” on the brake pedal with
the punch mark “b” on the brake pedal pivot
shaft.
T
R
.
.
Engine bracket and frame bolt
(left rear side)
32 Nm (3.2 m·kg, 23 ft·lb)
T
R
.
.
Engine bracket and engine bolt
(left rear side)
16 Nm (1.6 m·kg, 11 ft·lb)
T
R
.
.
Brake pedal pinch bolt
8 Nm (0.8 m·kg, 5.8 ft·lb)
3
2
1
a
b
