CRANKCASE
5-84
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲

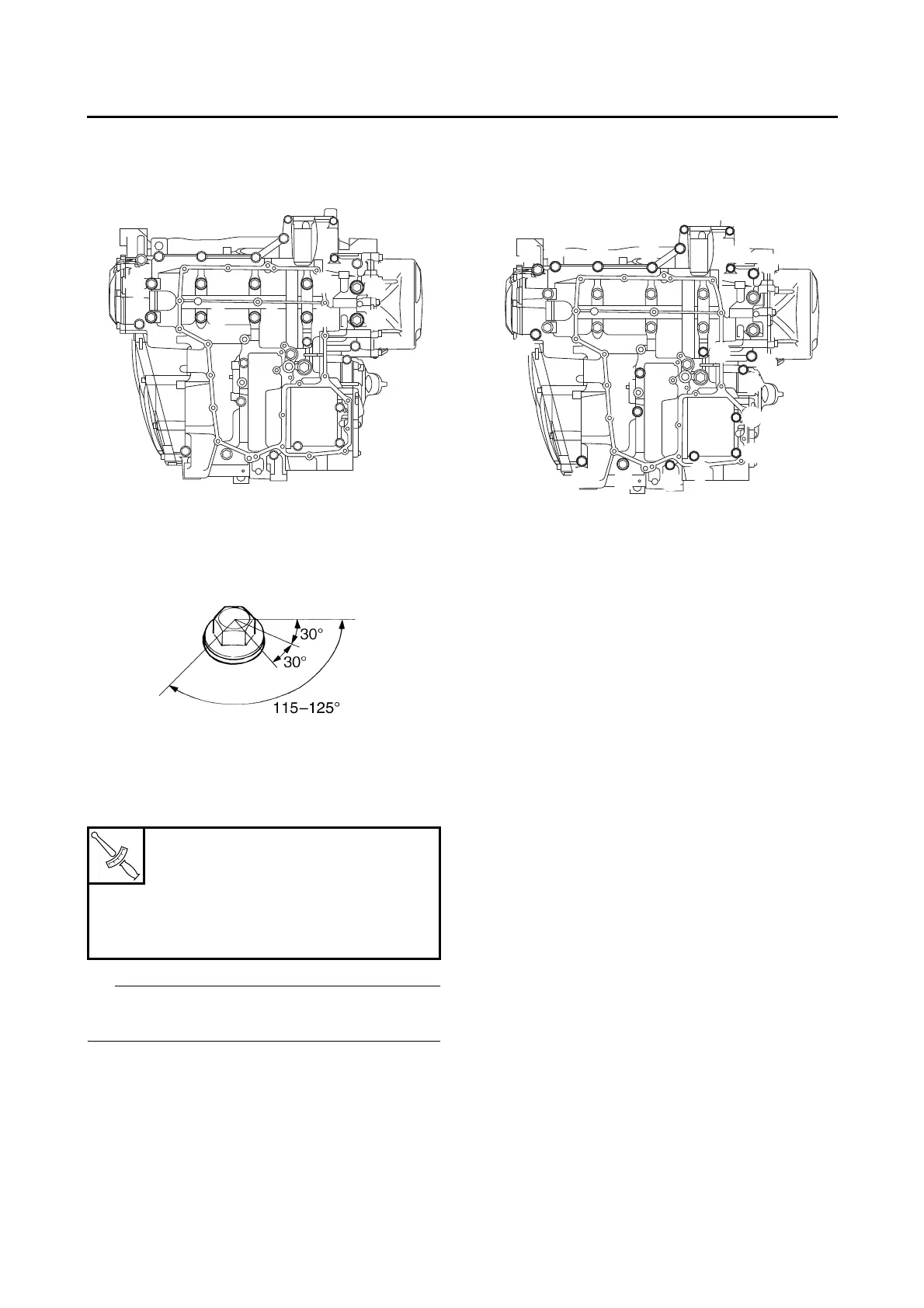

8. Tighten:
• Crankcase bolts “11”–“31”
TIP
Tighten the crankcase bolts in the proper tight-
ening sequence as shown.
T
R
.
.
Crankcase bolt “11”, “12”
24 Nm (2.4 m·kg, 17 ft·lb)
Crankcase bolt “13”, “14”
12 Nm (1.2 m·kg, 8.7 ft·lb)
Crankcase bolt “15”–“31”
10 Nm (1.0 m·kg, 7.2 ft·lb)
9
8
3
6
1
2
5
4
7
10
13
21
18
15
16
17
20
19
22
14
24
29
30
23
25
31
28
26
27
11
12
