CONNECTING RODS AND PISTONS
5-85
ET3P61027
CONNECTING RODS AND PISTONS

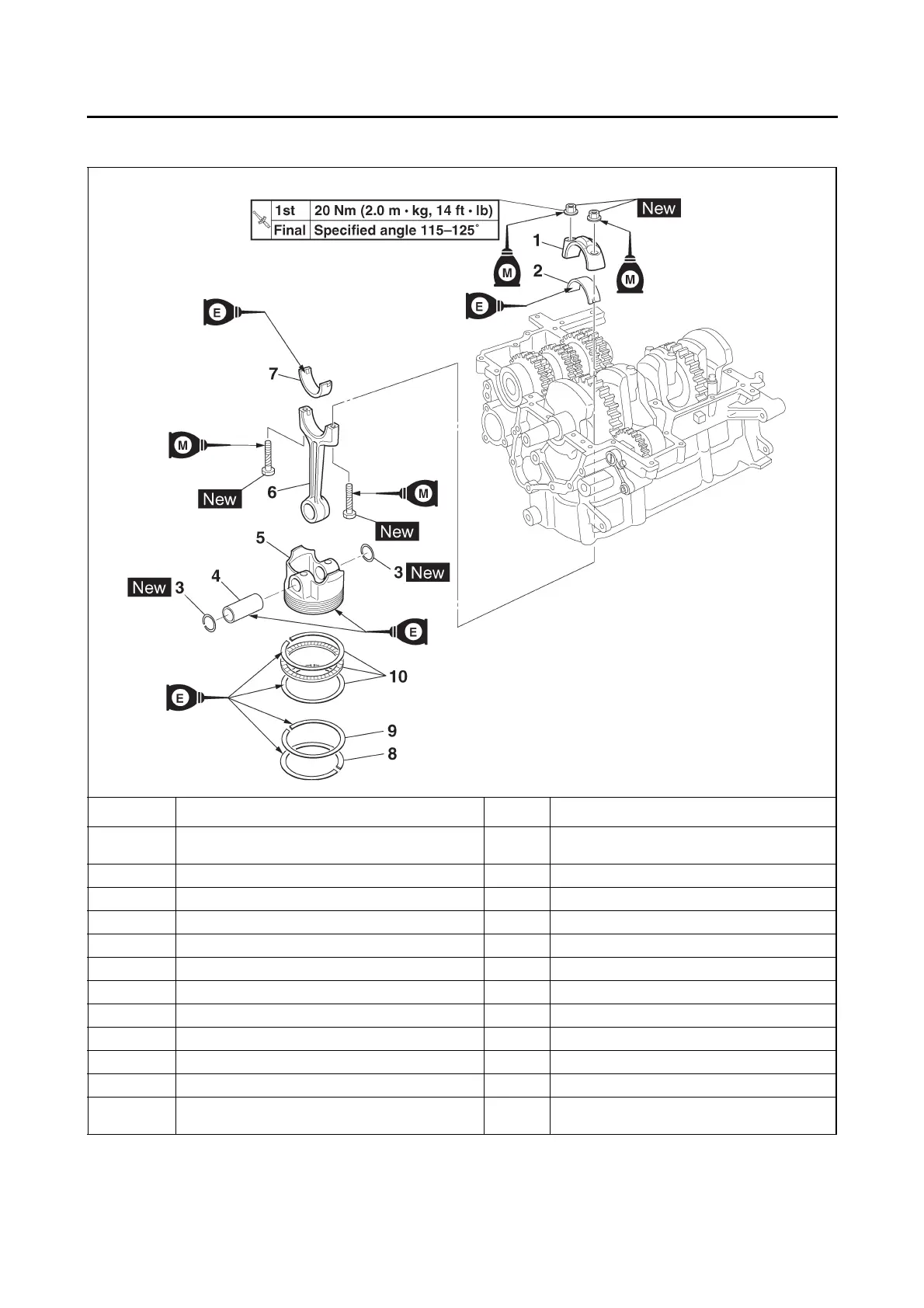

Removing the connecting rods and pistons
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-77.
1 Connecting rod cap 4
2 Big end lower bearing 4
3 Piston pin clip 8
4 Piston pin 4
5Piston 4
6 Connecting rod 4
7 Big end upper bearing 4
8Top ring 4
9 2nd ring 4
10 Oil ring 4
For installation, reverse the removal proce-
dure.
To Next Page
