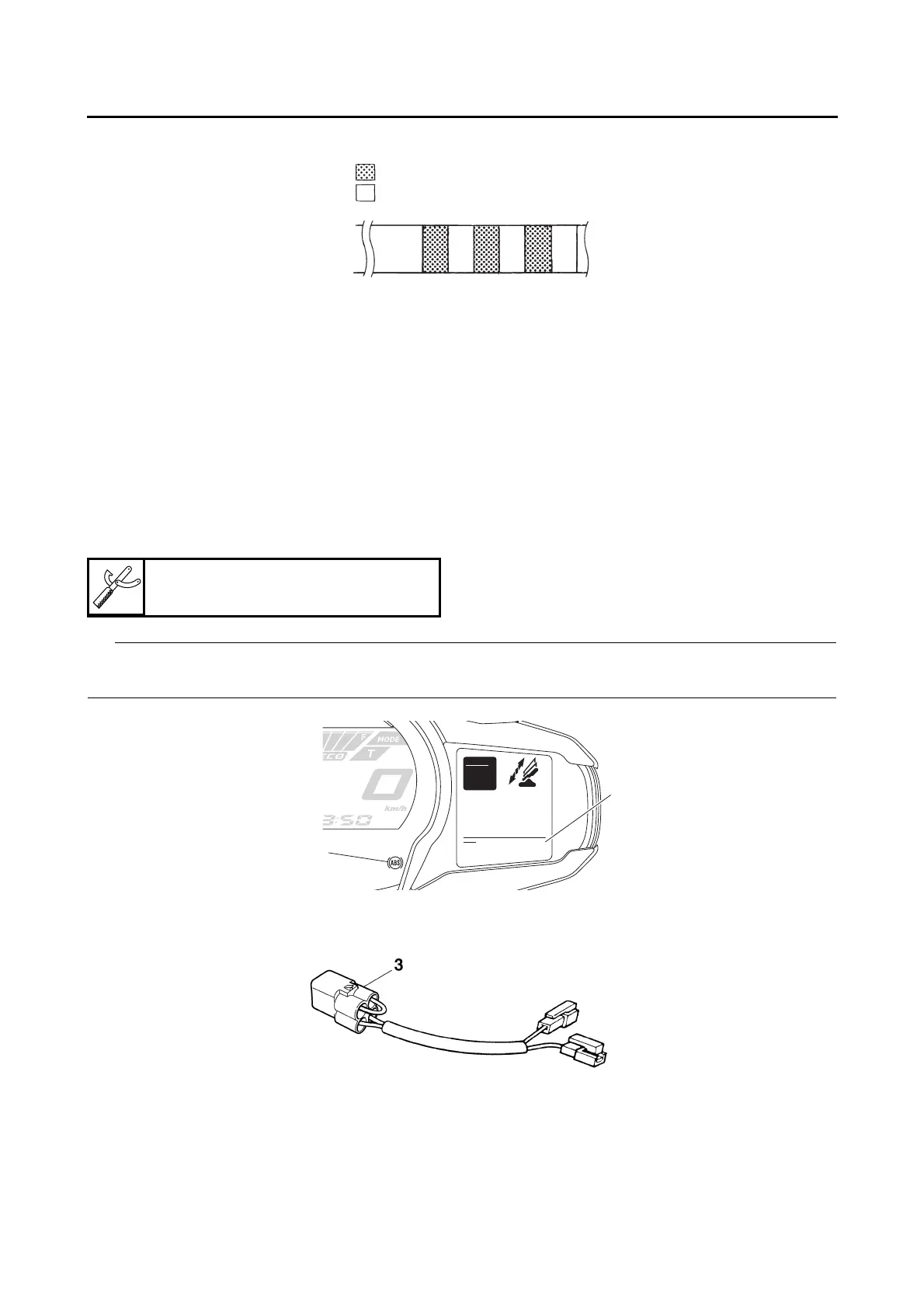

5. The ABS warning light “1” flashes and a fault code “2” is indicated on the multi-function meter right
display when the test coupler adapter “3” is connected to the ABS test coupler “4” for troubleshooting
the ABS.
The ABS test coupler can be accessed by removing the right upper inner panel.
When the test coupler adapter is connected to the ABS test coupler, the ABS warning light starts
flashing and the multi-function meter right display indicates all the fault codes recorded in the ABS
ECU.
The ABS warning light comes on or flashes if the vehicle is ridden with the test coupler adapter con-
nected to the ABS test coupler.
a. ABS warning light
b. Comes on
c. Goes off
d. Unstable ABS ECU input
Test coupler adapter
90890-03149
DIAG
GEAR
N
ABS_16
