Yamaha FJR1300A(D) - Page 412

BALANCERS
5-111
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲

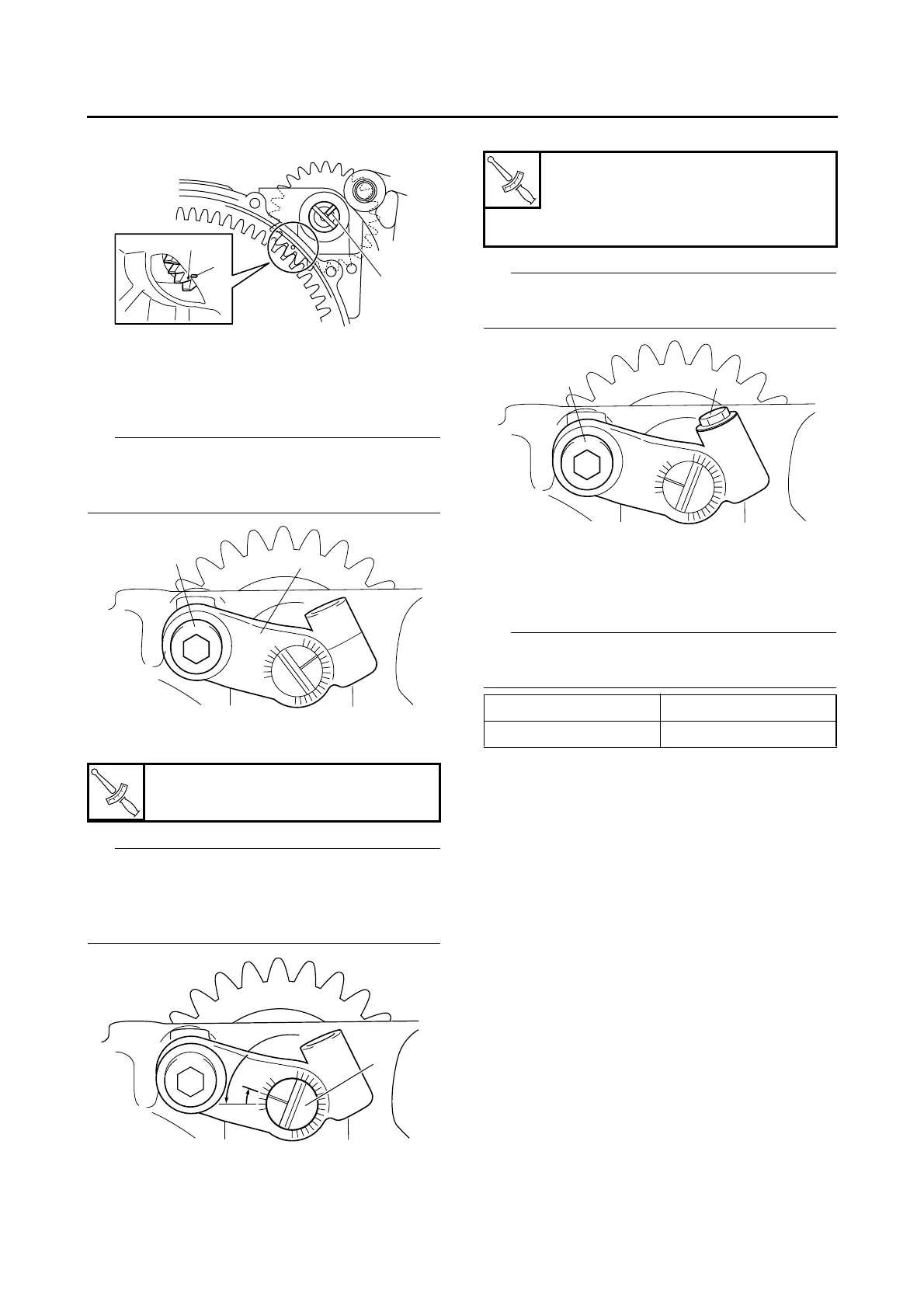

4. Install:
• Rear balancer lever “1”
• Rear balancer lever bolt “2”
TIP
• Apply locking agent (LOCTITE®) to the
threads of the balancer lever bolt.
• Temporarily tighten the balancer lever bolt.
5. Tighten:
• Rear balancer shaft “1”
TIP
Tighten the balancer shaft to the specified
torque by turning it counterclockwise, and then
turn it two marks back on the balancer lever
scale.
6. Tighten:
• Rear balancer lever bolt “1”
• Rear balancer shaft pinch bolt “2”
TIP
Make sure that the balancer shaft does not ro-
tate.
7. Start the engine and check that there is no
abnormal noise coming from the balancer
gear. If noise is abnormal, adjust the gear
lash by turning the balancer shaft.
TIP
With each adjustment, turn the balancer shaft
one scale.
T
R
.
.
Rear balancer shaft
0.4 Nm (0.04 m·kg, 0.29 ft·lb)
f
e
c
2
1
1
T
R
.
.
Rear balancer lever bolt
14 Nm (1.4 m·kg, 10 ft·lb)
Rear balancer shaft pinch bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Clockwise Gear lash decreased
Counterclockwise Gear lash increased
1
2
