AIR INDUCTION SYSTEM
7-15

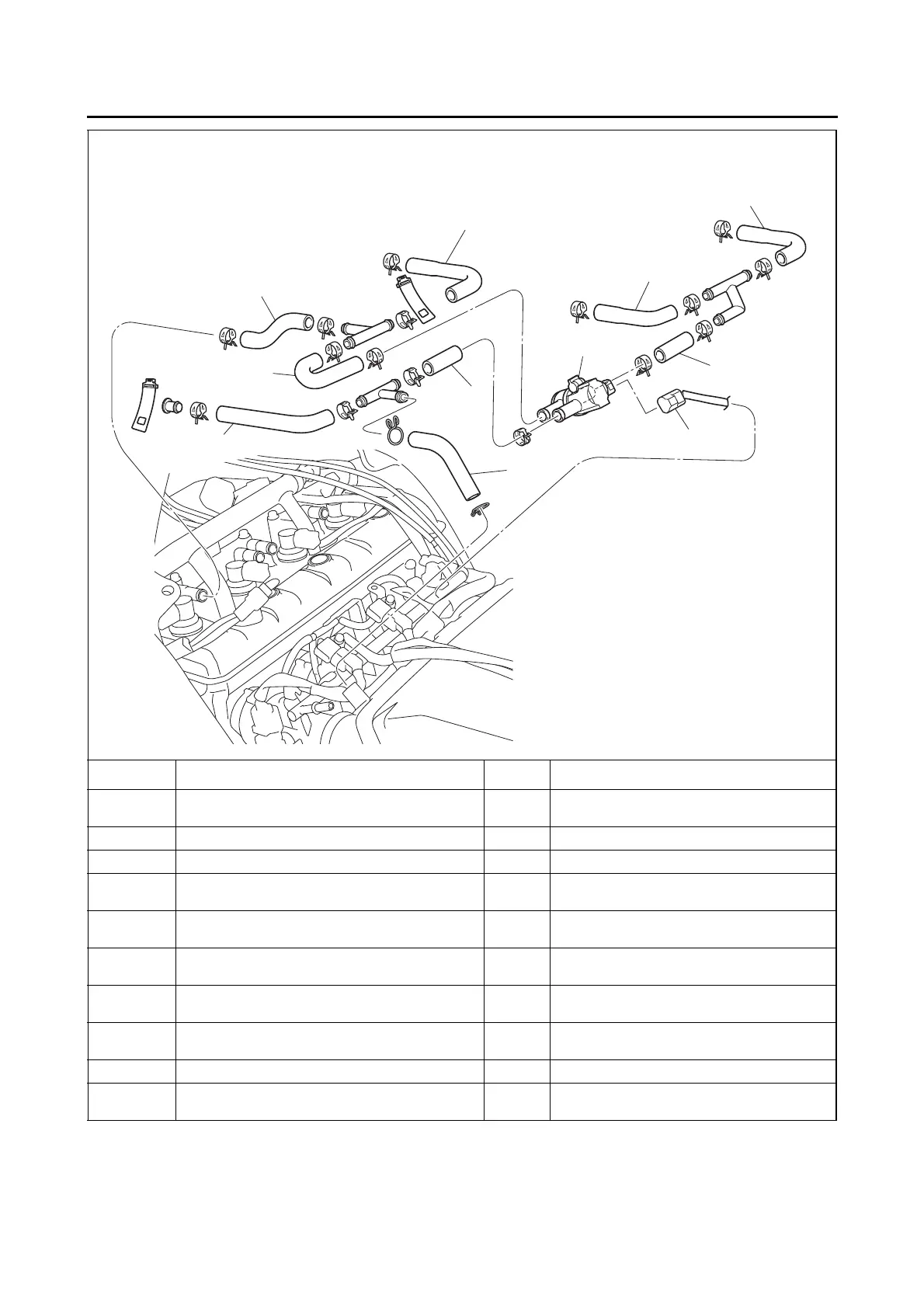

Removing the air cut-off valve
Order Job/Parts to remove Q’ty Remarks
Rider seat/T-bar
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Air induction system solenoid coupler 1 Disconnect.
2
Air induction system hose (air filter case joint
assembly to 3-way joint)
1
3
Air induction system hose (3-way joint to hose
plug)
1
4
Air induction system hose (3-way joint to air cut-
off valve)
1
5
Air induction system hose (3-way joint to reed
valve cover)
4
6
Air induction system hose (air cut-off valve to 3-
way joint)
2
7 Air cut-off valve 1
For installation, reverse the removal proce-
dure.
5
5
5
5
6
3
6
4
2
1
7
To Next Page
