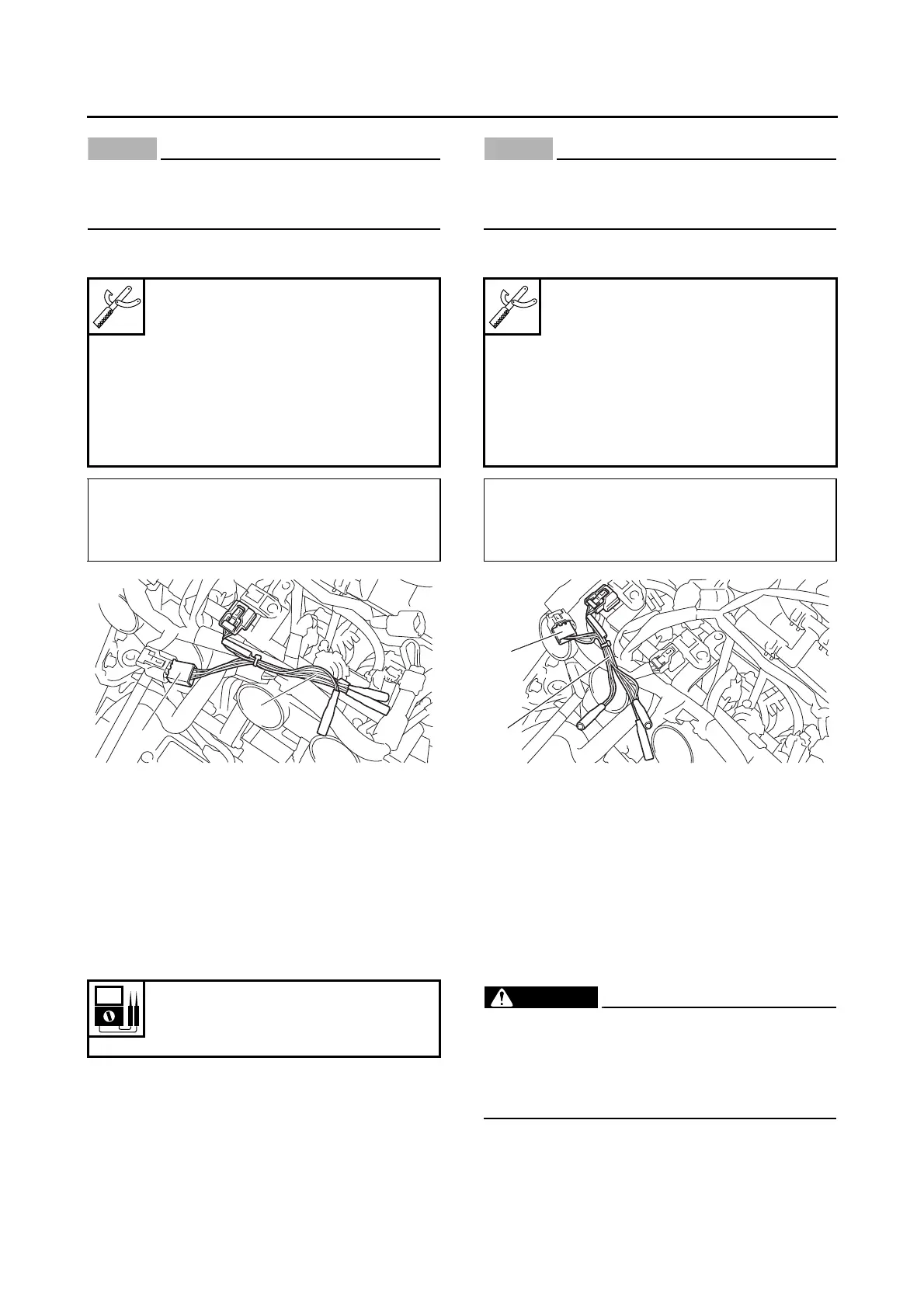

Yamaha FJR1300A(D) - Page 639

ELECTRICAL COMPONENTS
8-190
NOTICE
ECA1MC1005
Pay attention to the installing direction of the
test harness S-pressure sensor (3P) coupler
“a”.
b. Connect the digital circuit tester (DCV) to the
test harness S-pressure sensor (3P).
c. Turn the main switch to “ON”.
d. Measure the intake air pressure sensor out-
put voltage.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS1MC1021
CHECKING THE ATMOSPHERIC PRESSURE
SENSOR
1. Check:
• Atmospheric pressure sensor output voltage
Out of specification → Replace.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Connect the test harness S-pressure sensor
(3P) “1” to the atmospheric pressure sensor
and wire harness as shown.
NOTICE
ECA1MC1005
Pay attention to the installing direction of the
test harness S-pressure sensor (3P) coupler
“a”.
b. Connect the digital circuit tester (DCV) to the
test harness S-pressure sensor (3P).
c. Turn the main switch to “ON”.
d. Measure the atmospheric pressure sensor
output voltage.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS1MC1025
CHECKING THE AIR TEMPERATURE
SENSOR
1. Remove:
• Air temperature sensor
(from the windshield drive unit)
WARNING
EWA1MC1020
• Handle the air temperature sensor with
special care.
• Never subject the air temperature sensor to
strong shocks. If the air temperature sen-
sor is dropped, replace it.
2. Check:
• Air temperature sensor resistance
Out of specification → Replace.
Digital circuit tester
90890-03174
Model 88 Multimeter with ta-
chometer
YU-A1927
Test harness S- pressure sensor
(3P)
90890-03207
YU-03207
• Positive tester probe →
pink/white (wire harness color)
• Negative tester probe →
black/blue (wire harness color)
Atmospheric pressure sensor
output voltage
3.57–3.71 V
a
1
Digital circuit tester
90890-03174
Model 88 Multimeter with ta-
chometer
YU-A1927
Test harness S- pressure sensor
(3P)
90890-03207
YU-03207
• Positive tester probe →
pink (wire harness color)
• Negative tester probe →
black/blue (wire harness color)
1
a
