c. Measure the accessory box solenoid resis-
tance.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
ET3P66023
CHECKING THE GRIP WARMERS
The following procedure applies to both of the
grip warmers.
1. Check:
• Grip warmer resistance
Out of specification → Replace the grip
warmer.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Disconnect the grip warmer coupler from the
wire harness.

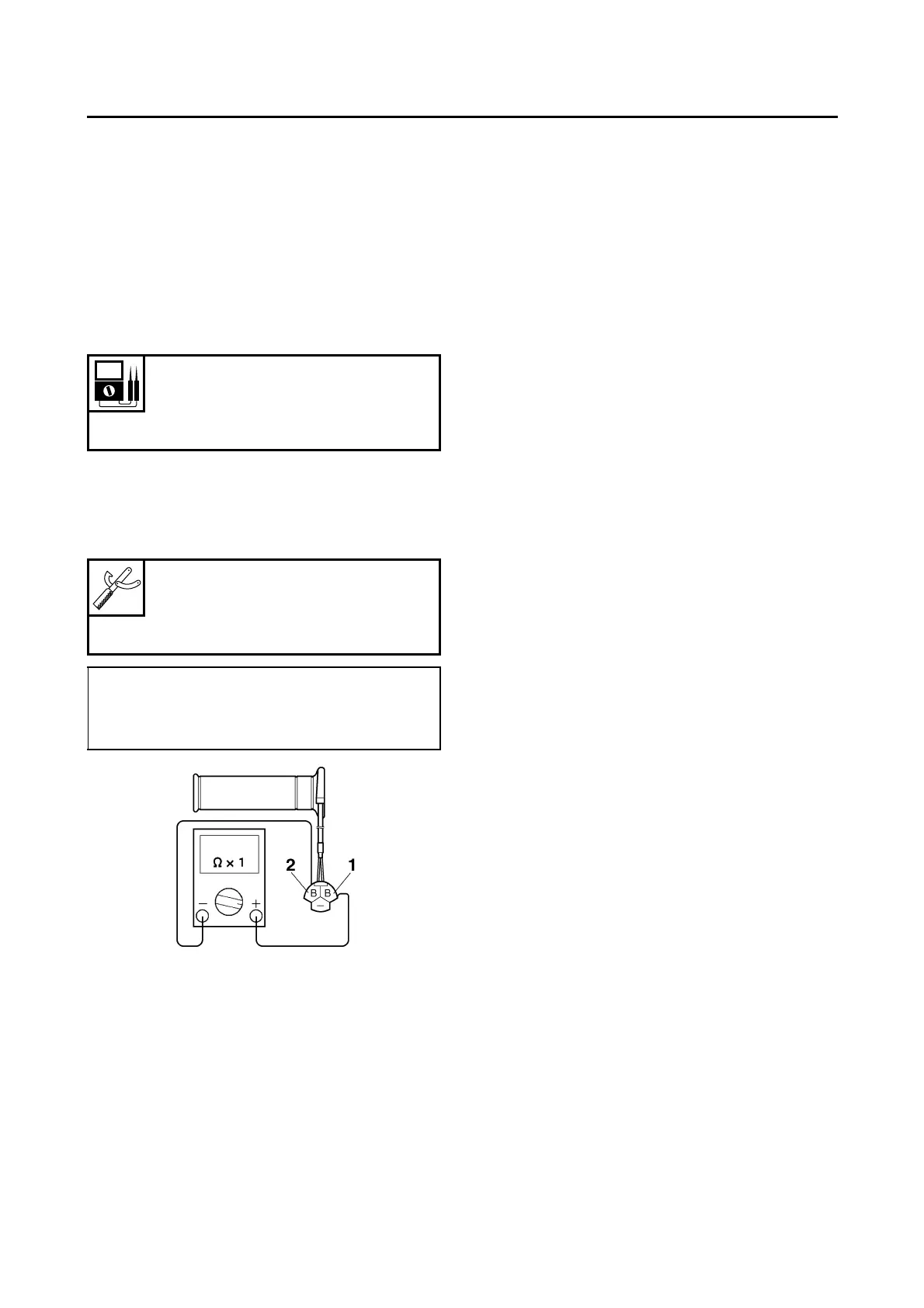

b. Connect the pocket tester (Ω × 1) to the grip
warmer coupler as shown.
c. Measure the grip warmer resistance.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
Grip warmer resistance (L)
1.21–1.48 Ω
Grip warmer resistance (R)
1.17–1.43 Ω
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
black “1”
• Negative tester probe →
black “2”
