ELECTRICAL COMPONENTS
8-192
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼

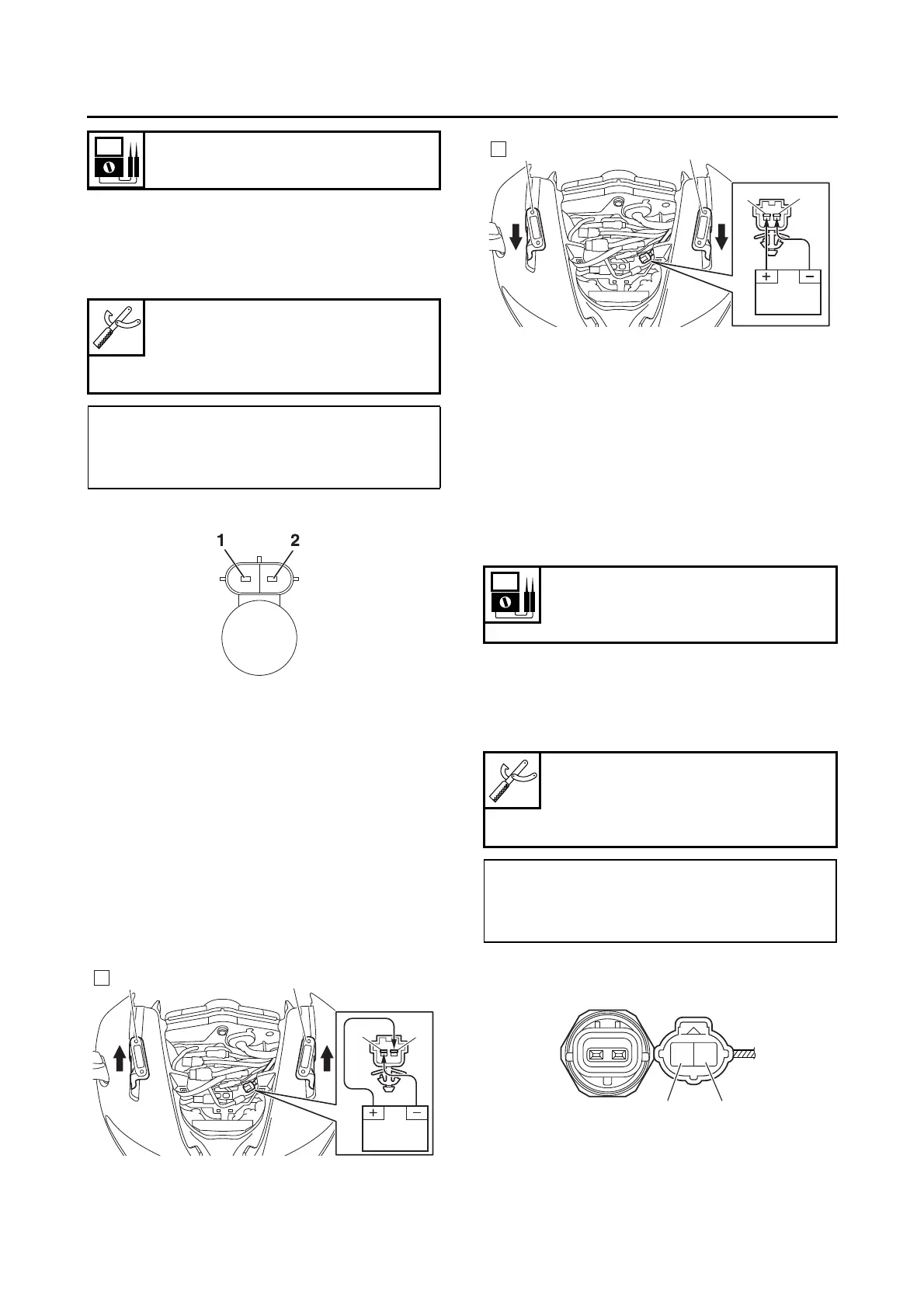

a. Disconnect the fuel injector coupler from wire
harness.
b. Connect the pocket tester (Ω × 1) to the fuel
injector terminals as shown.
c. Measure the fuel injector resistance.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS1MC1078
CHECKING THE WINDSHIELD DRIVE UNIT
1. Check:
• Windshield drive unit operation
Faulty/rough movement → Replace.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Disconnect the windshield drive unit sub-lead
from the wire harness.
b. Connect the battery (DC 12 V) to the wind-
shield drive unit sub-lead terminals “1” as
shown.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
ET3P61017
CHECKING THE ACCESSORY BOX
SOLENOID
1. Check:
• Accessory box solenoid resistance
Out of specification → Replace.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Disconnect the accessory box solenoid cou-
pler from the wire harness.
b. Connect the pocket tester (Ω × 10) to the ac-
cessory box solenoid terminals as shown.
Resistance
12.0 Ω
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
Injector terminal “1”
• Negative tester probe
Injector terminal “2”
A
1
1
22
A. Check that the windshield drive unit arms “2”
up.
B. Check that the windshield drive unit arms “2”
down.
Accessory box solenoid resis-
tance
19–21 Ω
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
brown “1”
• Negative tester probe →
black “2”
22
B
11
B
Br
1
2
