Yamaha XVS6501997 - Page 111

4-7

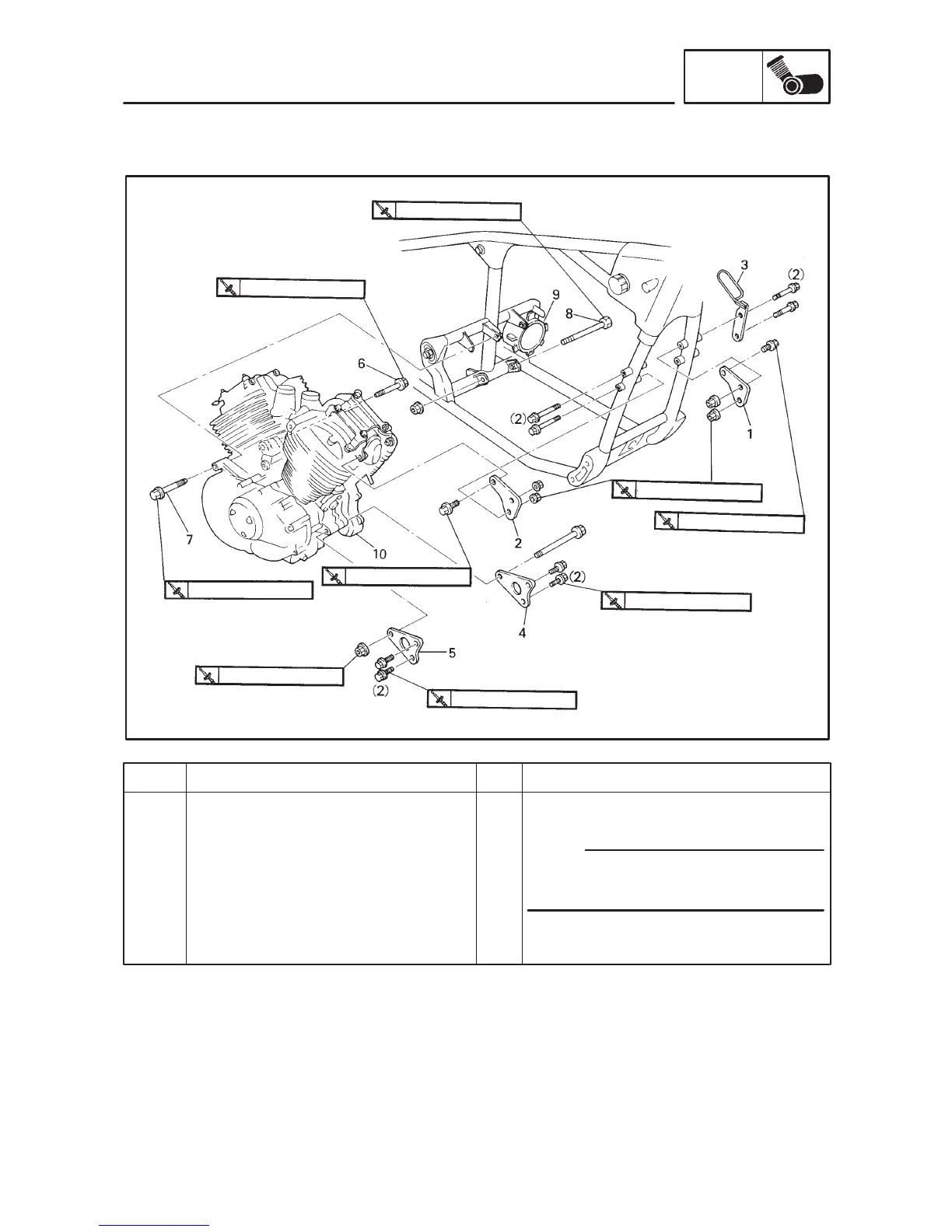

Order Job name/Part name Q’ty Remarks
8
9
10
Engine mounting bolt (rear-lower)
Rubber boot
Engine assembly
1
1
1
L=150mm
Remove the engine assembly from the
right side of the motorcycle.
For installation, reverse the removal
procedure.
NOTE:
74 Nm (7.4 m  kg)
40 Nm (4.0 m  kg)
40 Nm (4.0 m  kg)
40 Nm (4.0 m  kg)
40 Nm (4.0 m  kg)
40 Nm (4.0 m  kg)
40 Nm (4.0 m  kg)
30 Nm (3.0 m  kg)
30 Nm (3.0 m  kg)
ENGINE REMOVAL
ENG
