Yamaha XVS6501997 - Cylinder Heads

4-9
20 Nm (2.0 m  kg)
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11

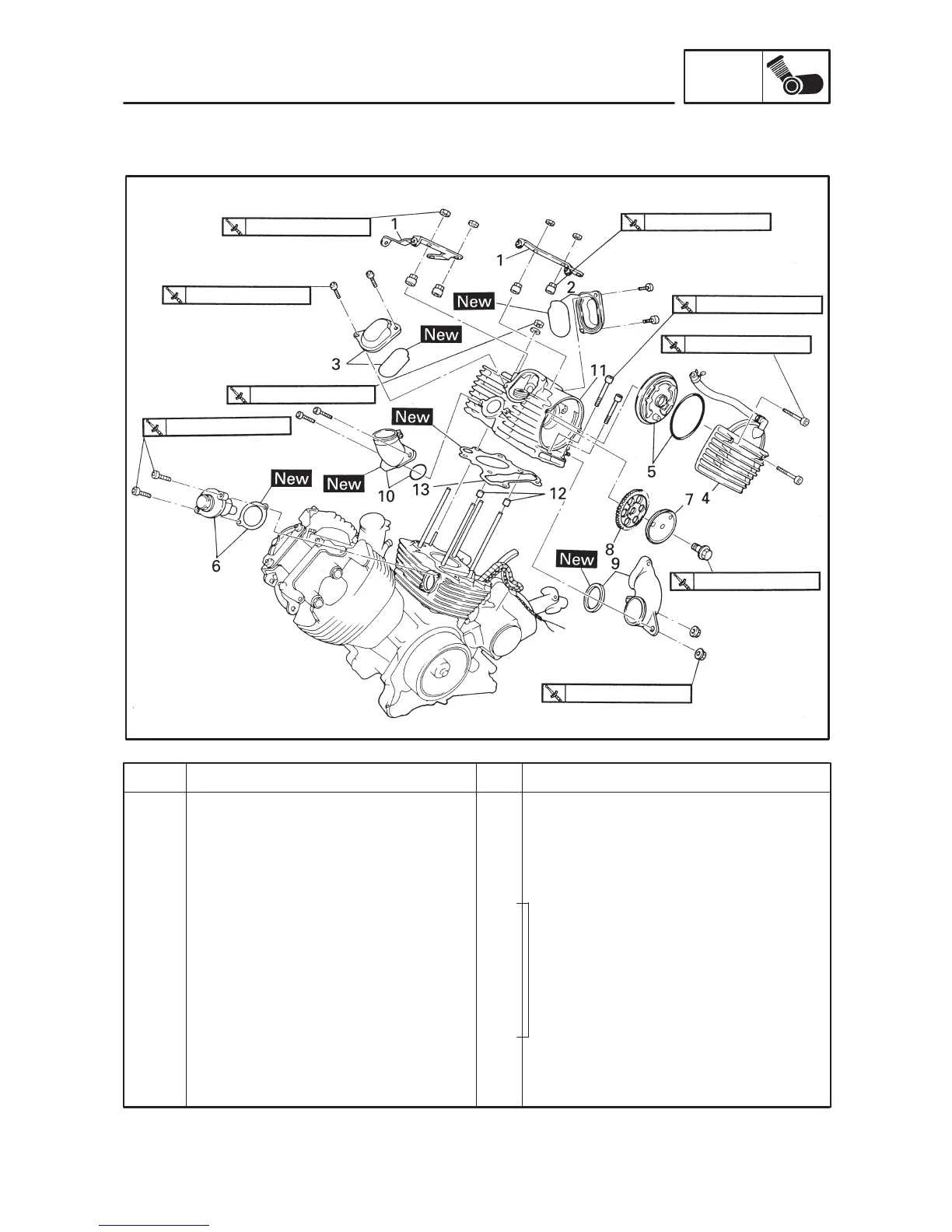

Cylinder head removal
Engine assembly
Cylinder head cover brackets
Tappet cover (exhaust)/O-ring
Tappet cover (intake)/O-ring
Camshaft sprocket cover/O-ring
Baffle plate/O-ring (only rear cylin-
der head)
Timing chain tensioner/gasket
Camshaft sprocket plate (only rear
cylinder head)
Camshaft sprocket
Exhaust pipe joint (rear)/gasket
Carburetor joint/O-ring
Cylinder head
2
1/1
1/1
1/1
1/1
1/1
1
1
1/1
1/1
1
Remove the parts in the order below.
Refer to “ENGINE REMOVAL”.
Refer to “CYLINDER HEAD
REMOVAL/INSTALLATION”.
35 Nm (3.5 m  kg)
10 Nm (1.0 m  kg)
20 Nm (2.0 m  kg)
12 Nm (1.2 m  kg)
35 Nm (3.5 m  kg)
20 Nm (2.0 m  kg)
10 Nm (1.0 m  kg)
55 Nm (5.5 m  kg)
CYLINDER HEADS
ENG
CYLINDER HEADS
