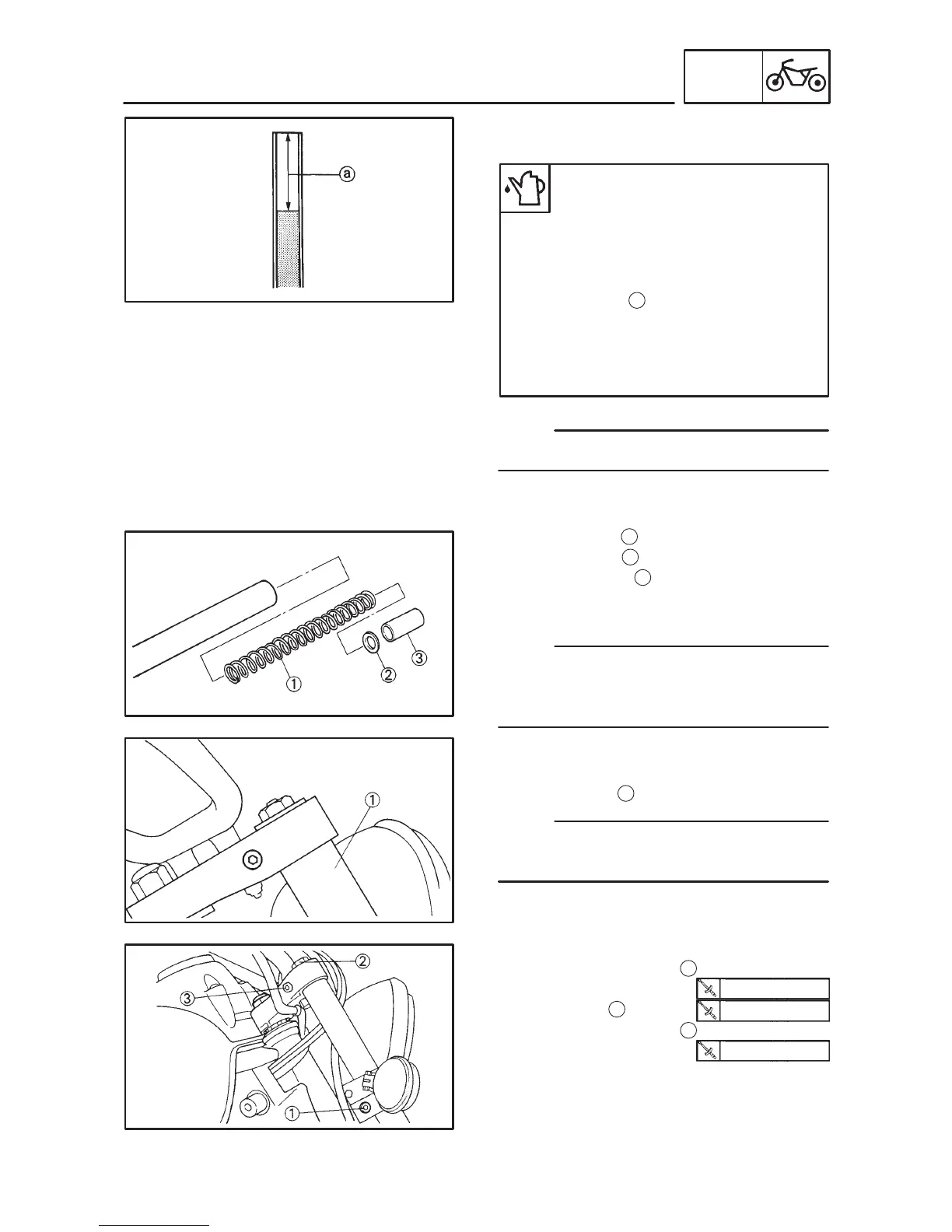

Yamaha XVS6501997 - Front Fork Installation

6-37
FRONT FORK
CHAS
NOTE:
NOTE:
NOTE:
30 Nm (3.0 mSkg)
23 Nm (2.3 mSkg)
20 Nm (2.0 mSkg)
10. Fill:
S Fork oil
Each fork:
0.454L (454 cm
3
)
Yamaha fork oil 10WT or equiv-
alent. After filling up, slowly
pump the fork up and down to
distribute the fork oil.
Oil level
a
:
114 mm
(from the top of the inner tube
fully compressed and without
the fork spring)
Hold the fork in an upright position.
11. Install:
S Fork spring
1
S Spring seat
2
S Spacer collar
3
S O-ring
S Cap bolt
D Before installing the cap bolt, apply grease to
the O-ring.
D Temporarily tighten the cap bolt.
FRONT FORK INSTALLATION
1. Install:
S Front forks
1
Make sure that the inner tube end is flush with
the top of the upper bracket.
2. Tighten:
S Lower bracket bolts
1
S Cap bolts
2
S Upper bracket bolts
3
