4-34
Remove the parts in the order below.
Stand the motorcycle on a level surface.
Securely support the motorcycle so
there is no danger of it falling over.
Refer to “ENGINE OIL REPLACE-
MENT” in CHAPTER 3.
Refer to “ENGINE REMOVAL”.
L=70 mm 1, 65 mm 1, 25 mm 3
L=65 mm 1, 55 mm 1, 45 mm 4,
30 mm 4
Order Job name/Part name Q’ty Remarks
1
2
3
4
5

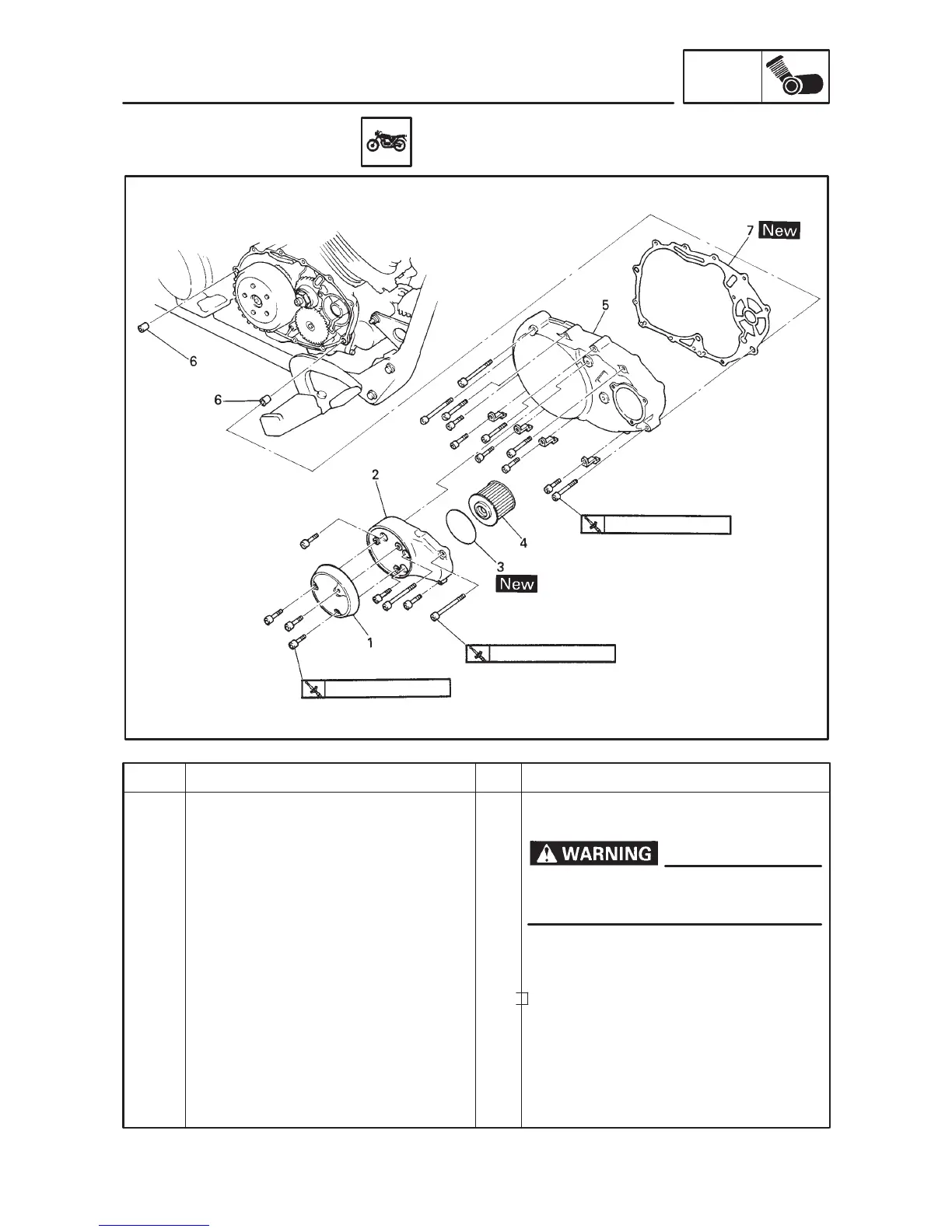

Crankcase cover (right) removal
Engine oil
Muffler assembly 1,2
Brake pedal link
Oil filter cover plate
Oil filter cover
O-ring
Oil filter
Crankcase cover (right)
1
1
1
1
1
10 Nm (1.0 m kg)
10 Nm (1.0 m kg)
10 Nm (1.0 m kg)
CLUTCH
ENG
CLUTCH
CRANKCASE COVER (RIGHT)
To Next Page
