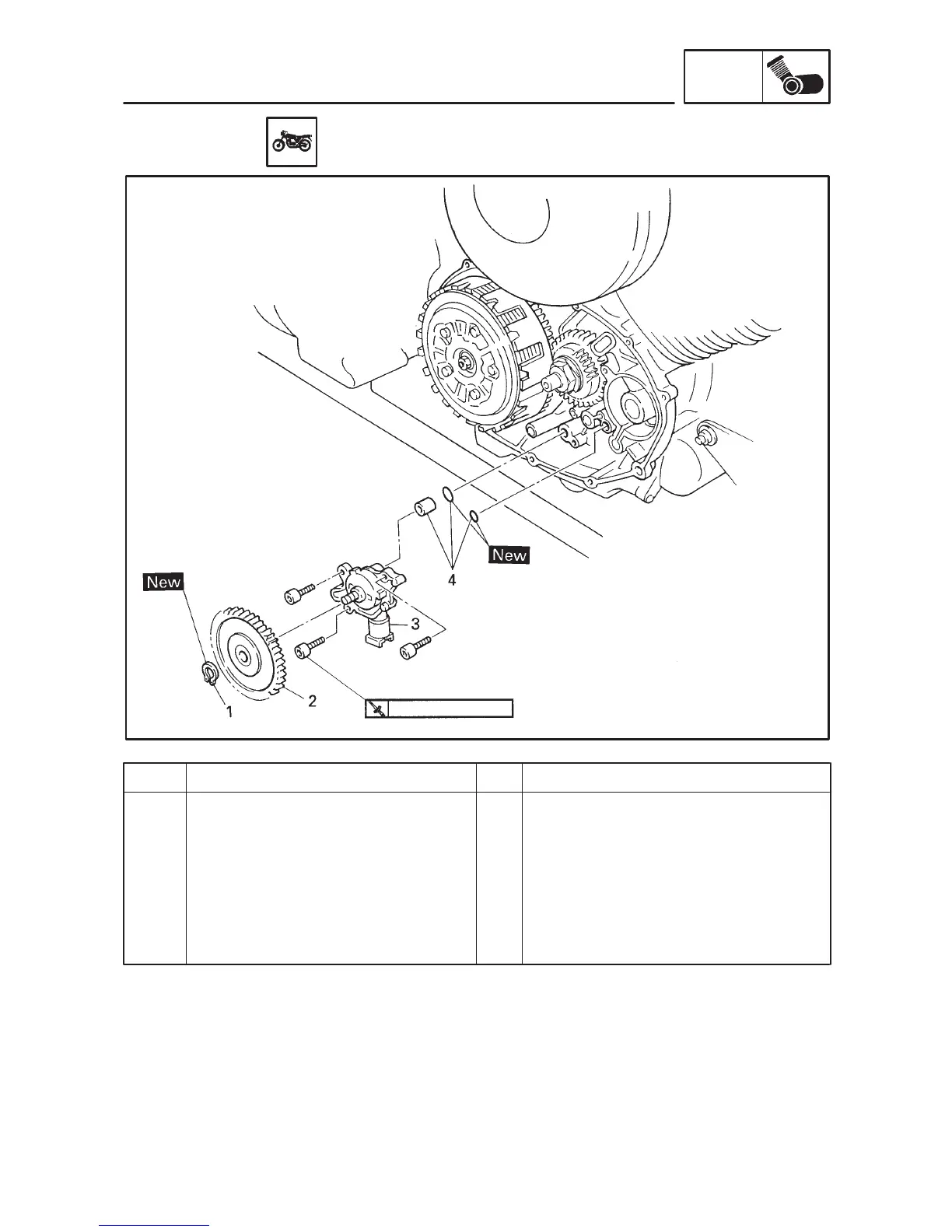

Yamaha XVS6501997 - Oil Pump

4-45
Order Job name/Part name Q’ty Remarks
1
2
3
4
Oil pump removal
Crankcase cover (right)
Circlip
Driven gear (oil pump)
Oil pump assembly
O-rings/collar
1
1
1
2/1
Remove the parts in the order below.
Refer to “CLUTCH”.
For installation, reverse the removal
procedure.
7 Nm (0.7 m  kg)
OIL PUMP
ENG
OIL PUMP
