7-22
CHARGING SYSTEM
ELEC
NOTE:
EB802011
1. Fuses (main)
Refer to “SWITCH INSPECTION”.
Replace the fuses.
NO CONTINUITY
CONTINUITY
EB802012
2. Battery
S Check the battery condition.
Refer to “BATTERY INSPECTION” in
CHAPTER 3.
S Clean the battery terminals.
S Recharge or replace the battery.
INCORRECT
CORRECT
Open-circuit voltage:
12.8 V or more at 20_C
EB804011
3. Charging voltage
S Connect the engine tachometer to the spark
plug lead #1.
S Connect the pocket tester (DC 20 V) to the
battery.
Tester (+) lead Battery (+) terminal
Tester (–) lead Battery (–) terminal
EB804010

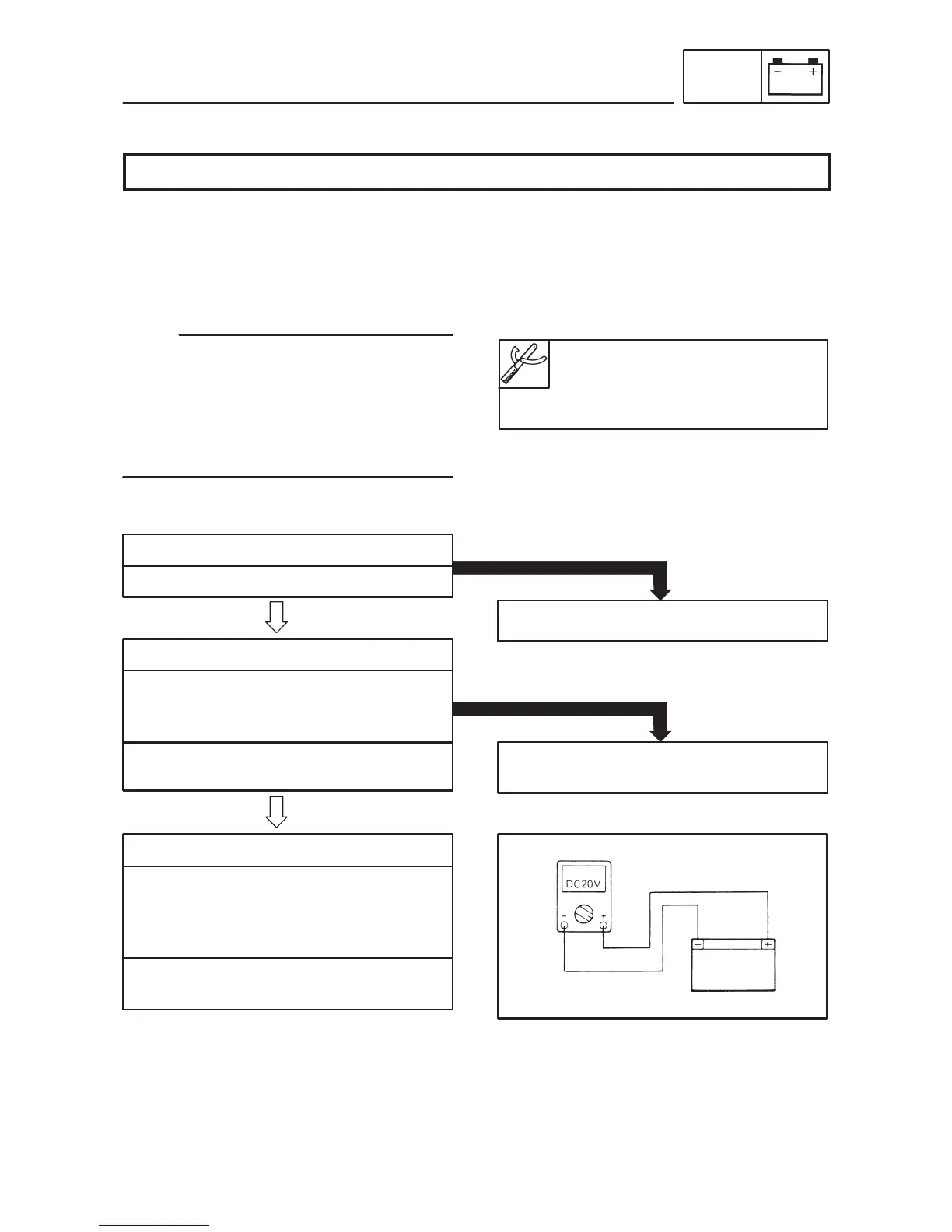

TROUBLESHOOTING
IF THE BATTERY IS NOT CHARGED:
Procedure
Check:
1. Fuse (main)
2. Battery
3. Charging voltage
4. Stator coil resistance
5. Wiring connections (the entire charging
system)
D Remove the following part(s) before trouble-
shooting:
1) Battery cover
2) Rider’s seat
D Use the following special tool(s) for trouble-
shooting.
Engine tachometer:
90890-03113
Pocket tester:
90890-03112
To Next Page
