7-39
1 Battery
2 Main fuse
3 Main switch
4 Ignition fuse
5 Engine stop switch
6 Ignitor unit
7 Fuel pump relay
8 Fuel pump
FUEL PUMP SYSTEM
ELEC
EB808010

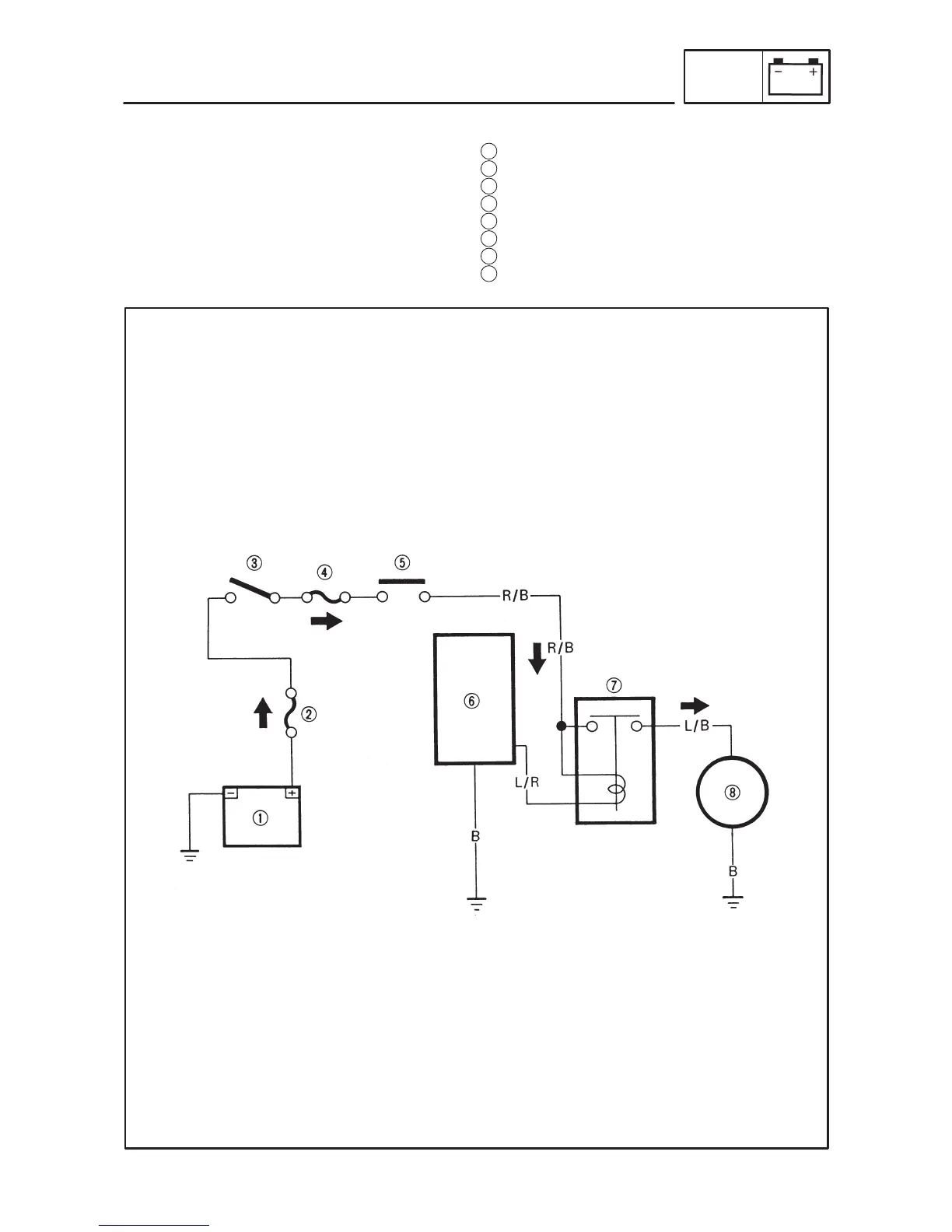

FUEL PUMP CIRCUIT OPERATION
The fuel pump circuit consists of the fuel pump
relay, fuel pump, engine stop switch and ignitor
unit.
The ignitor unit includes the control unit for the
fuel pump.
