Yamaha XVS6501997 - Throttle Cable Adjustment

3-10
IDLING SPEED ADJUSTMENT/
THROTTLE CABLE ADJUSTMENT
INSP
ADJ
NOTE:
*****************************************************
NOTE:
5. Adjust:
 Throttle cable free play
Refer to “THROTTLE CABLE ADJUST-
MENT”.
Free play (throttle cable):
4  6 mm
At throttle grip flange
EB303030

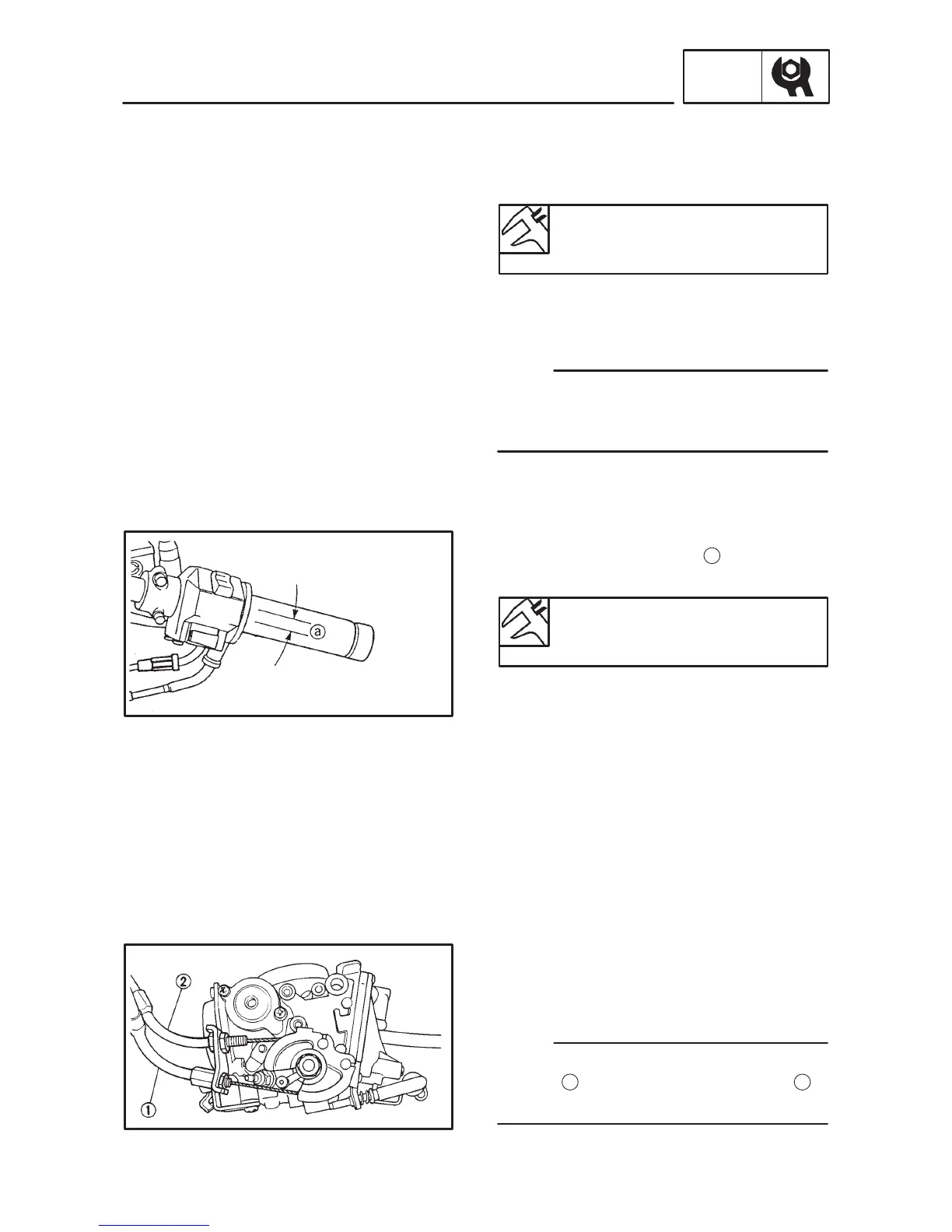

THROTTLE CABLE ADJUSTMENT
Prior to adjusting the throttle cable free play, the
engine idling speed and carburetor synchro-
nization should be adjusted properly.
1. Check:
 Throttle cable free play
a
Out of specification  Adjust.
Free play (throttle cable):
4  6 mm
At throttle grip flange
2. Remove:
 Rider’s seat
 Fuel tank
Refer to “FUEL TANK AND SEATS”.
3. Adjust:
 Throttle cable free play
Adjustment steps:
When the motorcycle is accelerating, throttle
cable #1
1
is pulled and throttle cable #2
2
is
pushed.
