3-17
ENGINE OIL REPLACEMENT
INSP
ADJ
*****************************************************
*****************************************************
43 Nm (4.3 mSkg)
NOTE:
EB303080

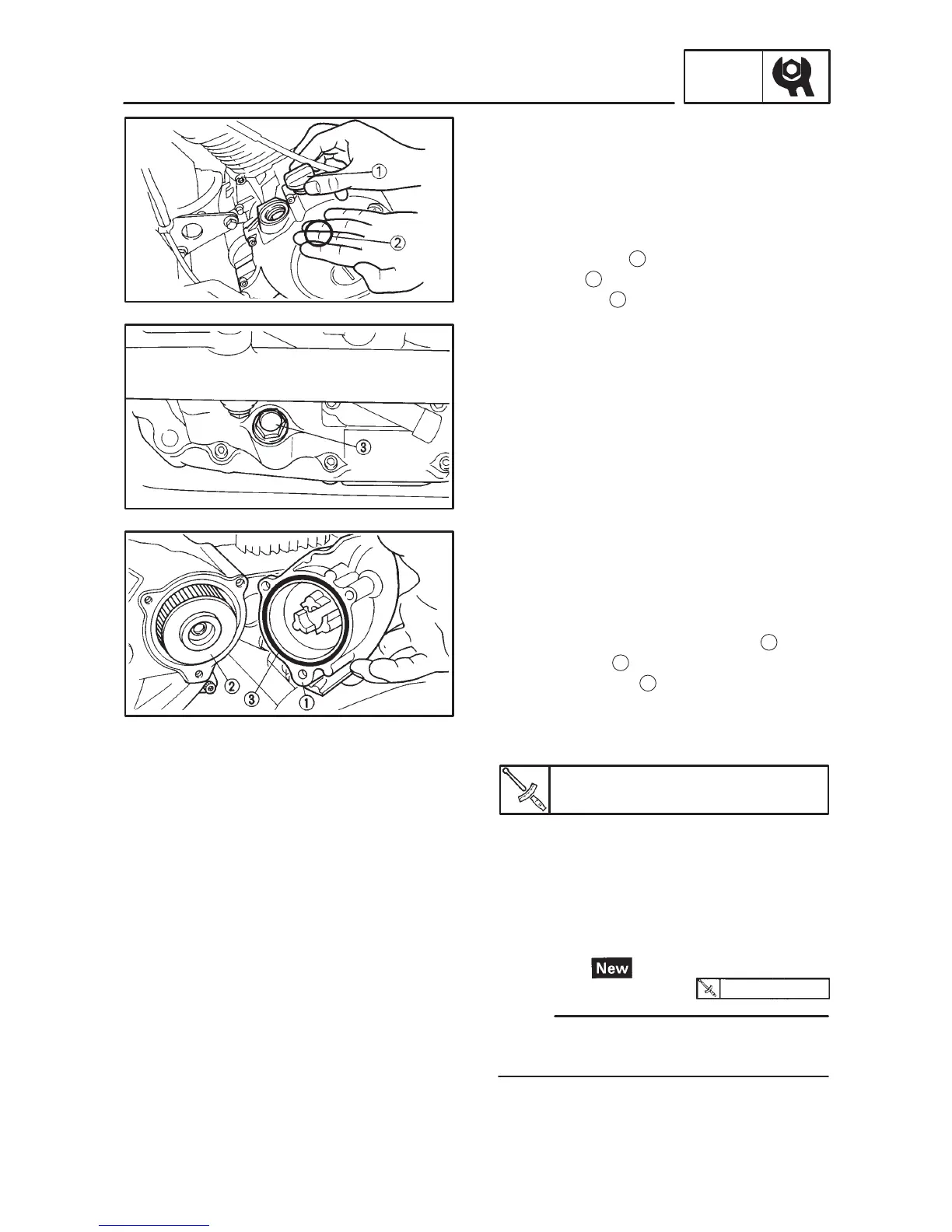

ENGINE OIL REPLACEMENT
1. Start the engine and let it warm up for sev-
eral minutes.
2. Turn off the engine and place a container
under the drain bolt.
3. Remove:
S Oil filler plug
1
S O-ring
2
S Drain bolt
3
S Gasket
Drain the crankcase of its oil.
4. If the oil filter is to be replaced during this
procedure, remove the following parts and
reinstall them afterwards.
Replacement steps:
D Remove the oil filter element cover
1
and oil
filter element
2
.
D Check the O-ring
3
. If cracked or damaged,
replace them with new one.
D Install the oil filter element and oil filter ele-
ment cover.
Oil filter cover:
10 Nm (1.0 mSkg)
5. Install:
S Gasket
S Drain bolt
Inspect the drain bolt gasket. If it is damaged,
replace it.
To Next Page
