Yamaha XVS6501997 - Shift Fork Inspection; Shift Cam Inspection; Transmission Inspection

4-66
TRANSMISSION
ENG

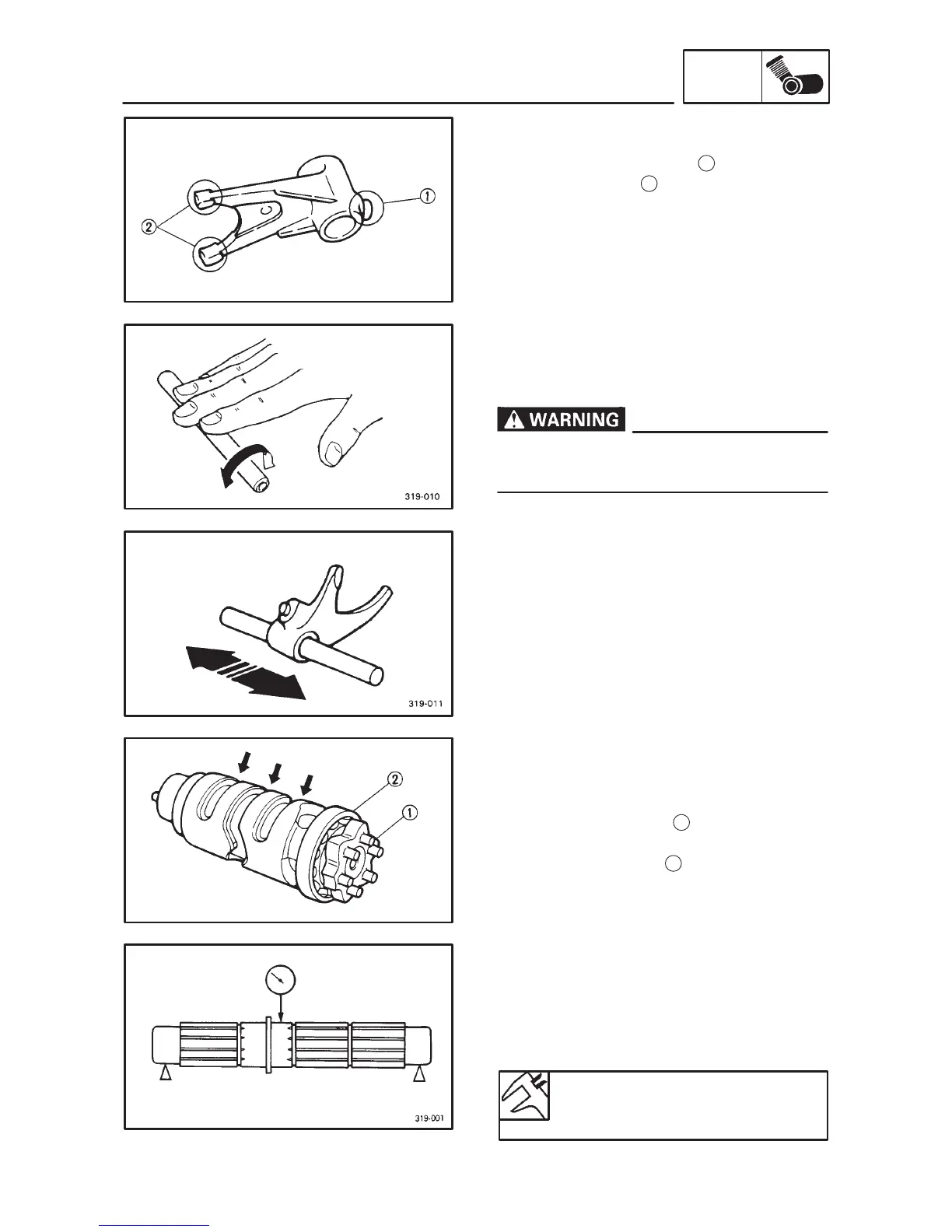

SHIFT FORK INSPECTION
1. Inspect:
 Shift fork cam follower
1
 Shift fork pawl
2
Scoring/bends/wear/damage  Re-
place.
2. Inspect:
 Guide bar
Roll the guide bar on a flat surface.
Bends  Replace.
Do not attempt to straighten a bent guide
bar.
3. Check:
 Shift fork movement
(on the guide bar)
Unsmooth operation  Replace the shift
fork and the guide bar.
SHIFT CAM INSPECTION
1. Inspect:
 Shift cam grooves
Scratches/wear/damage  Replace.
 Shift cam segment
1
Wear/damage  Replace.
 Shift cam bearing
2
Pitting/damage  Replace.
TRANSMISSION INSPECTION
1. Measure:
 Axle runout
Use a centering device and a dial gauge.
Out of specification  Replace the bent
axle.
Runout limit (main and drive
axle):
0.06 mm
