6-1
59 Nm (5.9 m kg)
20 Nm (2.0 m kg)
23 Nm (2.3 m kg)
Remove the parts in the order below.
Stand the motorcycle on a level
surface.
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7

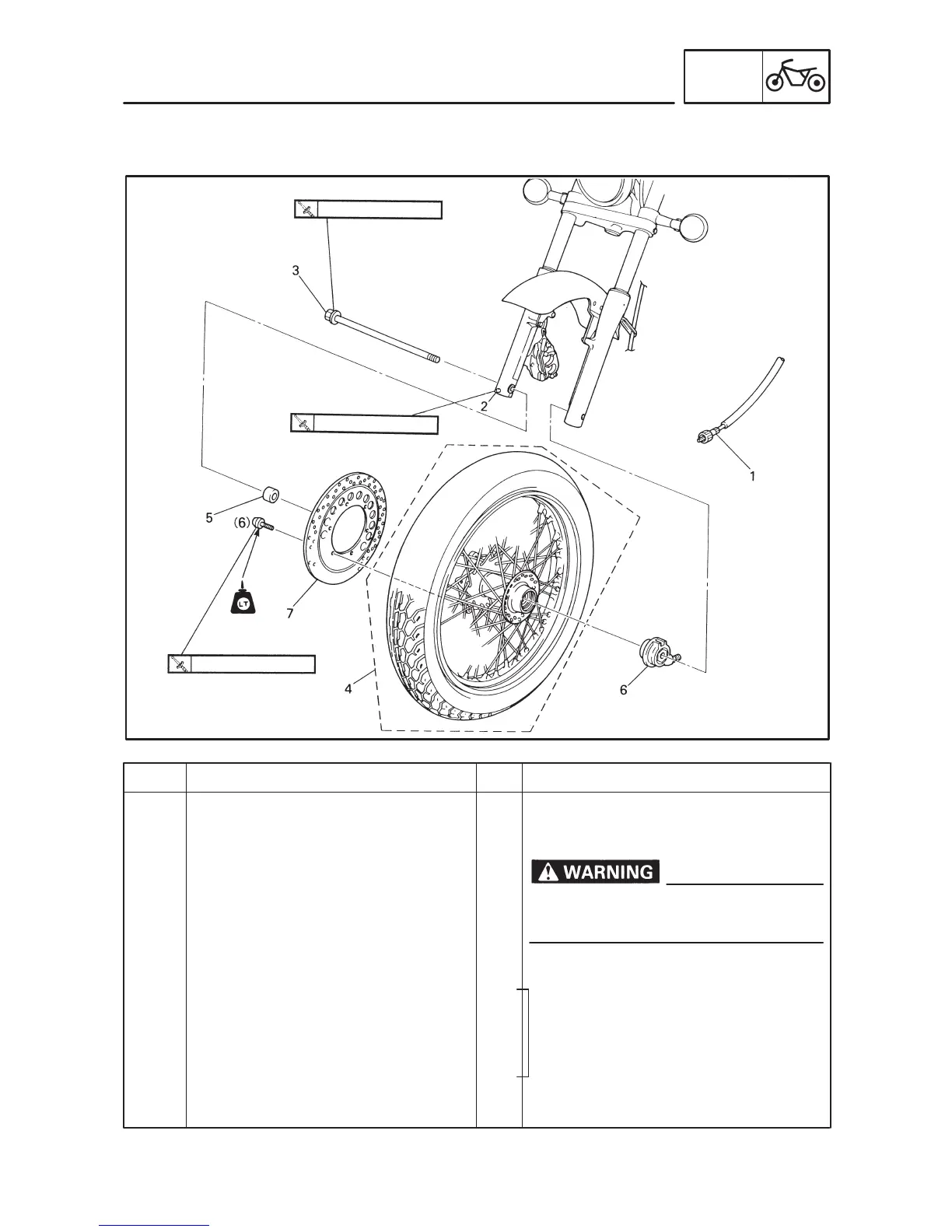

Front wheel and brake disc removal
Speedometer cable
Front wheel axle pinch bolt
Front wheel axle
Front wheel assembly
Collar
Speedometer gear unit
Brake disc
1
1
1
1
1
1
1
Securely support the motorcycle so
there is no danger of it falling over.
Disconnect
Loosen
Refer to “FRONT WHEEL
INSTALLATION”.
For installation, reverse the removal
procedure.
FRONT WHEEL AND BRAKE DISC
CHAS
CHASSIS
FRONT WHEEL AND BRAKE DISC
