Yamaha XVS6501997 - Fuel Tank and Seats

3-3
Disconnect the speedometer cable
from the front wheel side first.
Set the fuel cock to “OFF” before
disconnecting the fuel hose.
For installation, reverse the removal
procedure.
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9

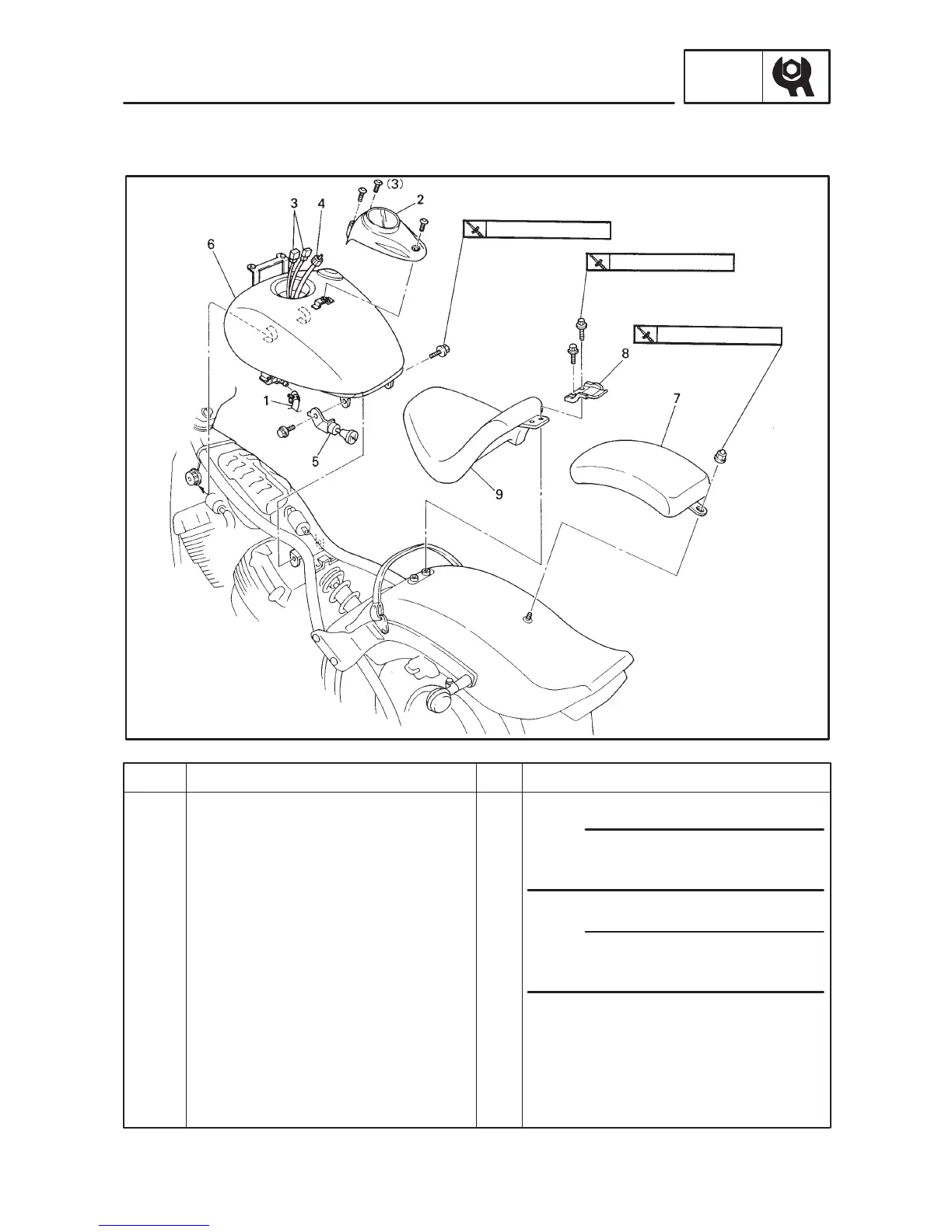

Fuel tank and seats removal
Fuel hose
Meter assembly
Meter lead couper
Speedometer cable
Starter knob bracket
Fuel tank assembly
Passenger seat
Seat bracket
Rider’s seat
1
1
2
1
1
1
1
1
1
Remove the parts in the order below.
NOTE:
NOTE:
30 Nm (3.0 mkg)
7 Nm (0.7 mkg)
7 Nm (0.7 mkg)
FUEL TANK AND SEATS
INSP
ADJ
FUEL TANK AND SEATS
