7-3
SWITCH INSPECTION
ELEC

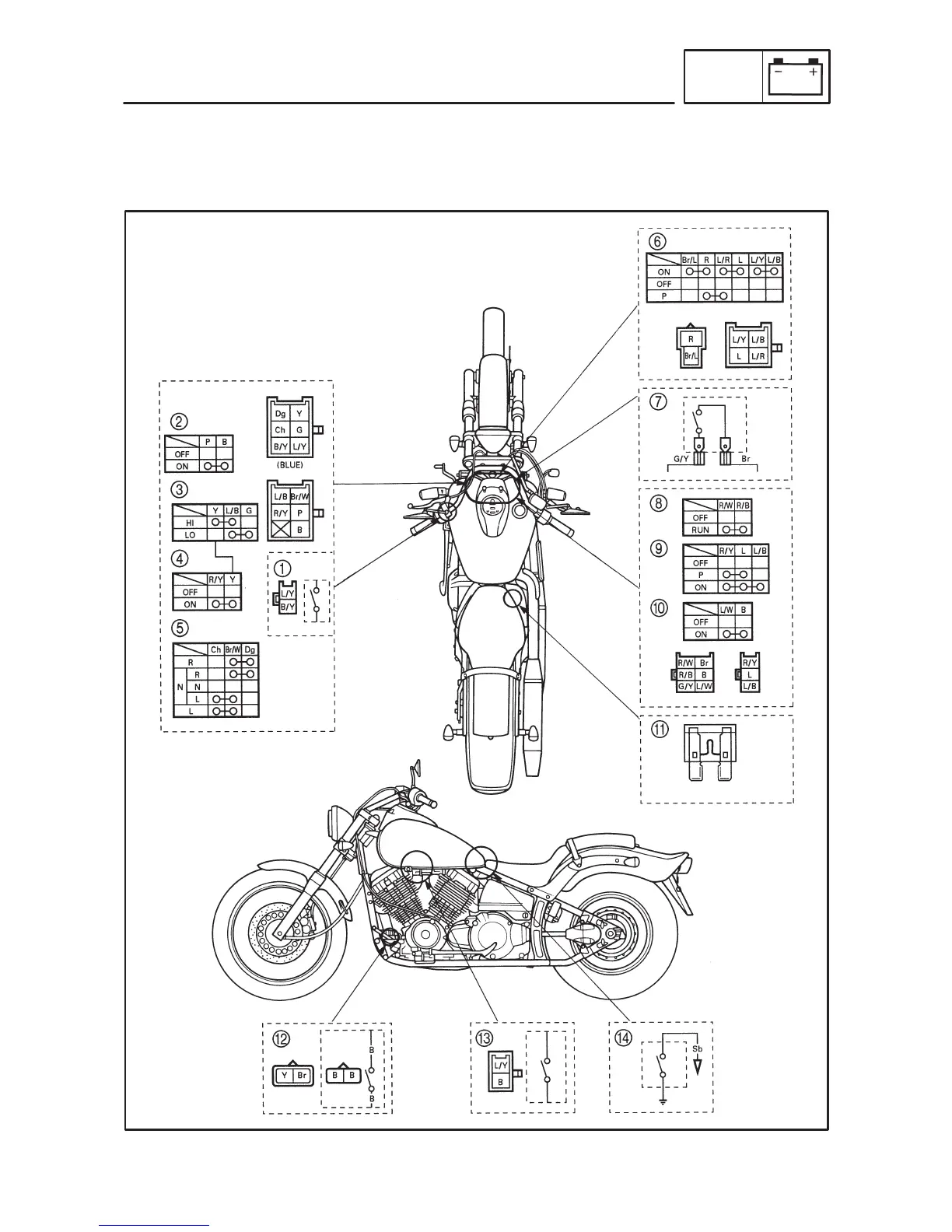

SWITCH CONTINUITY INSPECTION
Refer to “SWITCH INSPECTION” and check for continuity between lead terminals.
Poor connection, no continuity Correct or replace.
: The coupler locations are circled.
