Yamaha XVS6501997 - Steering Head

6-43
Refer to “FRONT FORK”.
Refer to “HANDLEBAR”.
Disconnect
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7

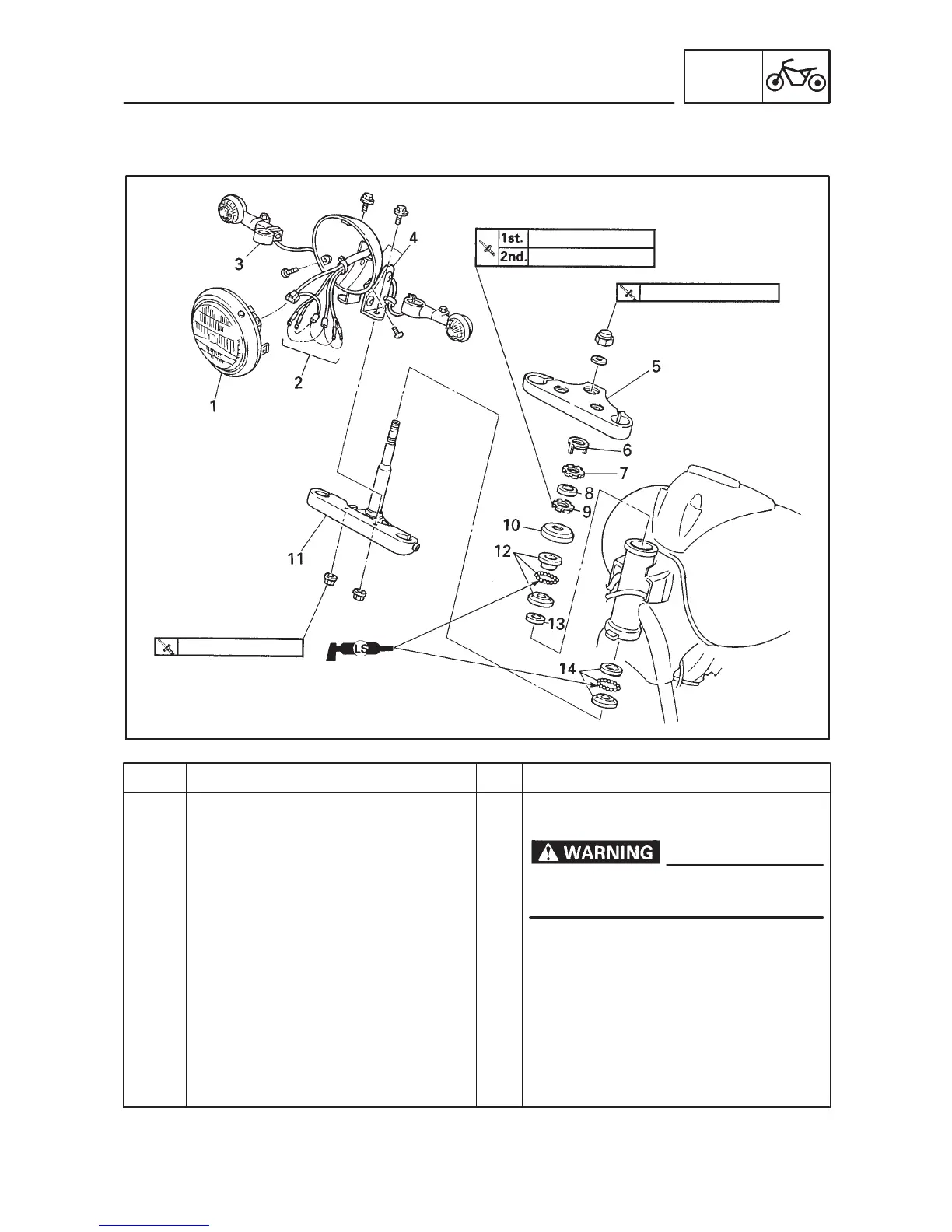

Steering head removal
Front forks
Handlebar
Headlight lens unit
Leads (in the headlight body)
Front flasher light (left/right)
Headlight body
Upper bracket
Lock washer
Upper ring nut
1
–
1/1
1
1
1
1
Remove the parts in the order below.
Stand the motorcycle on a level surface.
Securely support the motorcycle so
that there is no danger of it falling over.
52 Nm (5.2 m  kg)
18 Nm (1.8 m  kg)
110 Nm (11.0 m  kg)
32 Nm (3.2 m  kg)
