6-59
SHAFT DRIVE
CHAS
CAUTION:
CAUTION:
NOTE:

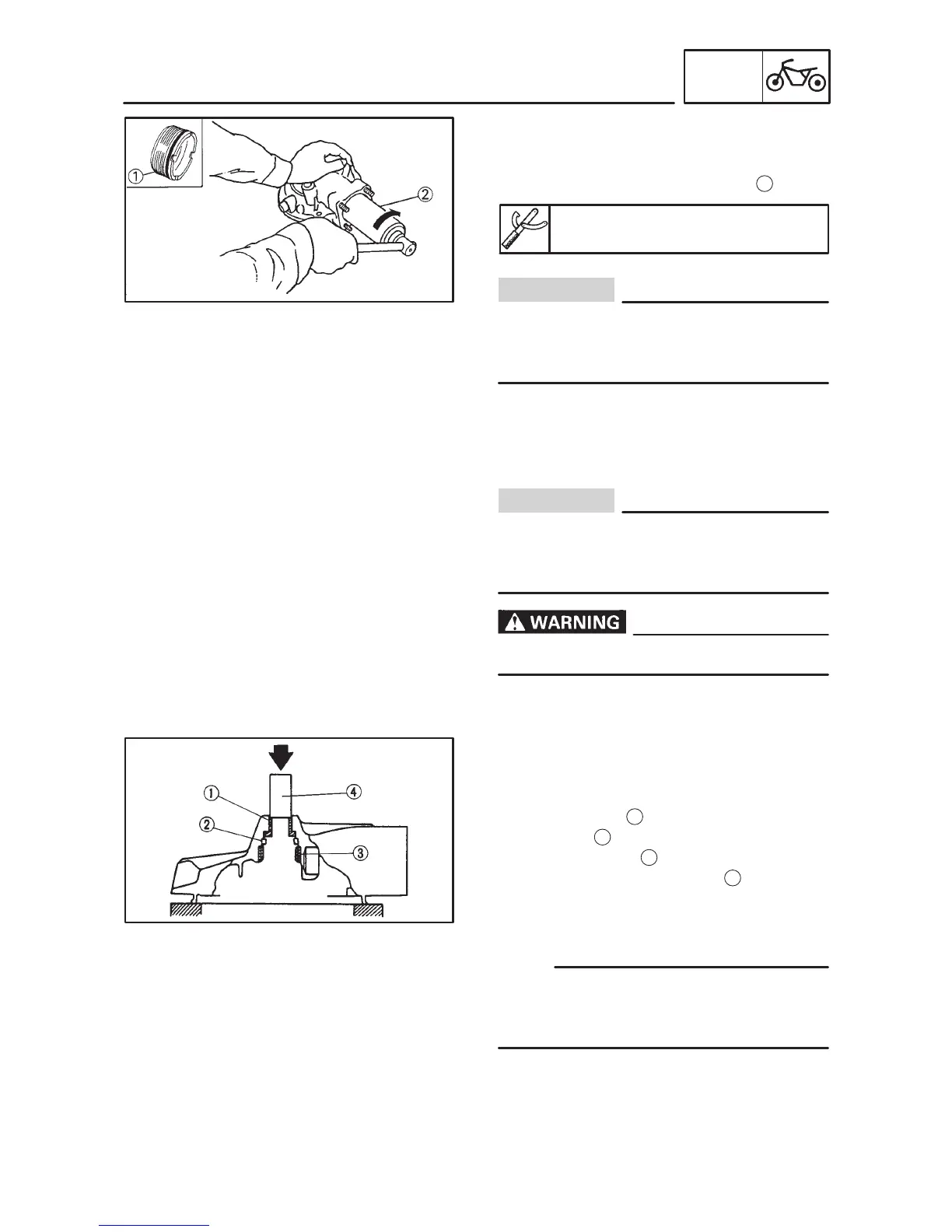

FINAL DRIVE GEAR DISASSEMBLY
1. Remove:
Bearing retainer (final drive shaft)
Use a bearing retainer wrench
1
.
Bearing retainer wrench:
90890-04050
The final drive shaft bearing retainer has
left-handed threads. To loosen the retainer
turn it clockwise.
2. Remove:
Final drive shaft assembly
With a soft hammer lightly tap on the final
drive shaft end.
Removal of the final drive shaft should only
be performed if gear replacement is neces-
sary.
Always use new bearings and races.
EB707033
FINAL DRIVE ROLLER BEARING REMOVAL
AND REASSEMBLY
1. Remove:
Guide collar
1
Oil seal
2
Roller bearing
3
Use a suitable press tool
4
and an ap-
propriate support for the final gear case.
2. Inspect:
Final drive roller bearing
The roller bearing can be reused, but Yamaha
recommends installation of a new bearing. Do
not reuse the oil seal.
