CRANKSHAFT AND CONNECTING RODS
ENG
NOTE:
NOTE:
NOTE:
NOTE:

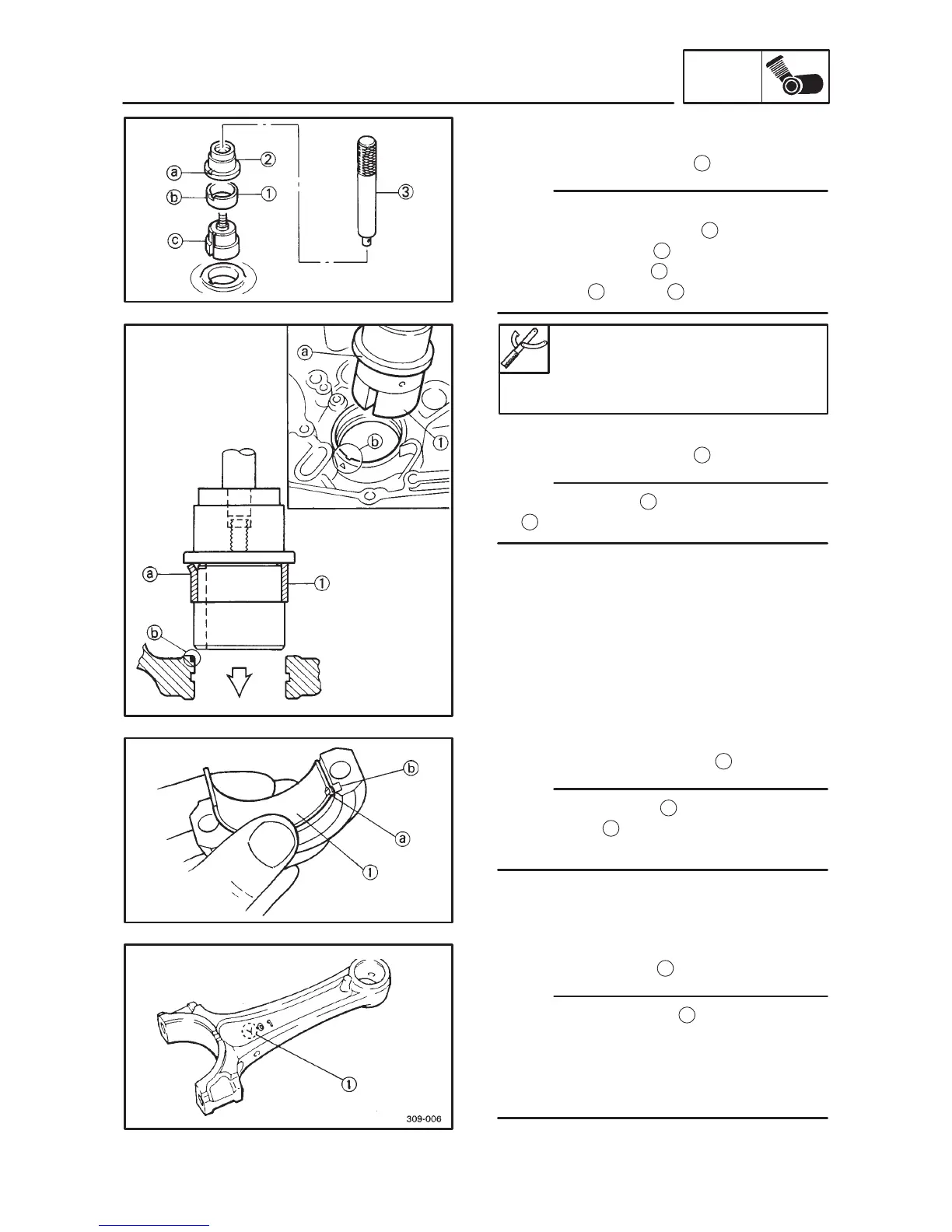

CRANKSHAFT INSTALLATION
1. Attach:
 Main journal bearings
1
 Attach the main journal bearing to the plane
bearing installer/remover
2
middle driven
shaft bearing driver
3
.
 Align the projection
a
on the bearing with the
projection
b
and slot
c
on the special tools.
Plane bearing installer/remover:
90890-04074
Middle driven shaft bearing driver:
90890-04058
2. Install:
 Main journal bearings
1
Align the projection
a
on the bearing with the
slit
b
on the crankcase.
3. Install:
 Connecting rod bearings
1
 Align the projection
a
of the bearings with
the notches
b
in the connecting rod cap.
 Install each bearing in its original place.
4. Install:
 Connecting rods
1
 The stamped “Y” mark
a
on the connecting
rods should face towards the left side of the
crankcase.
 Install each connecting rod in its original
place.
