Yamaha XVS6501997 - Shift Pedal Installation; Brake Pedal Installation

4-8
ENGINE REMOVAL
ENG
10 Nm (1.0 mkg)
NOTE:
10 Nm (1.0 mkg)
NOTE:

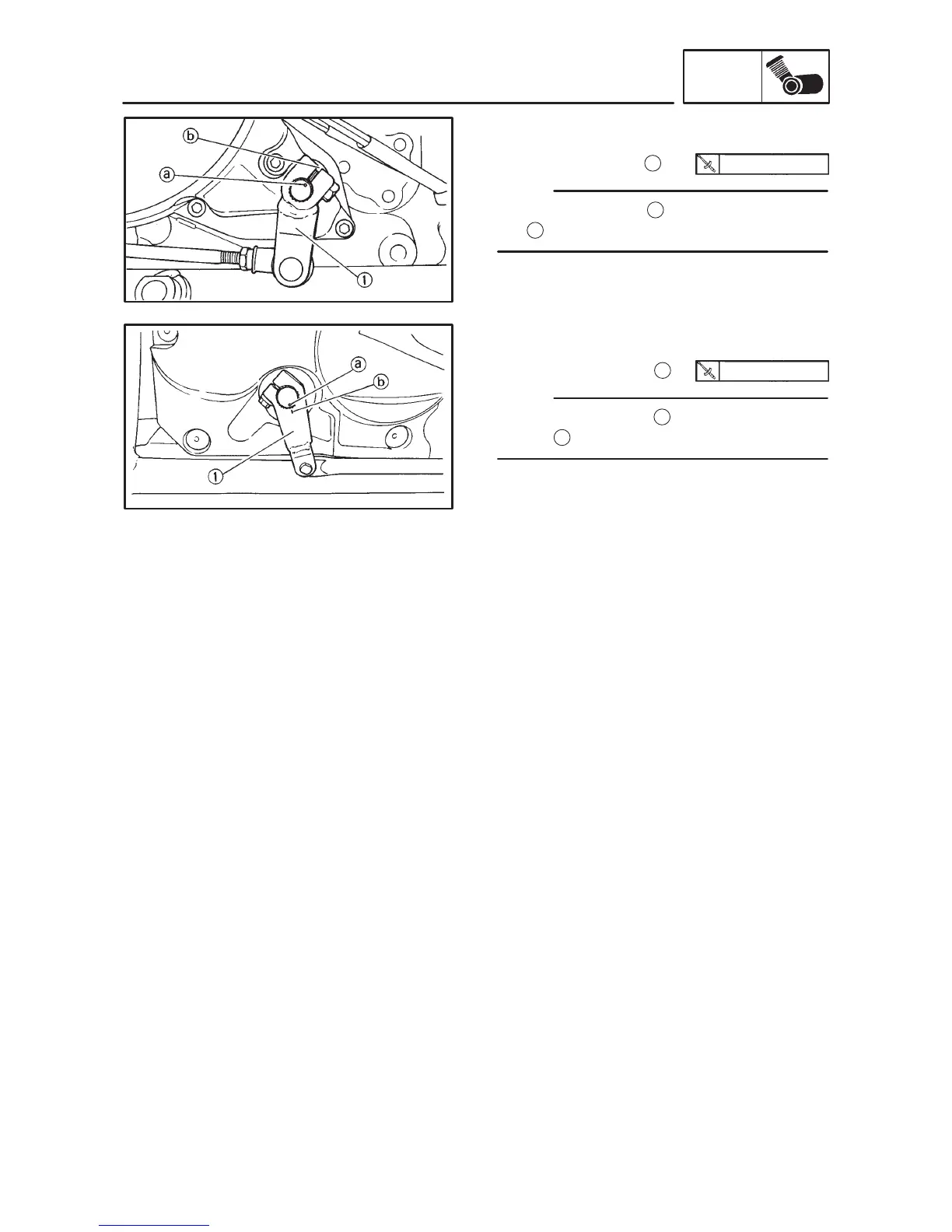

SHIFT PEDAL INSTALLATION
1. Connect
 Shift pedal link
1
Align the punch mark
a
on the shift rod with the
slot
b
on the shift pedal link
BRAKE PEDAL INSTALLATION
1. Connect
 Brake pedal link
1
Align the punch mark
a
on the brake rod with
the slot
b
on the brake pedal link
