Yamaha XVS6501997 - Ac Magneto and Starter Clutch; Stator Coil and Pickup Coil

4-48
7 Nm (0.7 m  kg)
7 Nm (0.7 m  kg)
Order Job name/Part name Q’ty Remarks
1
2

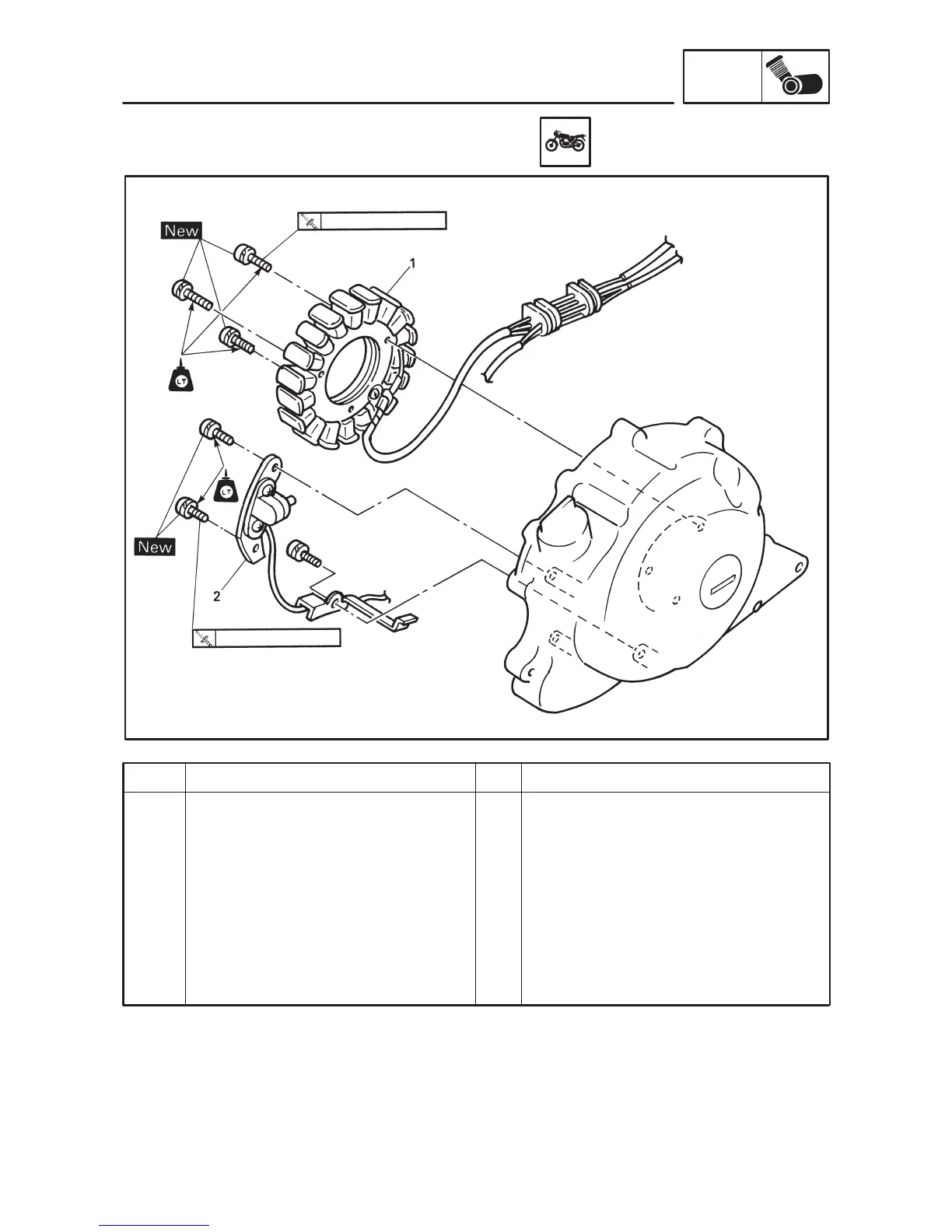

Stator removal
Engine oil
Crankcase cover (left)
Rider’s seat
Stator coil
Pickup coil
1
1
Remove the parts in the order below.
Refer to “ENGINE OIL REPLACE-
MENT” in CHAPTER 3.
Refer to “CLUTCH”.
Refer to “FUEL TANK AND SEATS” in
CHAPTER 3.
For installation, reverse the removal
procedure.
AC MAGNETO AND STARTER CLUTCH
ENG
AC MAGNETO AND STARTER CLUTCH
STATOR COIL AND PICKUP COIL
