Yamaha XVS6501997 - Starter Motor Assembly

7-19
ELECTRIC STARTING SYSTEM
ELEC
NOTE:

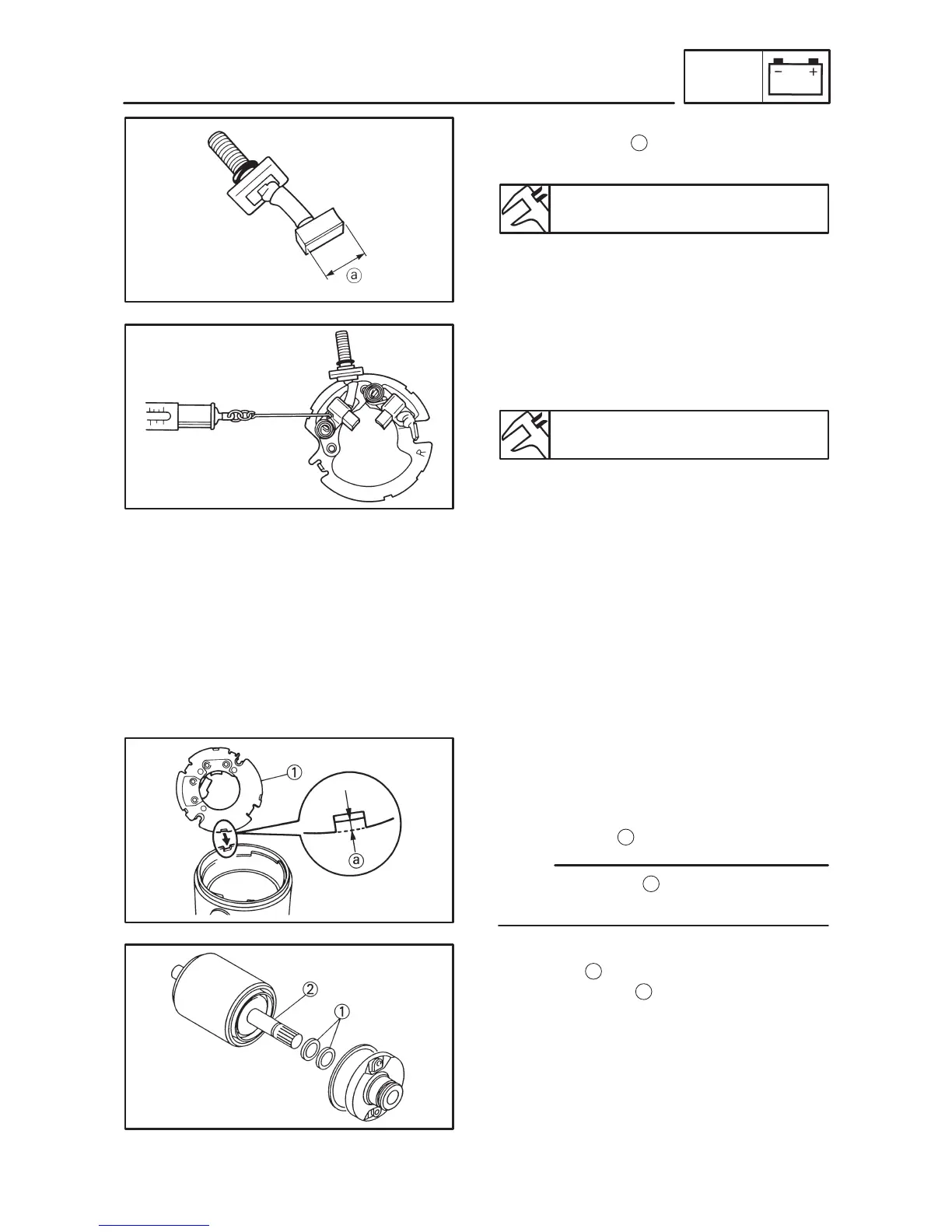

5. Measure:
S Brush length
a
Out of specification  Replace.
Brush length wear limit:
4 mm
6. Measure:
S Brush spring force
Fatigue/out of specification  Replace as
a set.
Brush spring force:
520  920 g
7. Inspect:
S Bearing
Roughness  Replace.
S Oil seal
S Bushing
Wear/damage  Replace.
EB803036
STARTER MOTOR ASSEMBLY
Reverse the “Removal” procedure.
Note the following points.
1. Install:
S Brush seat
1
Align the projection
a
on the brush seat with
the slot on the housing.
2. Install:
S Shims
1
S Armature coil
2
