Yamaha XVS6501997 - Master Cylinder

6-11
10 Nm (1.0 m  kg)
30 Nm (3.0 m  kg)
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8

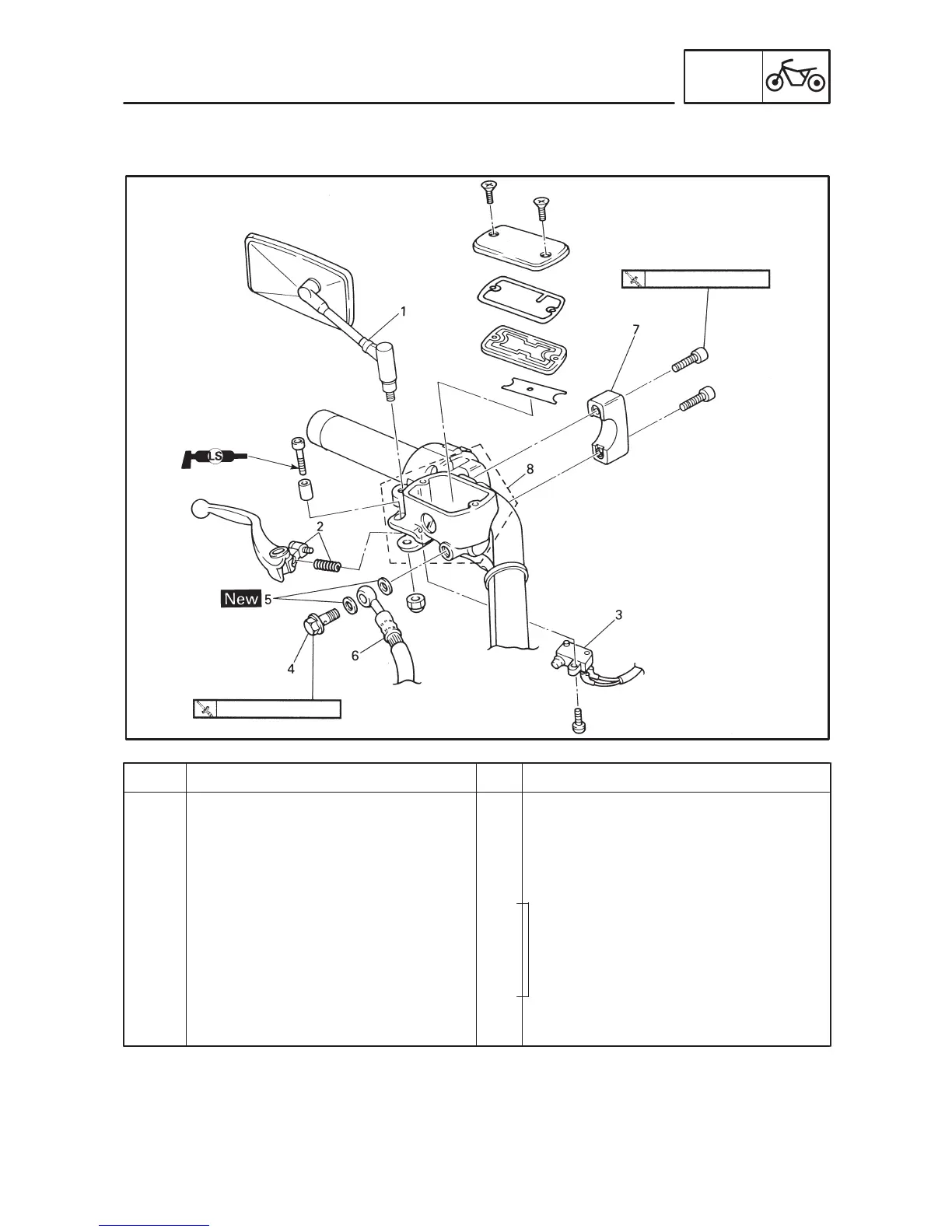

Master cylinder removal
Brake fluid
Rear view mirror (right)
Brake lever/compression spring
Front brake switch
Union bolt
Copper washers
Brake hose
Master cylinder bracket
Master cylinder
1
1/1
1
1
2
1
1
1
Remove the parts in the order below.
Drain
Refer to “MASTER CYLINDER
INSTALLATION”.
For installation, reverse the removal
procedure.
FRONT BRAKE
CHAS
MASTER CYLINDER
