Yamaha XVS6501997 - Rear Wheel and Rear Brake; Muffler and Rear Brake Rod

6-21
REAR WHEEL AND REAR BRAKE
CHAS
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8

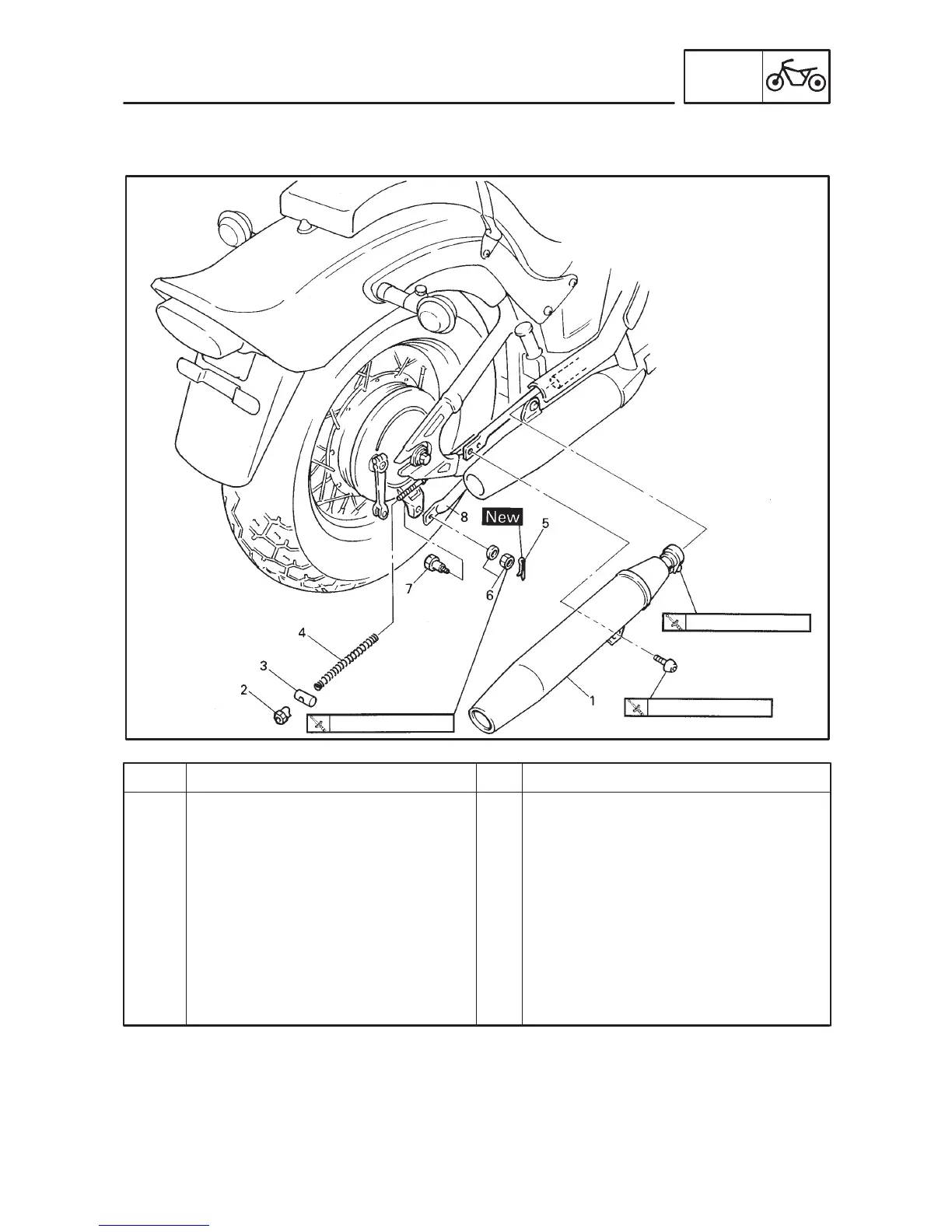

Muffler and rear brake rod removal
Muffler
Adjuster
Pin
Compression spring
Cotter pin
Nut/plate washer
Bolt
Tension bar
1
1
1
1
1
1/1
1
1
Remove the parts in the order below.
For installation, reverse the removal
procedure.
20 Nm (2.0 m  kg)
20 Nm (2.0 m  kg)
25 Nm (2.5 m  kg)
REAR WHEEL AND REAR BRAKE
MUFFLER AND REAR BRAKE ROD
