5-1
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10

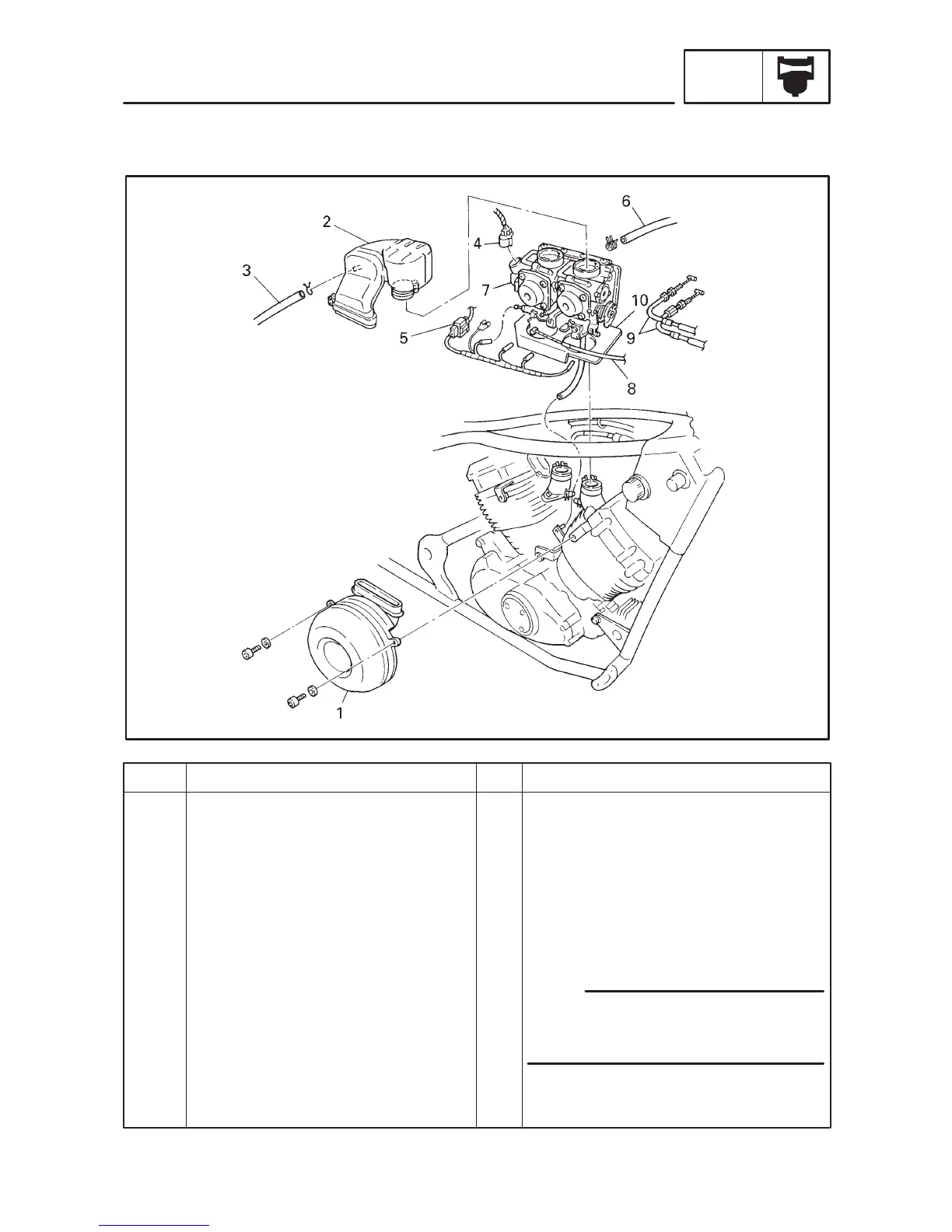

Carburetor removal
Fuel tank
Air filter case assembly
Air duct
Cylinder head breather hose
Throttle position sensor lead
Thermo switch lead
Fuel hose
Carburetor assembly
Starter cable
Throttle cables
Cover
1
1
1
1
1
1
1
1
2
1
Remove the parts in the order below.
Refer to “FUEL TANK AND SEATS” in
CHAPTER 3.
Disconnect
After removing the carburetor
assembly, remove the starter cable
and throttle cables.
For installation, reverse the removal pro-
cedure.
NOTE:
CARBURETOR
CARB
CARBURETION
CARBURETOR
