3-19
A B

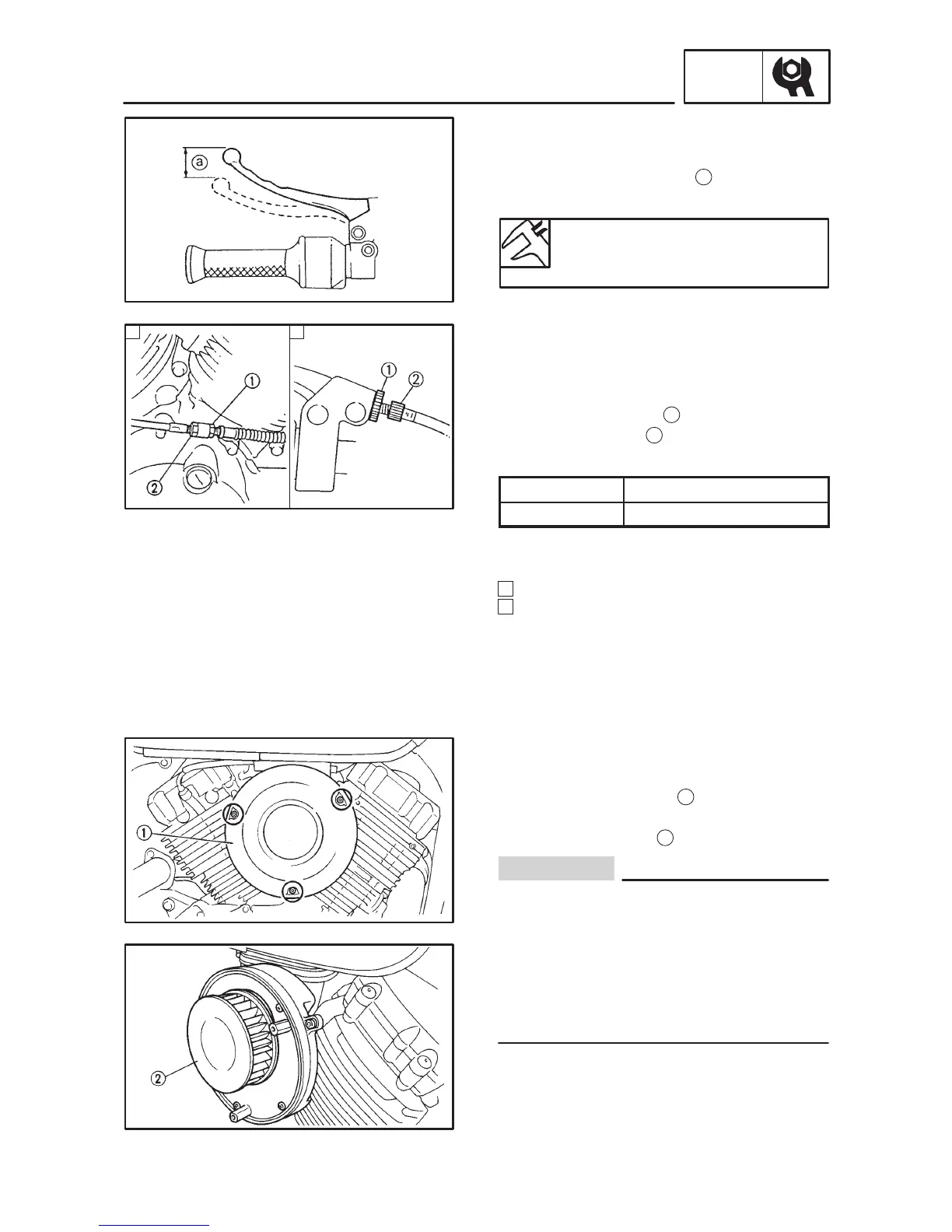

CLUTCH ADJUSTMENT/AIR FILTER CLEANING
INSP
ADJ
*****************************************************
*****************************************************
CAUTION:
EB303090
CLUTCH ADJUSTMENT
1. Check:
S Clutch cable free play
a
Out of specification Adjust.
Free play (clutch cable):
10 15 mm
At clutch lever end
2. Adjust:
S Clutch cable free play
Adjustment steps:
D Loosen the locknuts
1
.
D Turn the adjusters
2
in or out until the speci-
fied free play is obtained.
Turning in:
free play is increased.
Turning out: free play is decreased.
D Tighten the locknuts.
A
Handlebar end
B
Engine end
EB303120
AIR FILTER CLEANING
1. Remove:
S Air filter case cover
1
2. Remove:
S Air filter element
2
Never operate the engine without the air fil-
ter element installed. Unfiltered air will
cause rapid wear of engine parts and may
damage the engine. Operating the engine
without the filter element will also affect the
carburetor tuning, leading to poor engine
performance and possible overheating.
To Next Page
