4-71
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8

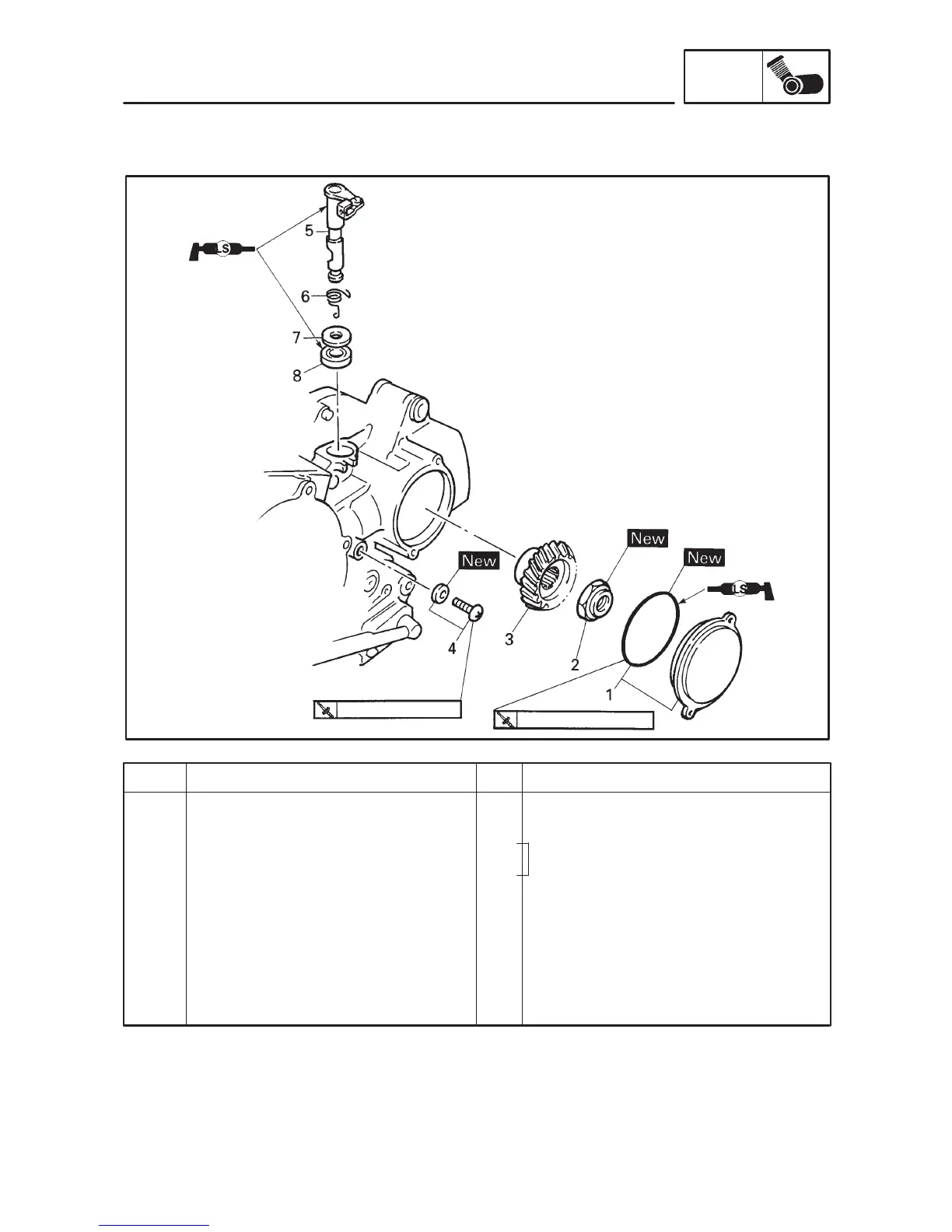

Middle drive pinion gear removal
Middle gear cover/O-ring
Nut
Middle drive pinion gear
Screw/gasket
Push lever axle
Torsion spring
Washer
Oil seal
1/1
1
1
1/1
1
1
1
1
Remove the parts in the order below.
Refer to “MIDDLE DRIVE PINION
GEAR REMOVAL/INSTALLATION”.
For installation, reverse the removal
procedure.
12 Nm (1.2 m kg)
120 Nm (12.0 m kg)
MIDDLE GEAR
ENG
MIDDLE DRIVE PINION GEAR
To Next Page
