SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly. Use only
the appropriate special tools; this will help prevent damage caused by the use of inappropriate tools or
improvised techniques. Special tools may differ by shape and part number from country to country. In
such a case, two types are provided.
When placing an order, refer to the list provided below to avoid any mistakes.

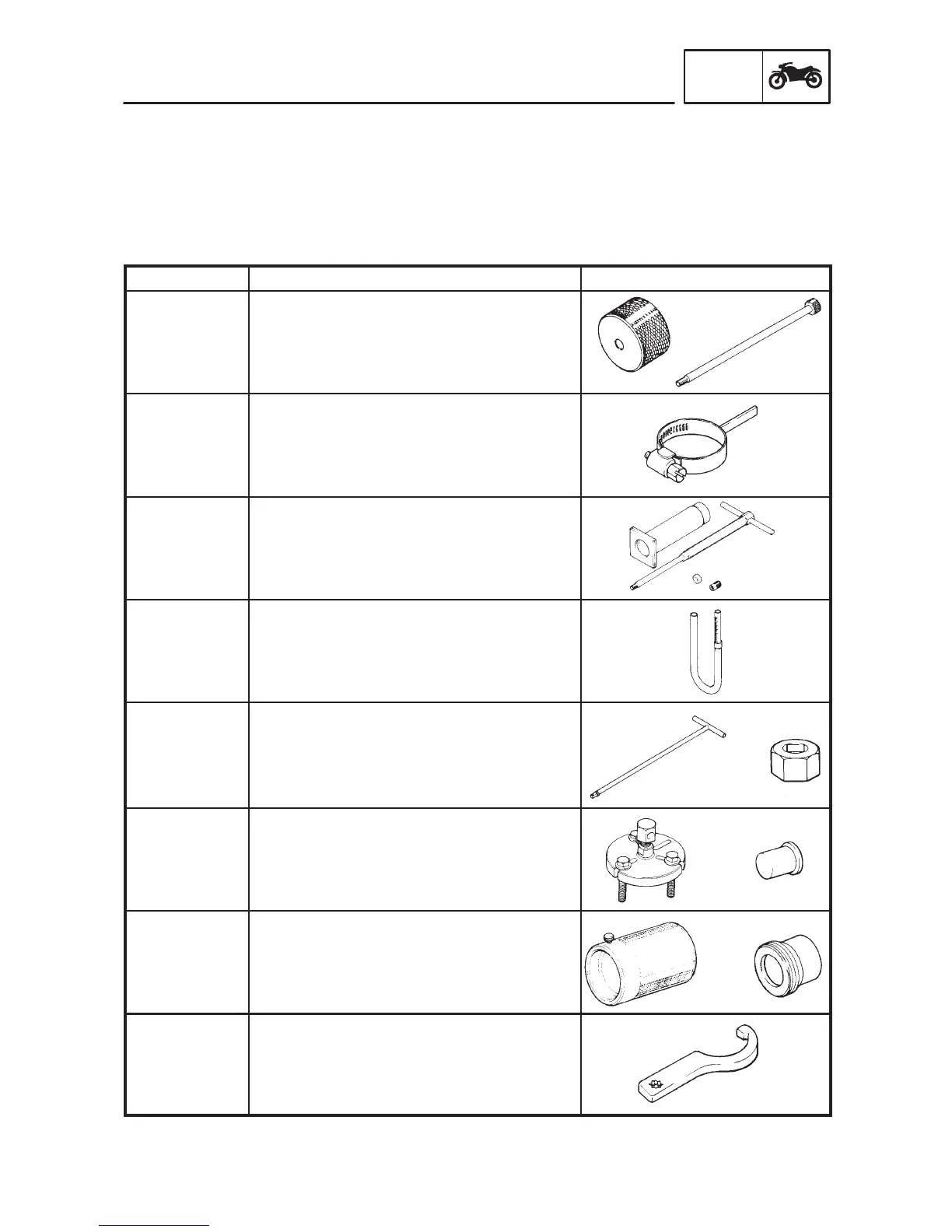

Tool No.
Tool name/How to use Illustration
Weight
90890-01084
Bolt
90890-01085
Slide hammer bolt/weight
These tools are used to remove the
rocker arm shaft.
90890-01231
Final gear backlash band
This tool is needed when measuring
final gear backlash.
90890-01304
Piston pin puller
This tool is used to remove the
piston pin.
90890-01312
Fuel level gauge
This gauge is used to measure the
fuel level in the float chamber.
T-handle
90890-01326
Holder
90890-01388
T-handle/damper rod holder
These tools are needed to loosen and
tighten the damper rod holding bolt.
Puller
90890-01362
Adapter
90890-04089
Flywheel puller/adapter
These tools are needed to remove
the rotor.
Weight
90890-01367
Adapter
90890-01381
Fork seal driver weight/adapter
These tools are needed when installing
the slide metal, oil seal and dust seal into
the fork.
90890-01403
Ring nut wrench
This tool is needed to loosen and tighten
the steering stem ring nut.
