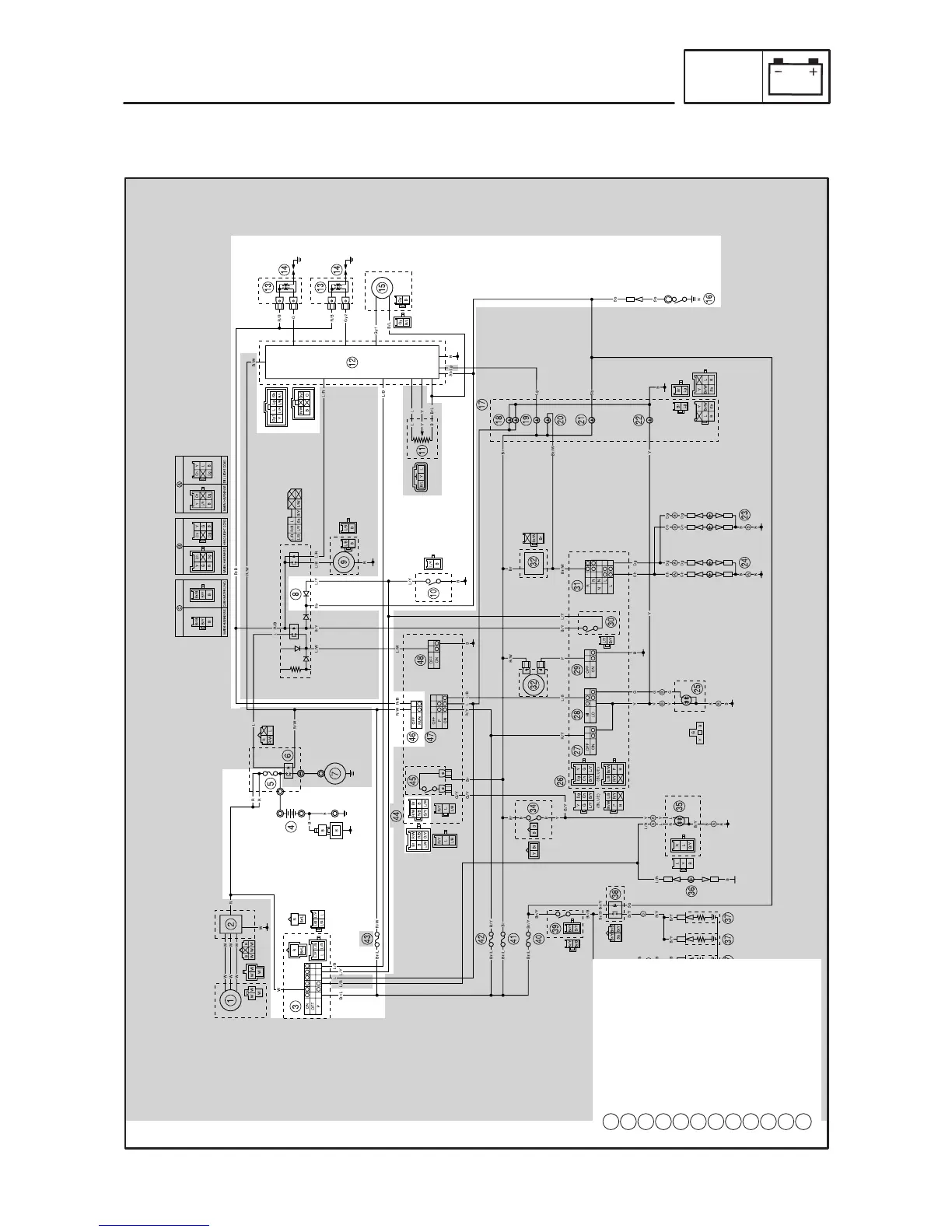

Yamaha XVS6501997 - Ignition System; Circuit Diagram

E
7-5
Main fuse
3 4 5 8
10 12 13 14
15
16 43 46
Main switch Battery Relay unit Sidestand switch Ignitor unit Ignition coil Spark plug Pickup coil Neutral switch Ignition fuse Engine stop switch
IGNITION SYSTEM
ELEC
EB802000
IGNITION SYSTEM
CIRCUIT DIAGRAM
