7-17
Order Job name/Part name Q’ty Remarks
1
2
Starter motor removal
Exhaust pipe assembly
Starter motor/O-ring
Starter motor lead
1/1
1
Remove the parts in the order below.
Refer to “ENGINE ASSEMBLY” in
CHAPTER 4.
1
2
3
4
5
6

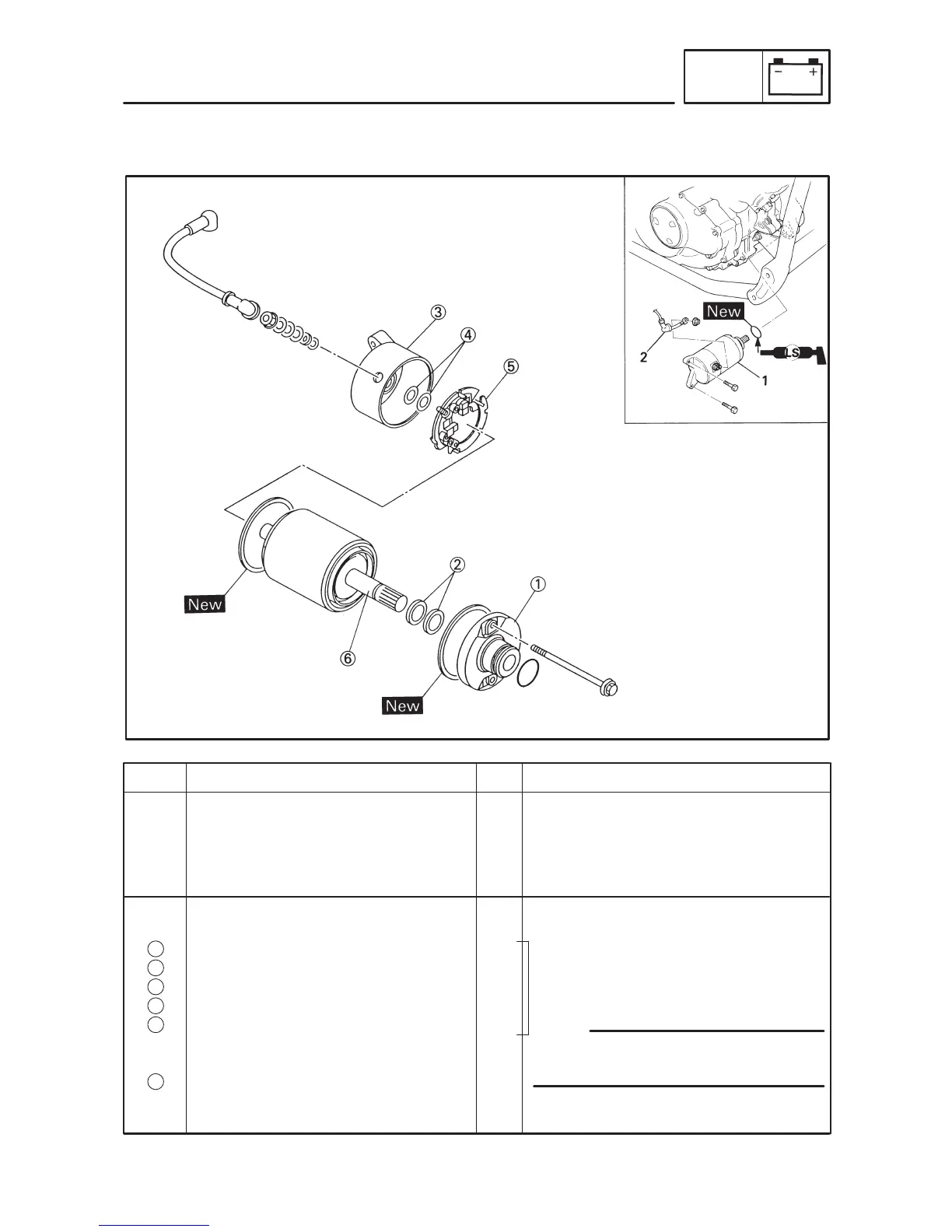

Starter motor disassembly
Front bracket
Washer kit
Rear bracket
Shims
Brush seat/Brush 1
Armature coil
1
1
2
1
1/1
1
Disassemble the parts in the order
below.
Refer to “STARTER MOTOR
ASSEMBLY”.
For assembly, reverse the disassembly
procedure.
Be sure to remove the installation nut on
brush #1 first.
NOTE:
ELECTRIC STARTING SYSTEM
ELEC
STARTER MOTOR
To Next Page
