6-58
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6

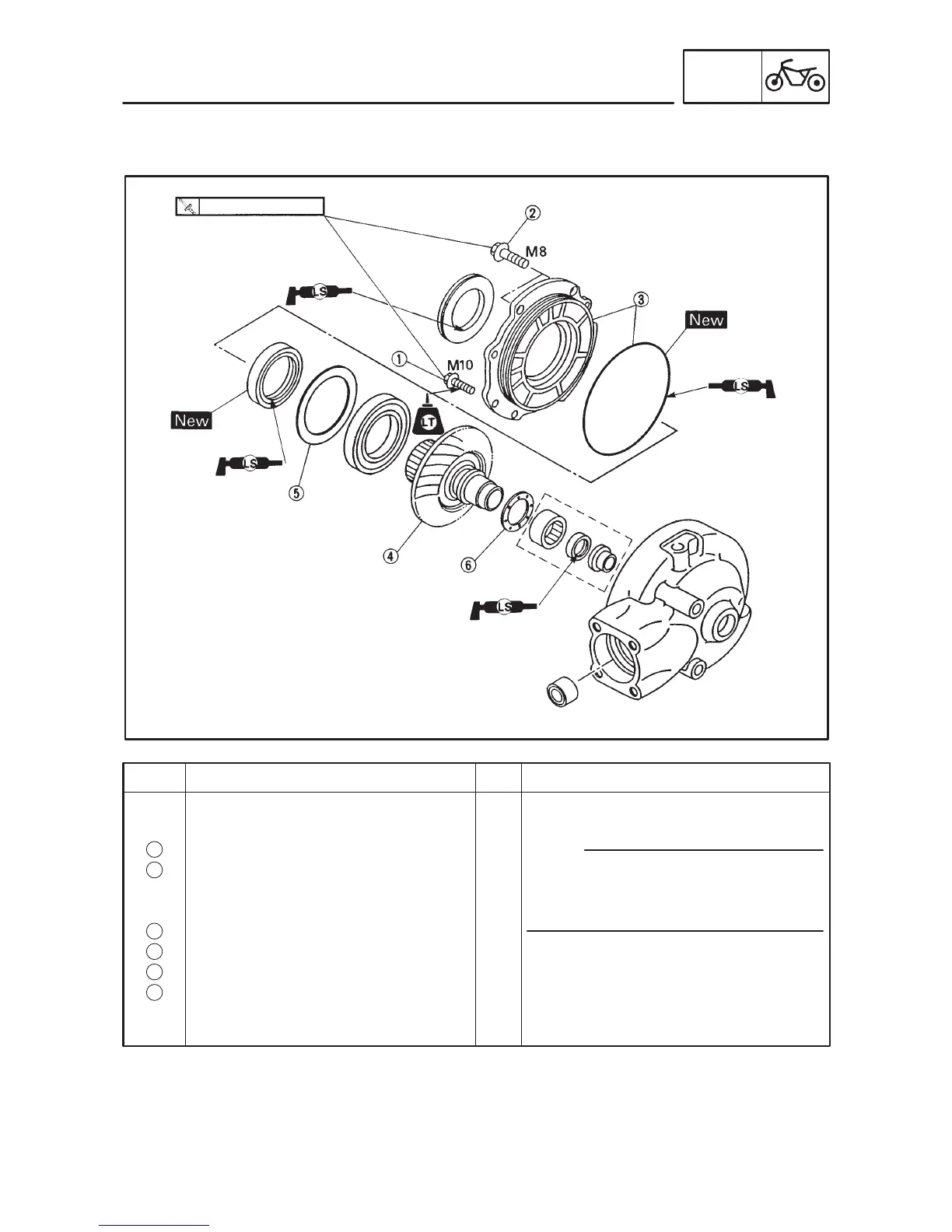

Final gear disassembly
Bolts (bearing housing)
Bolt (bearing housing)
Bearing housing/O-ring
Ring gear
Thrust washer
Shim(s)
2
6
1/1
1
1
1
Disassemble the parts in the order
below.
NOTE:
Working in a crisscross pattern, loosen
each bolt 1/4 of a turn. After all the bolts
are loosened, remove them.
For assembly, reverse the disassembly
procedure.
23 Nm (2.3 m kg)
SHAFT DRIVE
CHAS
FINAL GEAR
To Next Page
