Yamaha XVS6501997 - Final Gear Oil Level Inspection

3-28
SHIFT PEDAL ADJUSTMENT/
FINAL GEAR OIL LEVEL INSPECTION
INSP
ADJ
*****************************************************
*****************************************************
NOTE:
NOTE:
23 Nm (2.3 mSkg)

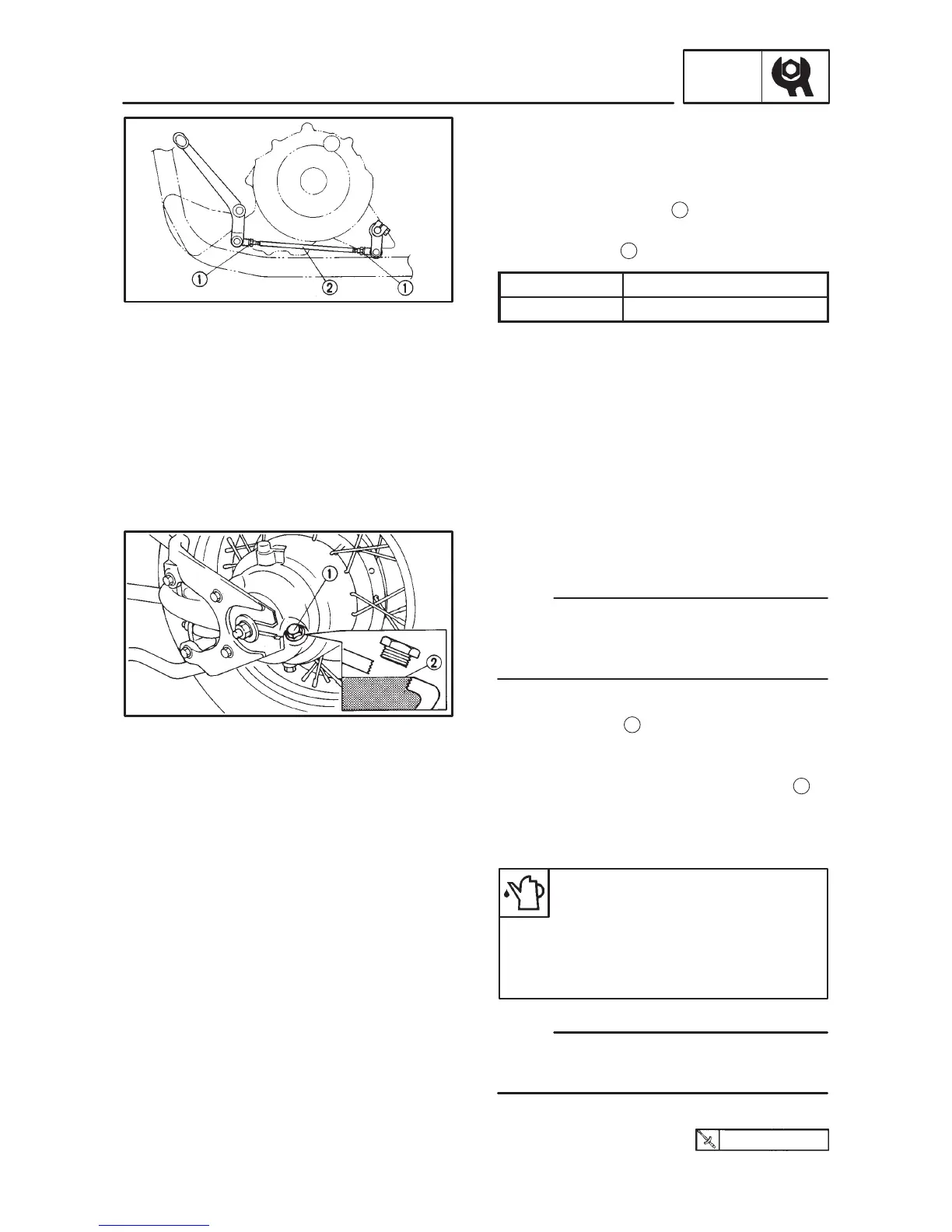

2. Adjust:
S Shift pedal position
Adjustment steps:
D Loosen both locknuts
1
.
D To obtain the correct pedal position turn the
shift pedal rod
2
in or out.
Turning in:
shift pedal is lowered.
Turning out: shift pedal is raised.
D Tighten both locknuts.
EB304110
FINAL GEAR OIL LEVEL INSPECTION
1. Stand the motorcycle on a level surface.
D When inspecting the final gear oil level, make
sure the motorcycle is upright.
D Place the motorcycle on a suitable stand.
2. Remove:
S Oil filler bolt
1
3. Inspect:
S Oil level
Oil level should be to the bottom brim
2
of
the hole.
Oil level is too low  Add oil to the proper
level.
Recommended oil:
SAE 80 API “GL-4” Hypoid
gear oil
If necessary an SAE 80W90
hypoid gear oil may be used
for all conditions.
“GL-4” is a quality and additive rating. “GL-5” or
“GL-6” rated hypoid gear oils may also be used.
4. Install:
S Oil filler bolt
