Yamaha XVS6501997 - Headlight Beam Adjustment; Headlight Bulb Replacement

3-44

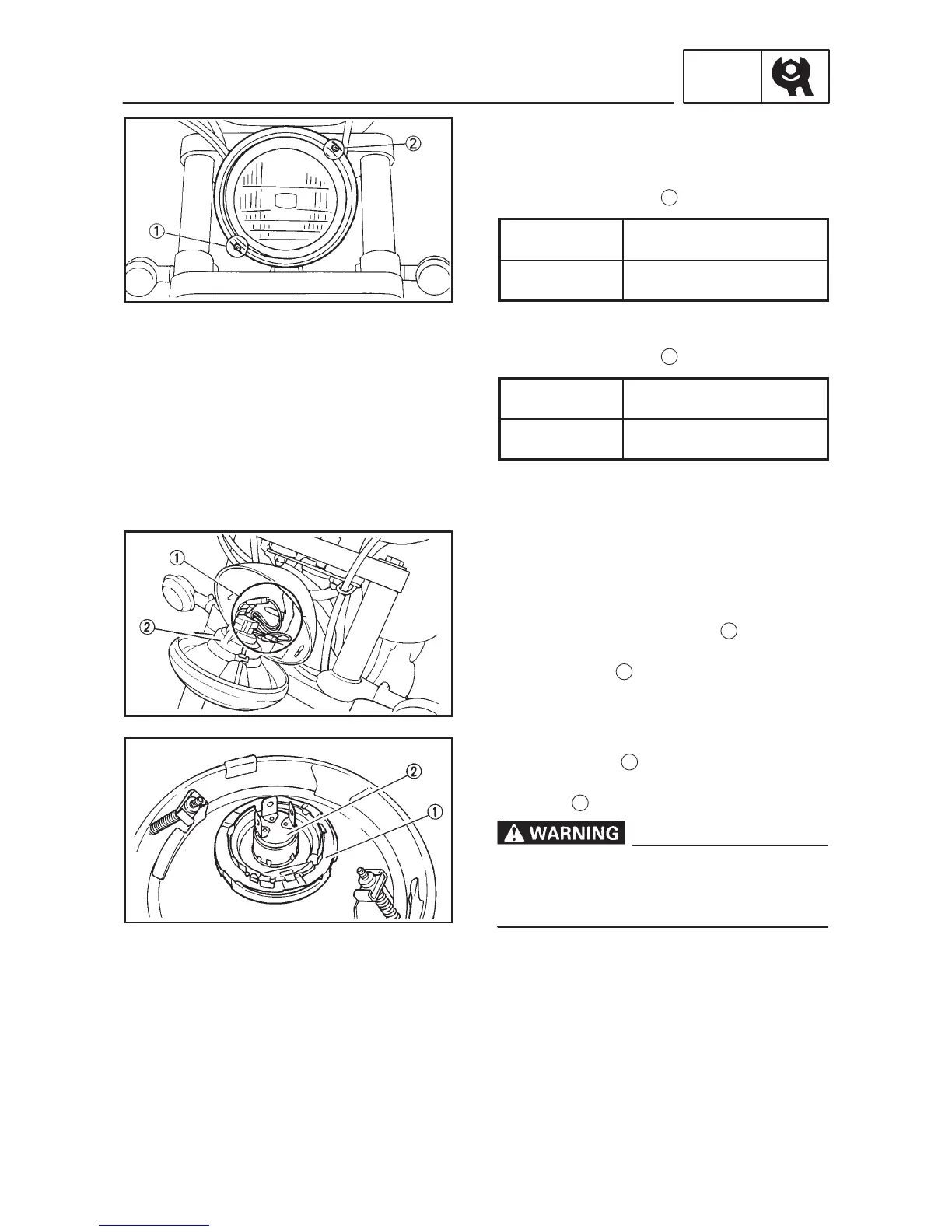

HEADLIGHT BEAM ADJUSTMENT/
HEADLIGHT BULB REPLACEMENT
INSP
ADJ
EB305020
HEADLIGHT BEAM ADJUSTMENT
1. Adjust:
 Headlight beam (vertically)
Turn the adjuster
1
in or out.
Turning in: headlight beam is raised.
Turning out: headlight beam is lowered.
2. Adjust:
 Headlight beam (horizontally)
Turn the adjuster
2
in or out.
Turning in: headlight beam to the left.
Turning out: headlight beam to the right.
EB305030
HEADLIGHT BULB REPLACEMENT
1. Remove:
 Headlight lens unit
2. Disconnect:
 Leads (in headlight body)
1
3. Remove:
 Bulb cover
2
4. Unhook:
 Bulb holder
1
5. Remove:
 Bulb
2
Since the bulb may be hot, keep flammable
products and your hands away from it. Do
not touch the bulb until it has cooled down.
6. Install:
 Bulb (new)
Secure the new bulb with the bulb holder.
