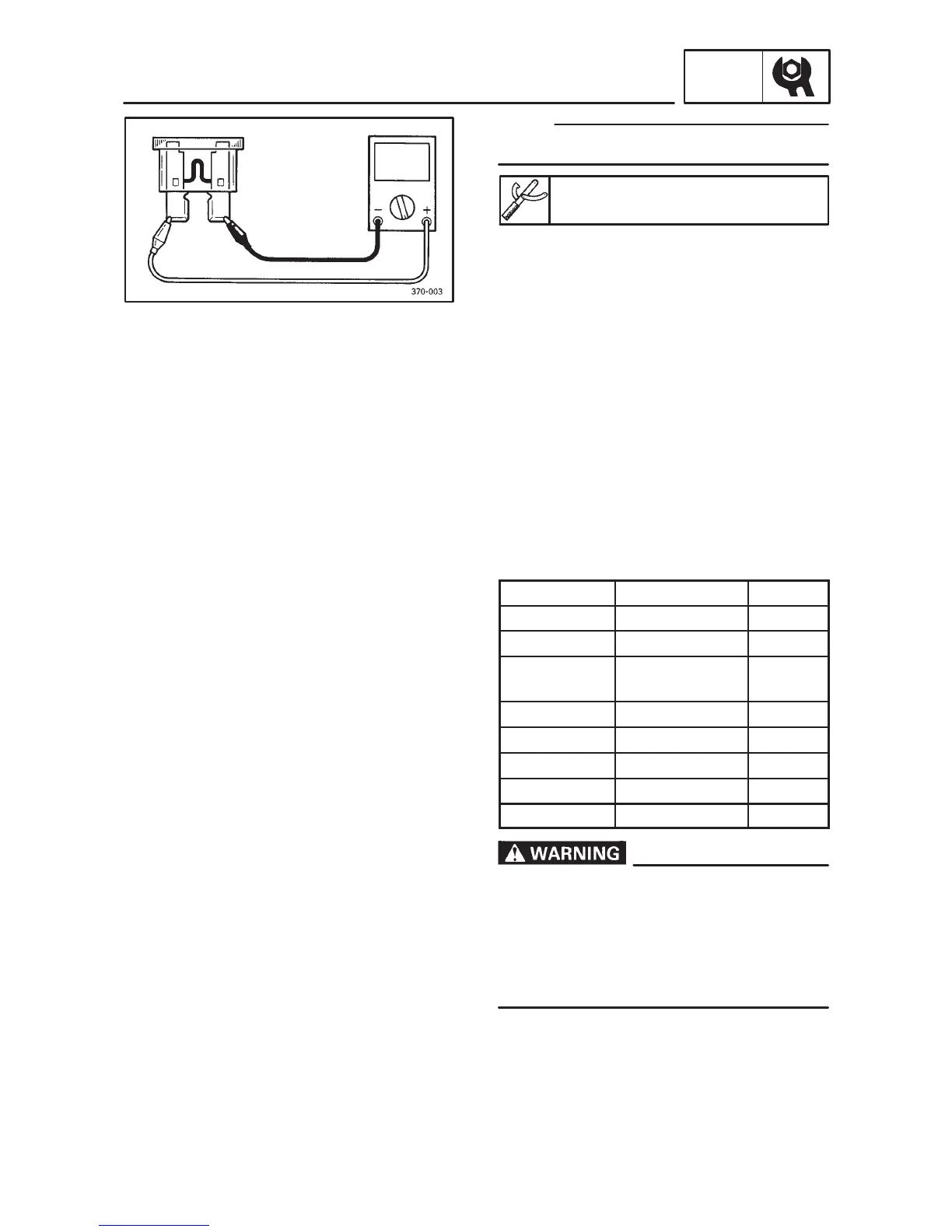

FUSE INSPECTION
INSP
ADJ
NOTE:
*************************************
*****************************************************
*****************************************************
Set the tester selector to “Ω 1”.
Pocket tester:
90890-03112
D If the tester indicates ∞, replace the fuse.
3. Replace:
S Blown fuse
Replacement steps:
D Turn off the main switch.
D Install a new fuse with the proper current rat-
ing.
D Turn on switches to verify operation of related
electrical devices.
D If the fuse blows again, immediately check
the electrical circuit.
Description
Current rating Quantity
Main 30A 1
Headlight 15A 1
Carburetor
heater
15A 1
Signals 10A 1
Ignition 10A 1
Reserve 30A 1
Reserve 15A 1
Reserve 10A 1
Never use a fuse with a rating other than that
specified. Never use other materials in place
of a fuse. An improper fuse may cause ex-
tensive damage to the electrical system, a
malfunction of the lighting and ignition sys-
tems and could possibly cause a fire.
4. Install:
S Battery cover
