Yamaha XVS6501997 - Oil Pump Inspection

4-47
OIL PUMP
ENG

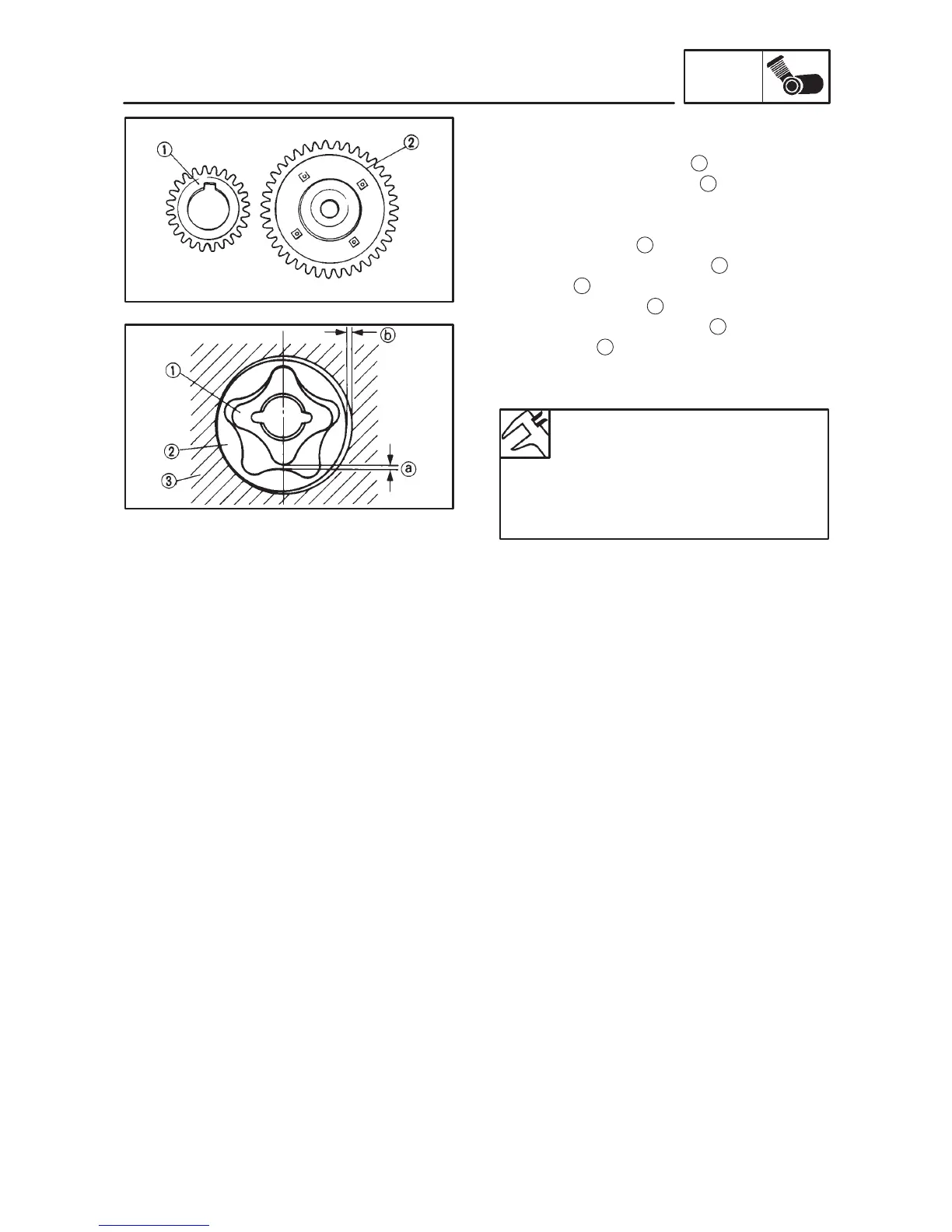

OIL PUMP INSPECTION
1. Inspect:
 Drive gear (oil pump)
1
 Driven gear (oil pump)
2
Cracks/wear/damage  Replace.
2. Measure:
 Tip clearance
a
(between the inner rotor
1
and the outer
rotor
2
)
 Side clearance
b
(between the outer rotor
2
and the pump
housing
3
)
Out of specification  Replace the oil
pump assembly.
Tip clearance:
0.12 mm
<Limit>: 0.2 mm
Side clearance:
0.03  0.08 mm
<Limit>: 0.15 mm
3. Check:
 Oil pump operation
Unsmooth operation  Replace.
