Yamaha XVS6501997 - Page 150

4-46
For assembly, reverse the disassembly
procedure.
Order Job name/Part name Q’ty Remarks

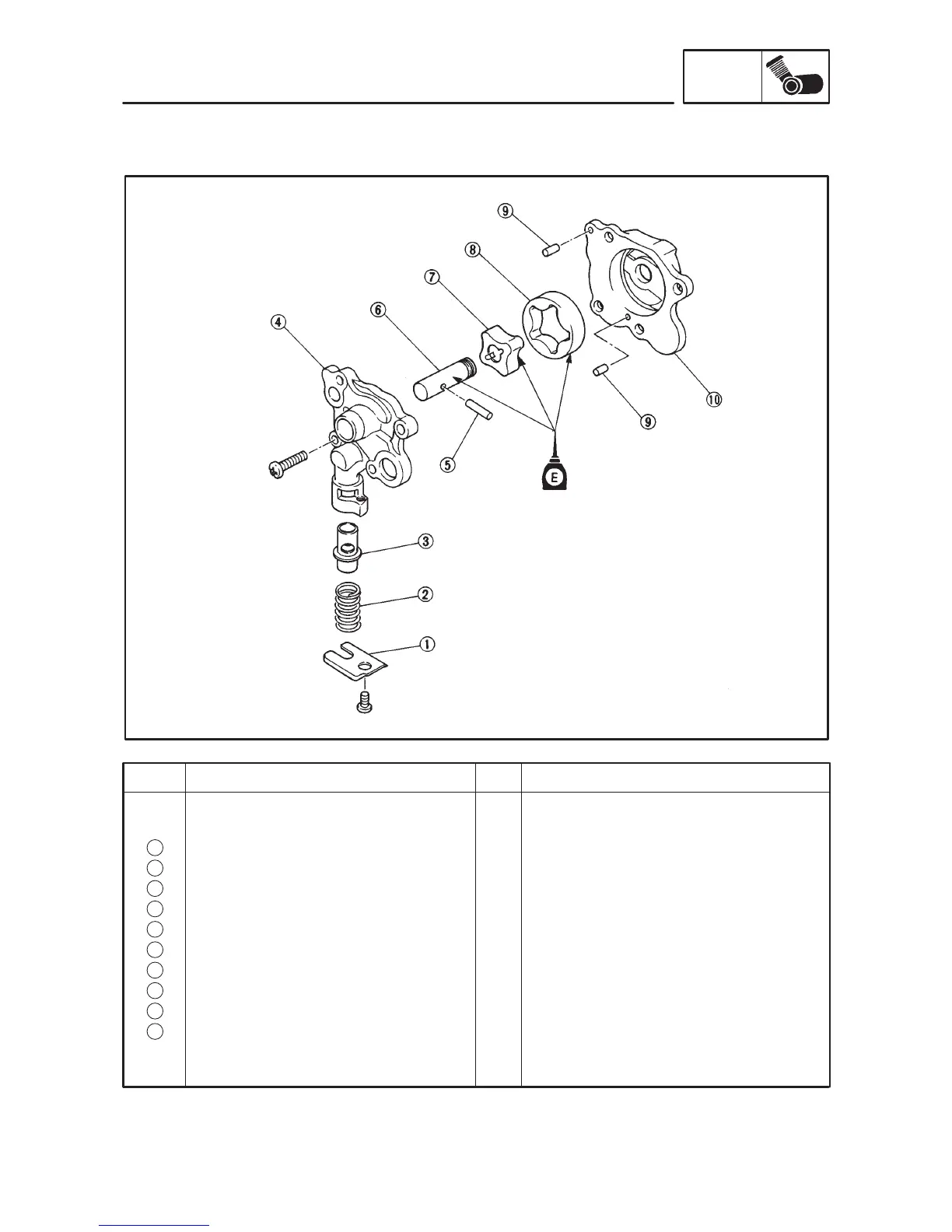

Oil pump disassembly
Spring retainer
Spring
Relief valve
Oil pump cover
Pin
Shaft
Inner rotor
Outer rotor
Dowel pins
Oil pump housing
1
1
1
1
1
1
1
1
2
1
Disassembly the parts in the order
below.
1
2
3
4
5
6
7
8
9
10
OIL PUMP
ENG
