6-46
Order Job name/Part name Q’ty Remarks
1
2

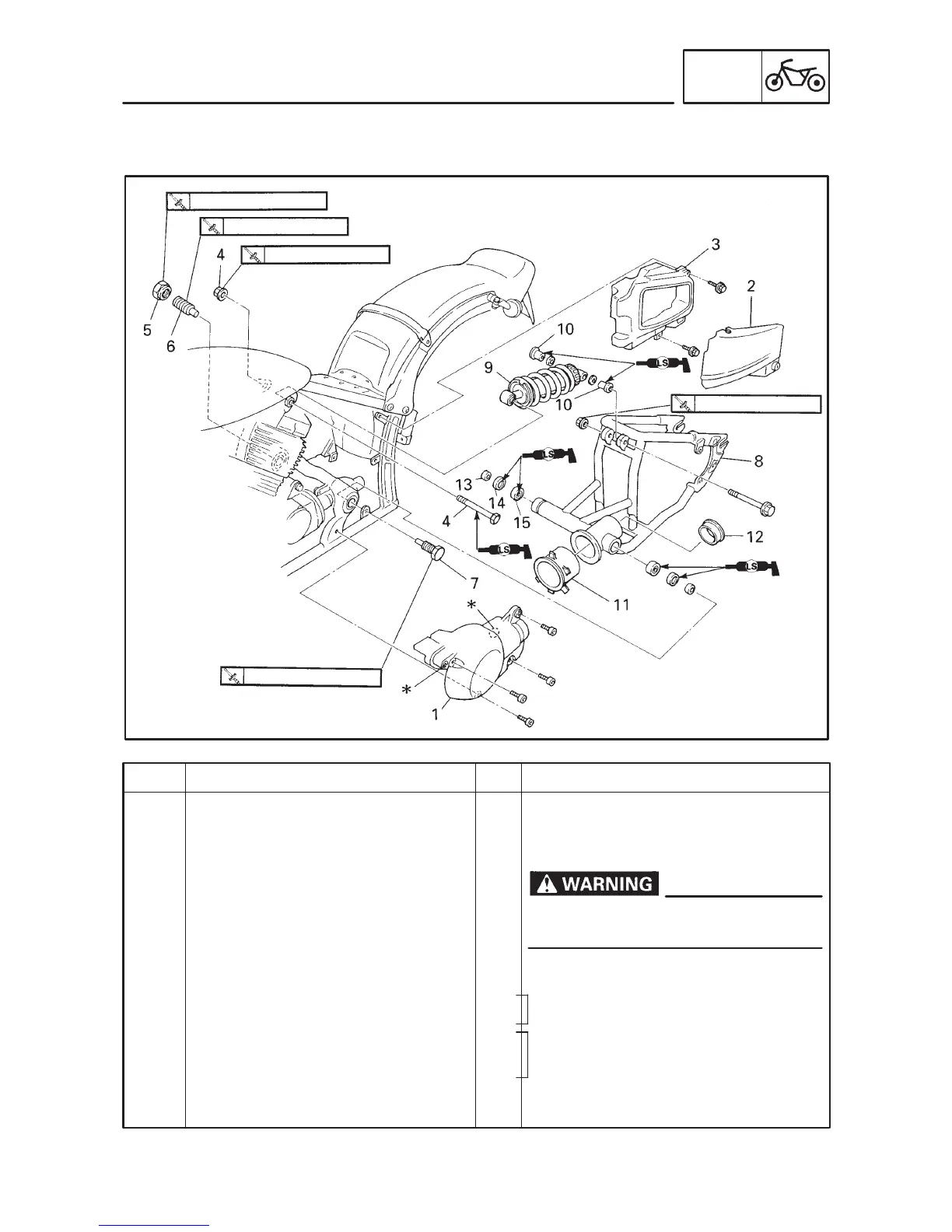

Rear shock absorber and swingarm
removal
Seats
Rear wheel
Final gear case
Muffler assembly
Battery cover
Side cover (right)
Side cover (left)
Tool box cover
1
1
Remove the parts in the order below.
Stand the motorcycle on a level surface.
Securely support the motorcycle so
there is no danger of it falling over.
Refer to “FUEL TANK AND SEATS” in
CHAPTER 3.
Refer to “REAR WHEEL”.
Refer to “ENGINE REMOVAL” in
CHAPTER 4.
Do not remove the “*”bolts.
100 Nm (10.0 m kg)
7 Nm (0.7 m kg)
62 Nm (6.2 m kg)
62 Nm (6.2 m kg)
100 Nm (10.0 m kg)
REAR SHOCK ABSORBER AND SWINGARM
CHAS
REAR SHOCK ABSORBER AND SWINGARM
To Next Page
