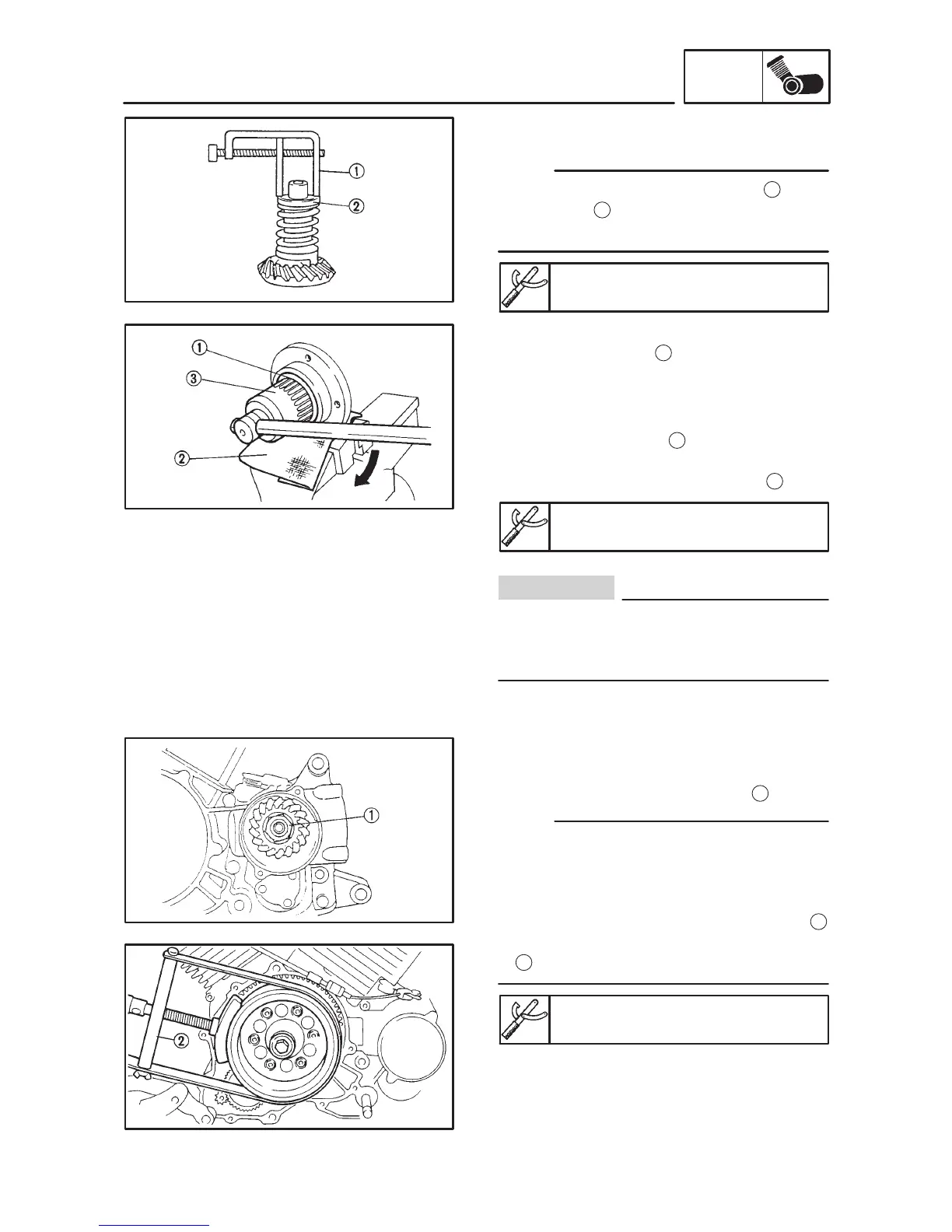

MIDDLE GEAR
ENG
NOTE:
*****************************************************
CAUTION:
*****************************************************
NOTE:
4. Remove:
 Spring retainers
Attach the damper spring compressor
1
on the
spring seat
2
and compress the damper
spring, then remove the spring retainers.
Damper spring compressor:
90890-04090
5. Remove:
 Bearing retainer
1
 Bearing
Removal steps:
 Attach the folded rag
2
.
 Secure the bearing housing edge in the vise.
 Attach the bearing retainer wrench
3
.
Bearing retainer wrench:
90890-04057
The middle driven shaft bearing retainer has
left-handed threads. To loosen the retainer
turn it clockwise.
 Remove the bearing retainer and bearing.
MIDDLE DRIVE PINION GEAR REMOVAL
1. Loosen:
 Nut (middle drive pinion gear)
1
 Flatten the punched position of the middle
drive pinion gear nut using the drift punch.
 Put the engine in 1st, and carry out the opera-
tion.
 Loosen the nut (middle drive pinion gear)
1
while holding the rotor with the sheave holder
2
.
Sheave holder:
90890-01701
