GENERAL TORQUE SPECIFICATIONS
SPEC
EB202001
GENERAL TORQUE
SPECIFICATIONS

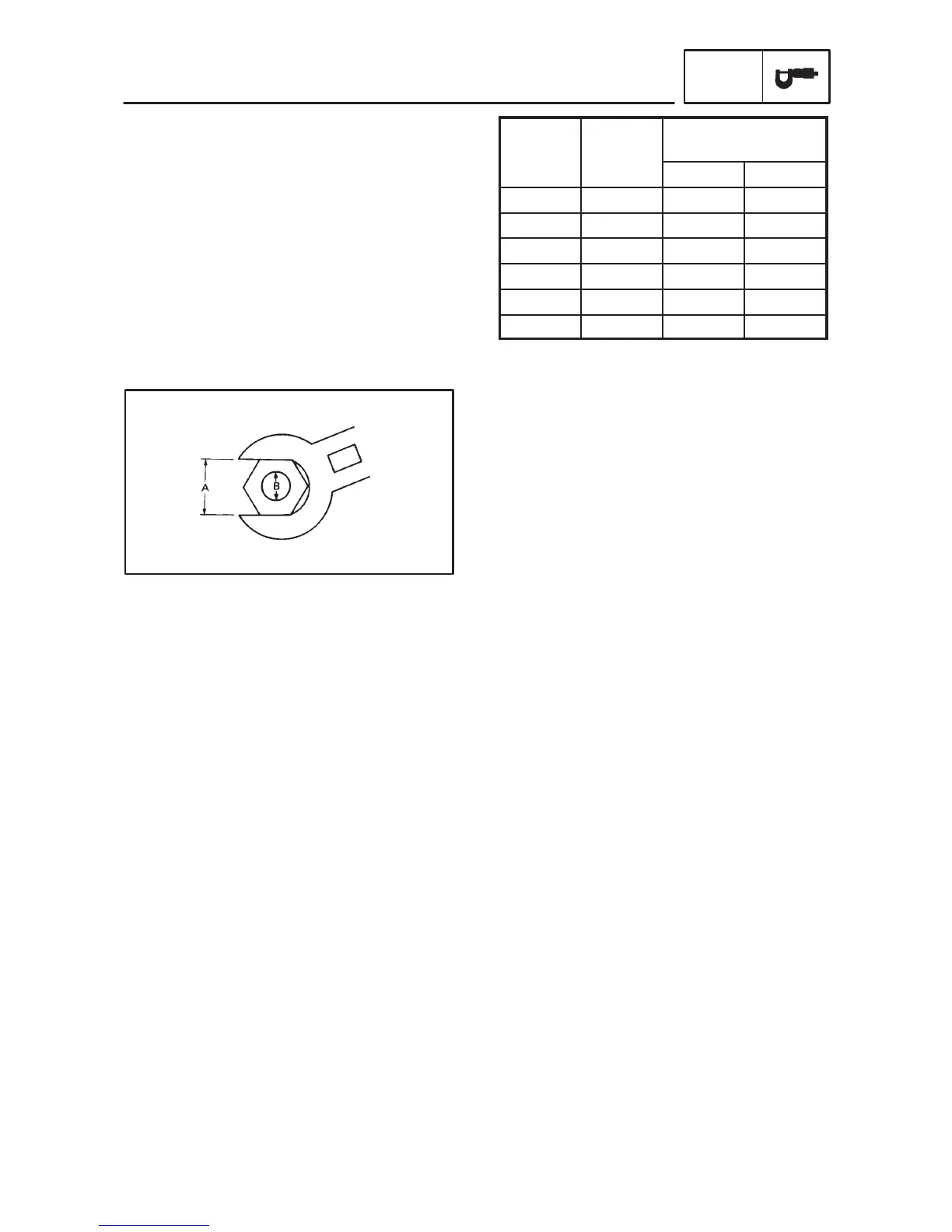

This chart specifies torque for standard fasten-
ers with standard I.S.O. pitch threads. Torque
specifications for special components or as-
semblies are provided for each chapter of this
manual. To avoid warpage, tighten multi-fasten-
er assemblies in a crisscross fashion, in pro-
gressive stages, until the specified torque is
reached. Unless otherwise specified, torque
specifications require clean, dry threads. Com-
ponents should be at room temperature.
A: Distance between flats
B: Outside thread diameter
A
(nut)
B
(Bolt)
General torque
specifications
(nut)
(Bolt)
Nm mSkg
10 mm 6 mm 6 0.6
12 mm 8 mm 15 1.5
14 mm 10 mm 30 3.0
17 mm 12 mm 55 5.5
19 mm 14 mm 85 8.5
22 mm 16 mm 130 13.0
