Yamaha XVS6501997 - Page 190

5-2
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12

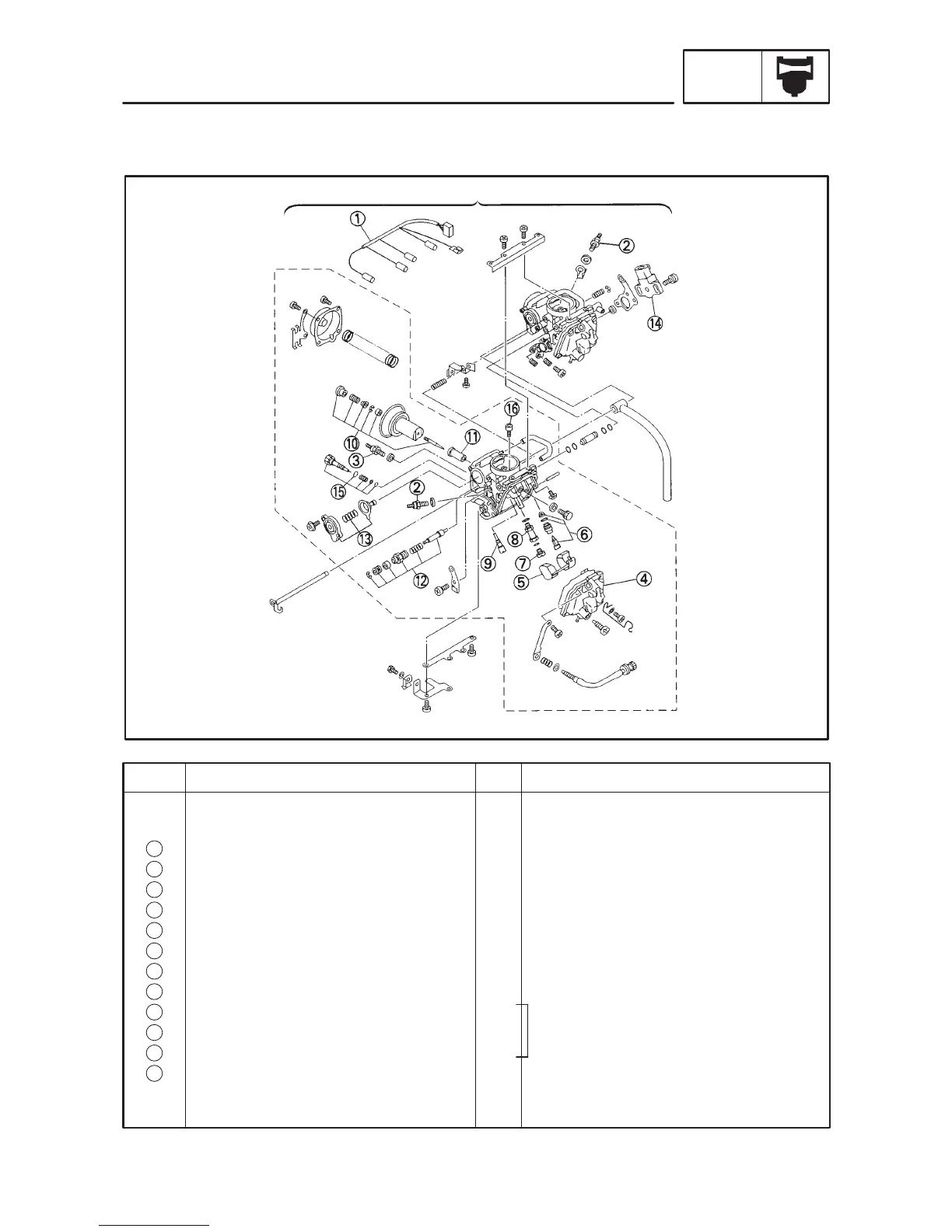

Carburetor disassembly
Carburetor heater lead
Carburetor heaters 1
Carburetor heaters 2
Float chamber
Float
Needle valve set
Main jet
Jet holder
Pilot jet
Jet needle set
Needle jet
Starter plunger set
1
2
2
1
1
1
1
1
1
1
1
1
Disassemble the parts in the order
below.
12V 15W
12V 30W
Refer to “CARBURETOR
ASSEMBLY”.
CARBURETOR
CARB
