7-23
S Start the engine and accelerate to about
5,000 r/min.
OUT OF
SPECIFICATION
MEETS SPECIFICATION
NOTE:
Charging voltage:
14 V at 5,000 r/min
Use a fully charged battery.
EB804012

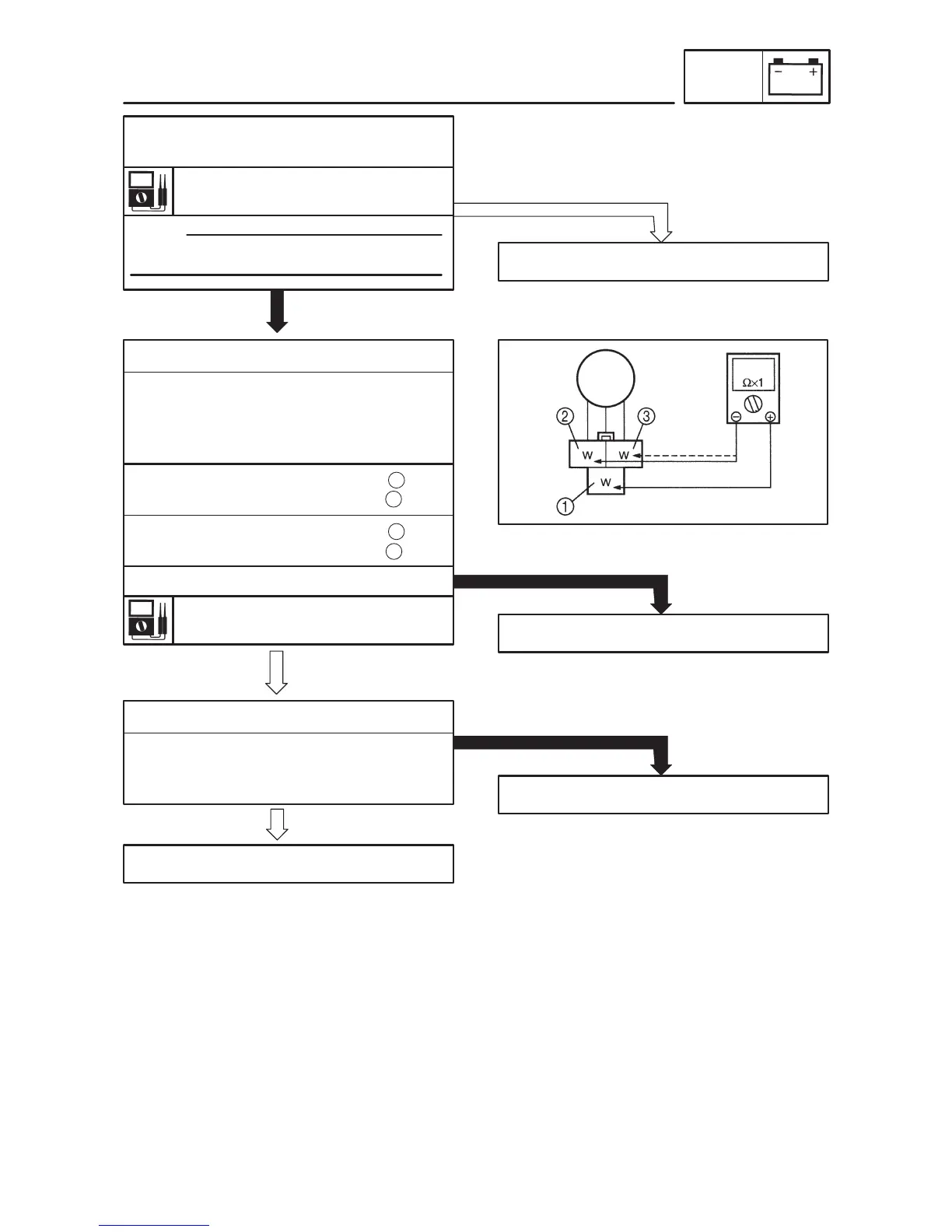

4. Stator coil resistance
S Disconnect the AC magneto coupler from
the wire harness.
S Connect the pocket tester (Ω 1) to the sta-
tor coils.
S Measure the stator coil resistance.
Replace the stator coil assembly.
OUT OF SPECIFICATION
Tester (+) lead White terminal
Tester (–) lead White terminal
Stator coil resistance:
0.50 X 0.62 Ω at 20_C
BOTH MEET
SPECIFICATION
EB804015
5. Wiring connections
S Check the connections of the entire charg-
ing system.
Refer to “CIRCUIT DIAGRAM”.
POOR CONNECTION
CORRECT
Properly connect the charging system.
Replace the rectifier/regulator.
Tester (+) lead White terminal
Tester (–) lead White terminal
The charging circuit is not faulty.
1
2
3
1
CHARGING SYSTEM
ELEC
