5 215IF Module
5.7.3 Specifications Common to All CP-215 Repeaters
5-48

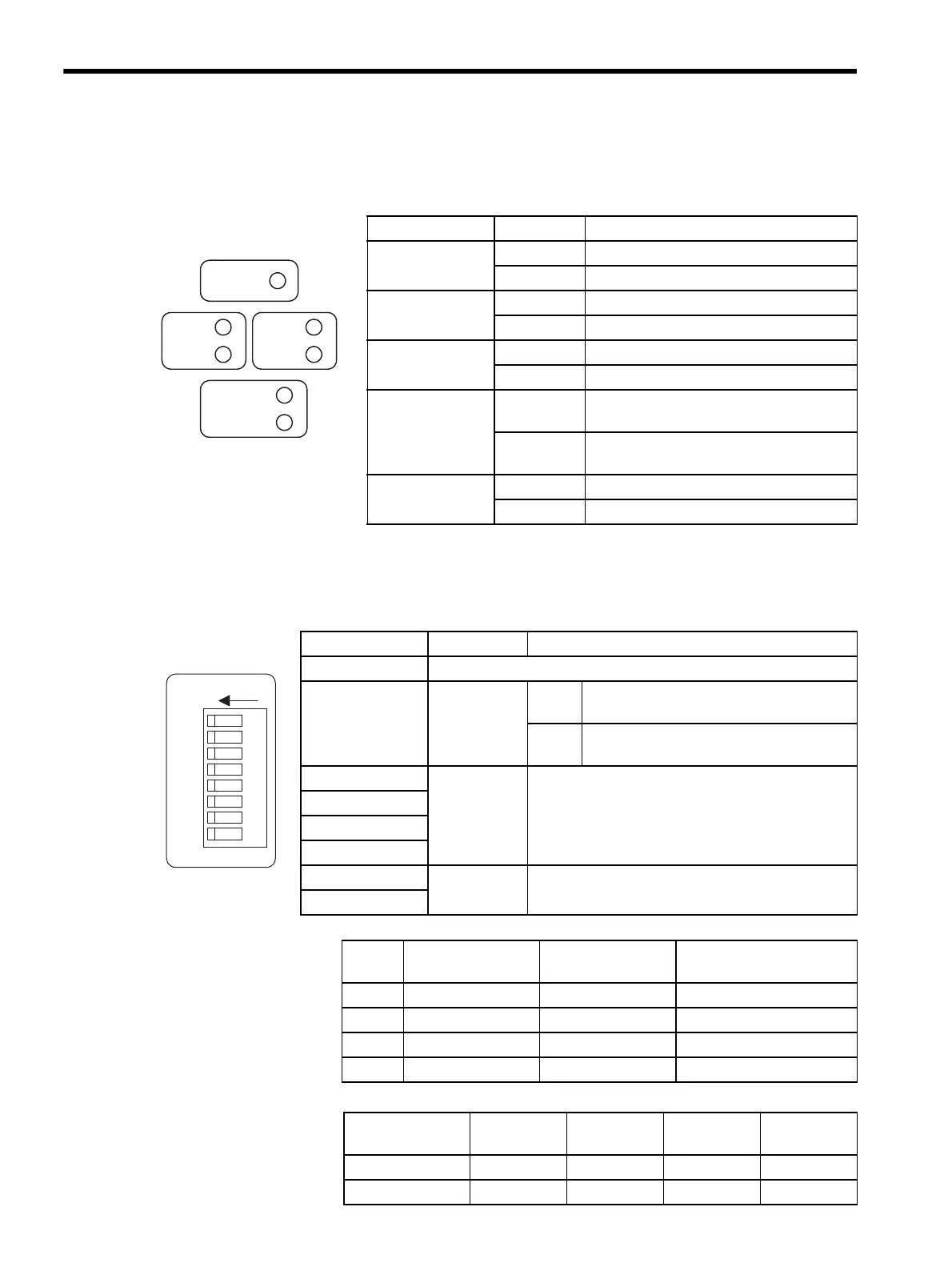

Indicators
The CP-215 Repeater-TT displays the operating status using the following indicators.
Setting Switch
Operating Mode Setting Switch (SW1)
* 1. 215/216 Mode Switching
* 2. Transmission Speed
Terminal Name Status Description
POWER Lit Power is turned ON.
Not lit Power is turned OFF.
ARX
BRX
Lit Port is receiving data.
Not lit Port is not receiving data.
ATX
BTX
Lit Port is sending data.
Not lit Port is not sending data.
ON-LINE Lit Repeater is operating.
(DI input or SW1-7 is ON.)
Not lit Repeater is on standby.
(DI input and pin 7 of SW1 are OFF.)
RUN Lit Reception line is normal.
Not lit Reception line is abnormal.
POWER
ARX
ATX
BRX
BTX
ON-LINE
RUN
Terminal Name Pin Name Setting
X1 Not used.
OL Dual Mode ON Can operate when Dual switching DI input is
OFF.
OFF Can operate when Dual switching DI input is
ON.
M1 215/216 Mode
Switching
See Table
*1
below.
M2
M3
M4
S1 Transmission
Speed
See Table
*2
below.
S0
X1
OL
M1
M2
M3
M4
S1
S0
ON
8 7 6 5 4 3 2
1
CP-215
Communications
CP-216
Communications
Setting Disabled
M1
ON ON OFF
M2
ON ON OFF
M3
ON OFF -
M4
ON OFF -
Transmission
Speed
1 Mbps 2 Mbps 4 Mbps Invalid
S1
OFF ON ON OFF
S0
ON OFF ON OFF
To Next Page
